Bosch Rexroth R081010002

TOLERANCE RING AN100X19

MPN: R081010002
Category: Accessories for ball transfer units

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R081010002?

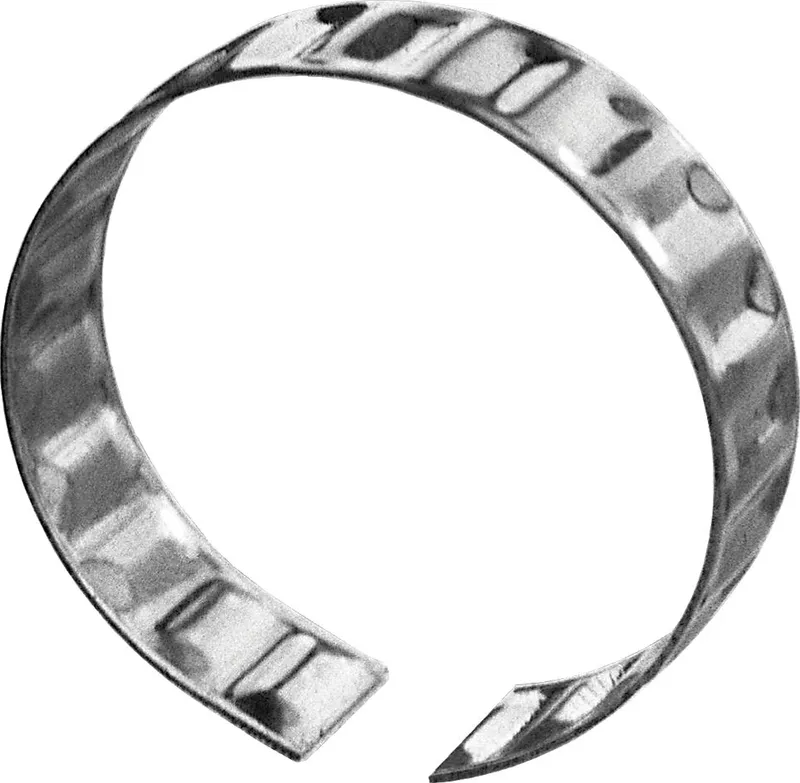

Tolerance ring

Type AN: The circumferential flat edges are located on the outer diameter of the tolerance ring. For use with a standard nominal shaft.

Tolerance ring diameter (d) = 100

Tolerance ring width (b) = 19

Carbon steel

Quick, economic installation

Compensates the differences in thermal expansion between machine elements made of different materials

Eliminates the need for keyways or other positive-locking connections

Connecting parts have a simple design

High temperature stability

Special sizes available on request

Extremely low-cost machine element

Resistant to various types of chemical stress

Fixed and secure connection of machine parts

Large tolerance zone with connecting parts

Specifications

Nominal size [mm]	100 x 19
Transferable torque [Nm]	1050
Permissible radial load [N]	30000
Weight [kg]	0.03
Material footnote	Up to 200°C continuous temperature, brief peaks up to 250°C
Dimension b [mm]	19
Dimension d [mm]	100
