Bosch Rexroth R081004501

TOLERANCE RING AN45X12

MPN: R081004501
Category: Accessories for ball transfer units

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R081004501?

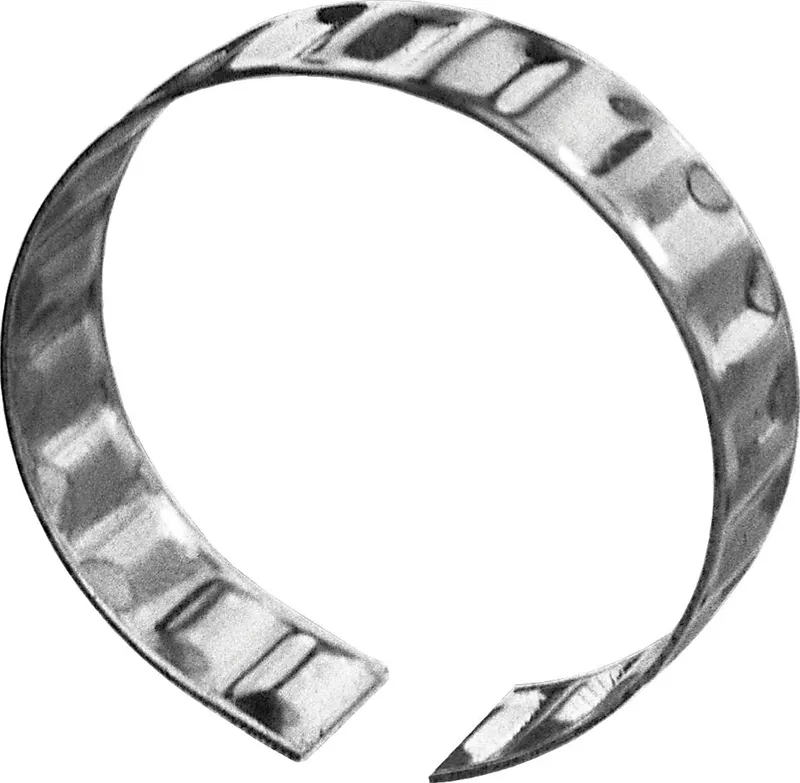

Tolerance ring

Type AN: The circumferential flat edges are located on the outer diameter of the tolerance ring. For use with a standard nominal shaft.

Tolerance ring diameter (d) = 45

Tolerance ring width (b) = 12

Carbon steel

Quick, economic installation

Compensates the differences in thermal expansion between machine elements made of different materials

Eliminates the need for keyways or other positive-locking connections

Connecting parts have a simple design

High temperature stability

Special sizes available on request

Extremely low-cost machine element

Resistant to various types of chemical stress

Fixed and secure connection of machine parts

Large tolerance zone with connecting parts

Specifications

Nominal size [mm]	45 x 12
Transferable torque [Nm]	90
Permissible radial load [N]	11000
Weight [kg]	0.01
Material footnote	Up to 200°C continuous temperature, brief peaks up to 250°C
Dimension b [mm]	12
Dimension d [mm]	45
