Bosch Rexroth R073303000

SUPER LINEAR BUSHING KBH-O-30

MPN: R073303000
Category: Linear bushings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

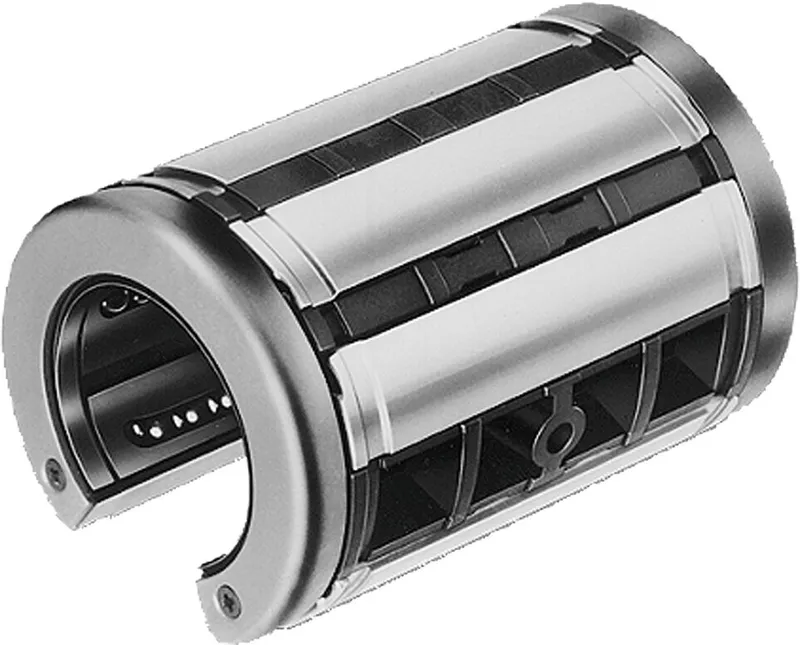

What is the Bosch Rexroth R073303000?

Super linear bushing

Super H

Open

Shaft diameter d = 30

Without seal

High-precision linear bushing for moving heavy loads

Hardened steel load-bearing plates with machined ball guide grooves and machined steel load-bearing plate back for maximum precision

With more tracks than super A

Compensates for shaft deflection and misalignment up to 30'

High travel speed (5 m/s)

Optional integrated, double-lipped wiper seals

With longitudinal seal

POM ball retainer

Balls made of rolling bearing steel

Two metal holding rings

Specifications

Shaft diameter d [mm]	30.0
Version	Standard
Format of linear bushings	O - Open
Series	Super H
Type	Linear bushing
Seal	Without wiper seals
Lubrication	Not lubricated
Dynamic load capacity C [N]	6300.0
Note: dynamic load capacity C	The load capacities apply for the main direction of loading.
Maximum acceleration rate amax [m/s²]	150.0
Maximum permissible linear speed vmax [m/s]	5.0
Length of linear bushing [mm]	68.0
Outer diameter D [mm]	47.0
Permissible ambient temperature (min. ... max.)	-20 °C ... +80 °C
Friction coefficient μ	0.001 ... 0.004
Note: friction coefficient μ	Friction coefficients of unsealed linear bushings when lubricated with oil. The friction coefficient is lowest under heavy load, but can still be above the specified value even under a low load.
Weight [kg]	0.18
Static load capacity C0 [N]	5230.0
Note: static load capacity C0	The load capacities apply for the main direction of loading.
Footnote breakaway force	One wiper seal: Multiply value with factor 0.5
Footnote friction force FR	One wiper seal: Multiply value with factor 0.5
Breakaway force [N]	9

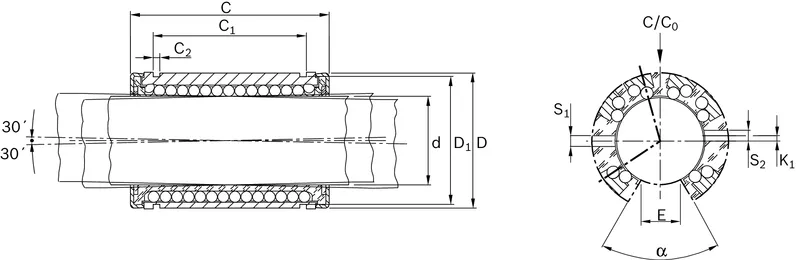

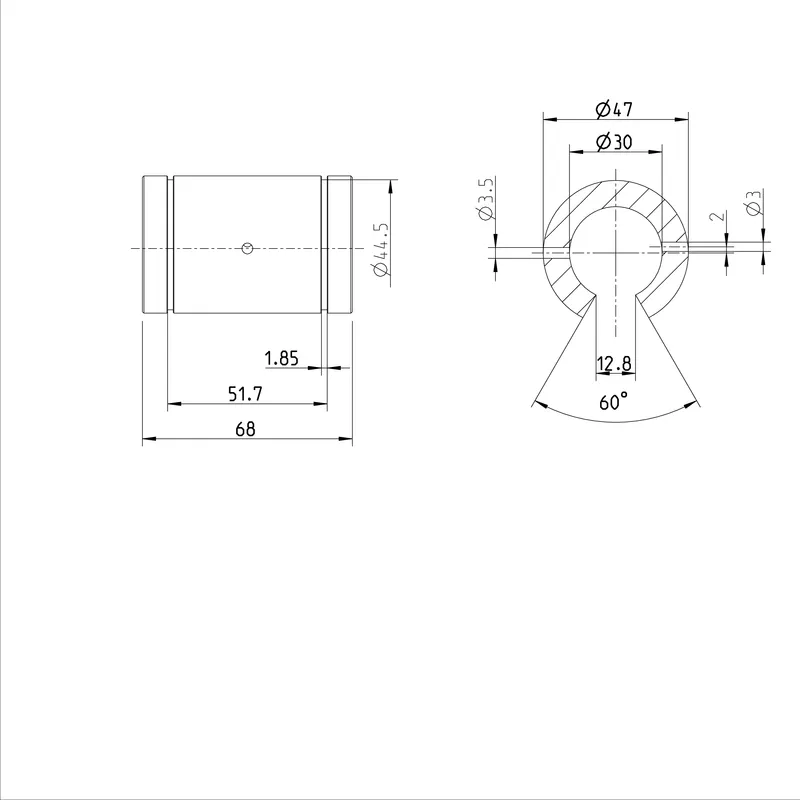

Dimension C h13 [mm]	68
Dimension C1 H13 [mm]	51.7
Dimension C2 [mm]	1.85
Dimension D [mm]	47
Dimension D1 [mm]	44.5
Dimension E [mm]	12.8
Dimension S1 (profiled rail systems) [mm]	3.5
Dimension S2 [mm]	3
Footnote Dimension E	Lower limit relative to shaft Ø d
Angle α [°]	60
