Bosch Rexroth R073205000
SUPER LINEAR BUSHING KBH-50
- MPN
- R073205000
- Category
- Linear bushings
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

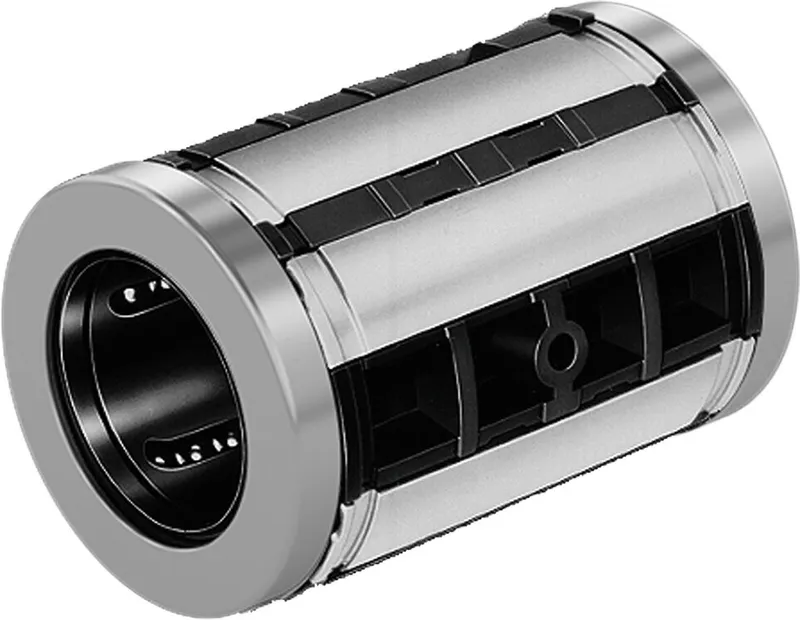

What is the Bosch Rexroth R073205000?
Super linear bushing
Super H
Closed
Shaft diameter d = 50
Without seal
High-precision linear bushing for moving heavy loads
Hardened steel load-bearing plates with machined ball guide grooves and machined steel load-bearing plate back for maximum precision
With more tracks than super A
Compensates for shaft deflection and misalignment up to 30'
High travel speed (5 m/s)
Optional integrated, double-lipped wiper seals
POM ball retainer
Balls made of rolling bearing steel
Two metal holding rings
Specifications
Specifications
| Shaft diameter d [mm] | 50.0 |
| Version | Standard |
| Format of linear bushings | – Closed |
| Series | Super H |
| Type | Linear bushing |
| Seal | Without wiper seals |
| Lubrication | Not lubricated |
| Dynamic load capacity C [N] | 16000.0 |
| Note: dynamic load capacity C | The load capacities apply for the main direction of loading. |
| Maximum acceleration rate amax [m/s²] | 150.0 |
| Maximum permissible linear speed vmax [m/s] | 5.0 |
| Length of linear bushing [mm] | 100.0 |
| Outer diameter D [mm] | 75.0 |
| Permissible ambient temperature (min. ... max.) | -20 °C ... +80 °C |
| Friction coefficient μ | 0.001 ... 0.004 |
| Note: friction coefficient μ | Friction coefficients of unsealed linear bushings when lubricated with oil. The friction coefficient is lowest under heavy load, but can still be above the specified value even under a low load. |
| Weight [kg] | 0.69 |
| Static load capacity C0 [N] | 12200.0 |
| Note: static load capacity C0 | The load capacities apply for the main direction of loading. |
| Footnote breakaway force | One wiper seal: Multiply value with factor 0.5 |
| Footnote friction force FR | One wiper seal: Multiply value with factor 0.5 |
| Breakaway force [N] | 15 |

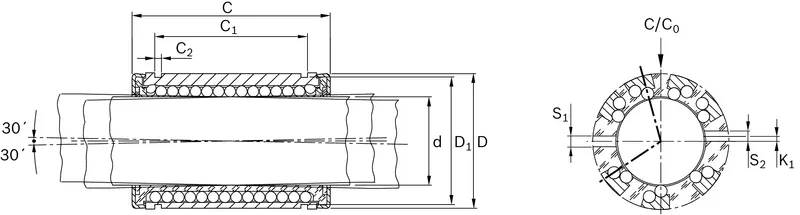

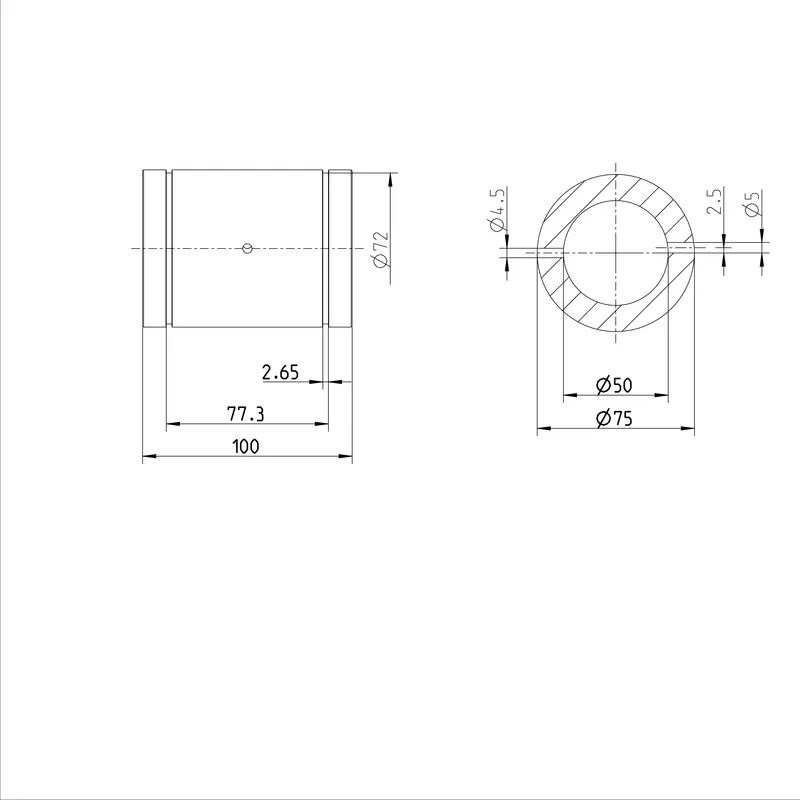

| Dimension C h13 [mm] | 100 |
| Dimension C1 H13 [mm] | 77.3 |
| Dimension C2 [mm] | 2.65 |
| Dimension D [mm] | 75 |
| Dimension D1 [mm] | 72 |
| Dimension S1 (profiled rail systems) [mm] | 4.5 |
| Dimension S2 [mm] | 5 |
