Bosch Rexroth R072522500

TORQUE RESISTANT BUSHING KBDR4-F-25DD

MPN: R072522500
Category: Linear bushings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

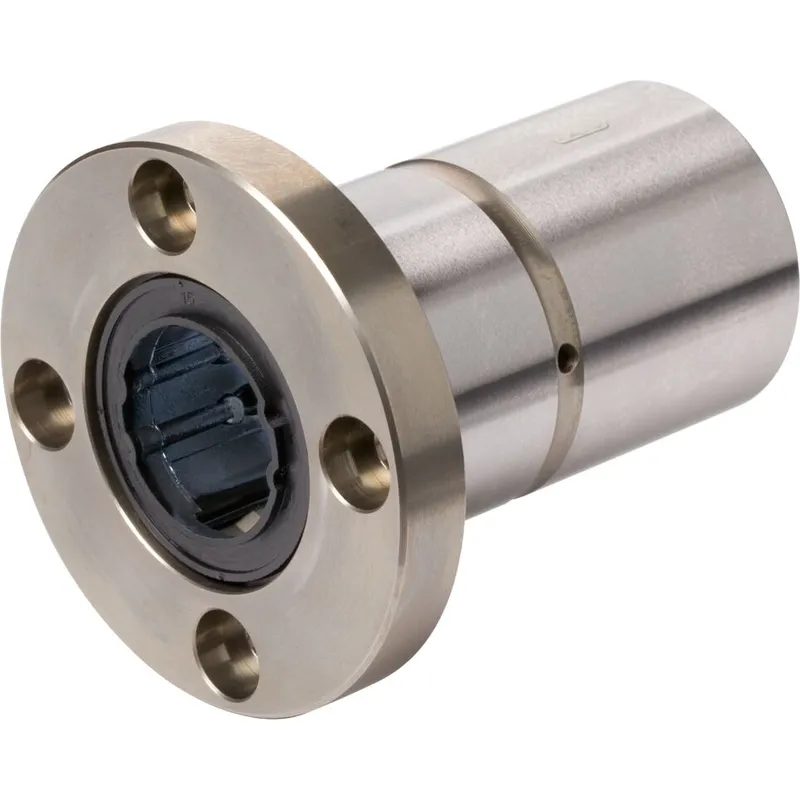

What is the Bosch Rexroth R072522500?

Torque-resistant linear bushing (flanged version)

Ball guide grooves = 4

Shaft diameter d = 25

With two seals

Without shaft

For self-supporting, torsionally stiff guides with only one shaft

With four ball guide grooves for transferring torque

Matching shaft profiles with machined ball guide grooves

Shafts machined to customer specification

Integrated wiper seals

Hardened and ground outer sleeve

POM ball retainer

Balls made of rolling bearing steel

Relubricatable

Specifications

Shaft diameter d [mm]	25.0
Version	Standard
Format of linear bushings	F - Flange
Series	Torque
Type	Linear bushing
Seal	2 integrated wiper seals
Raceway grooves	4
Lubrication	Not lubricated
Dynamic load capacity C [N]	9800.0
Note: dynamic load capacity C	The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.
Maximum acceleration rate amax [m/s²]	150.0
Maximum permissible linear speed vmax [m/s]	3.0
Dynamic torsional moment load capacity Mt [Nm]	129.0
Length of linear bushing [mm]	70.0
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Weight [kg]	0.36
Footnote diameter d	Actual shaft diameter varies
Static load capacity C0 [N]	16100.0
Note: static load capacity C0	The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.
Static torsional moment load capacity Mt0 [Nm]	239
Shaft diameter, detailed [mm]	23

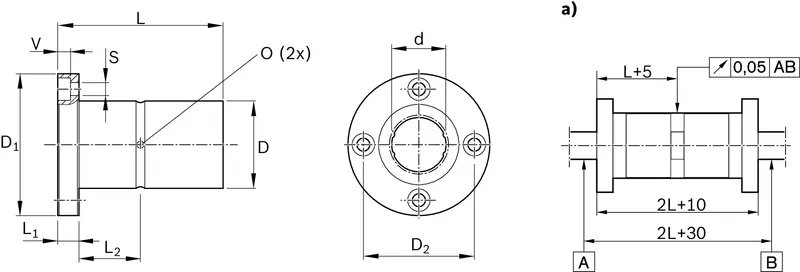

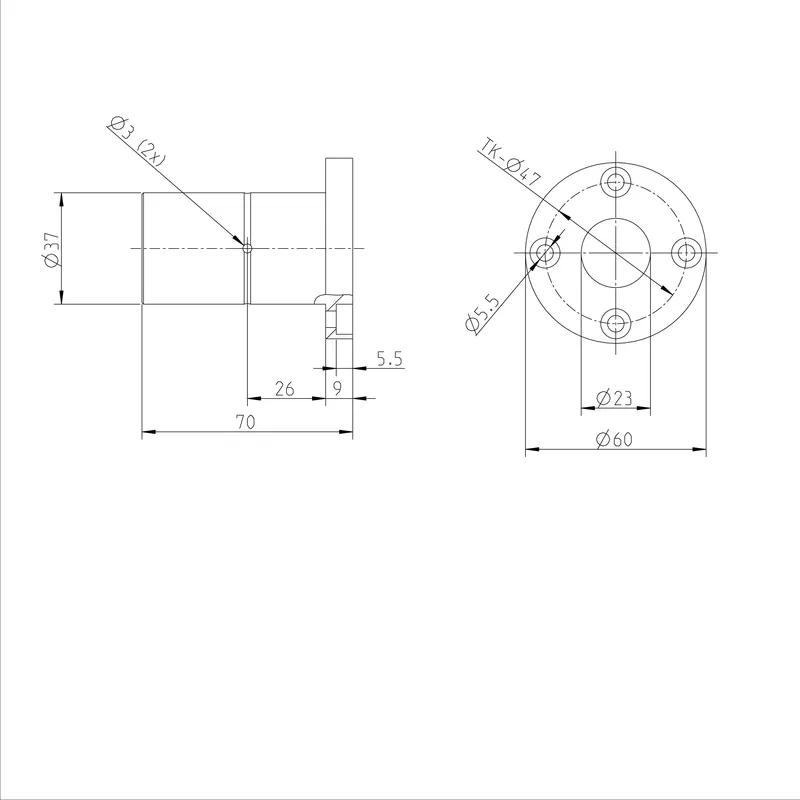

Dimension D [mm]	37
Dimension D1 [mm]	60
Dimension D h6 [mm]	37
Dimension D2 [mm]	47
Dimension L [mm]	70
Dimension L tolerance [mm]	-0.3
Dimension L1 [mm]	9
Dimension L2 [mm]	26
Dimension S [mm]	5.5
Dimension V [mm]	5.4
