Bosch Rexroth R072425000
TORQUE RESISTANT BUSHING KBDR4-H-50DD
- MPN
- R072425000
- Category
- Linear bushings
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

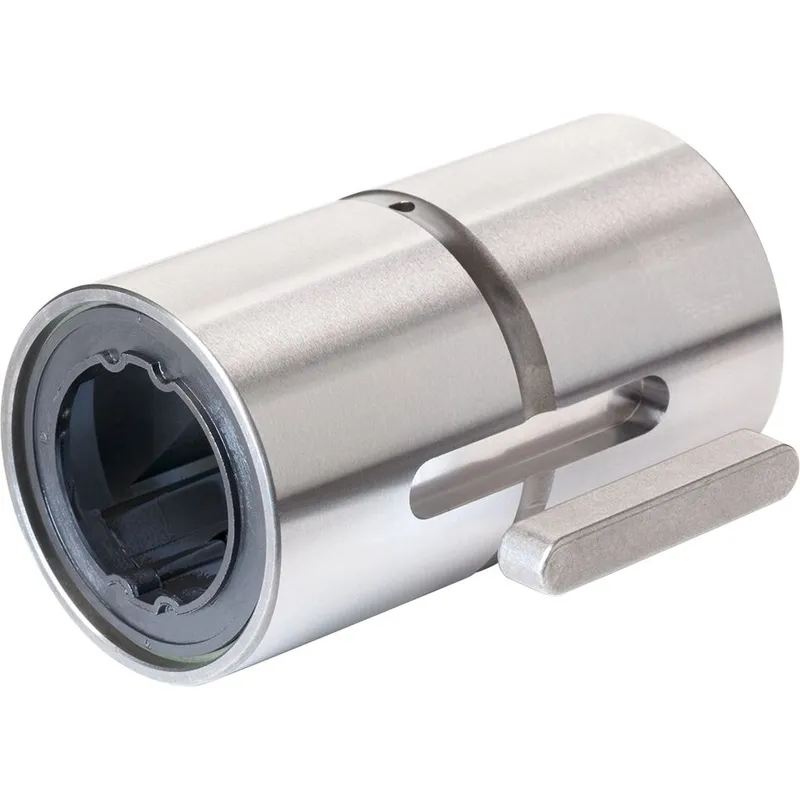

What is the Bosch Rexroth R072425000?
Torque-resistant linear bushing (cylindrical, sleeve design)
Ball guide grooves = 4
Shaft diameter d = 50
With two seals
Without shaft
For self-supporting, torsionally stiff guides with only one shaft
With four ball guide grooves for transferring torque
Matching shaft profiles with machined ball guide grooves
Shafts machined to customer specification
Integrated wiper seals
Hardened and ground outer sleeve
POM ball retainer
Balls made of rolling bearing steel
Fitting key for torque transmission
Relubricatable
Specifications
Specifications
| Shaft diameter d [mm] | 50.0 |
| Version | Standard |
| Format of linear bushings | H - Sleeve design |
| Series | Torque |
| Type | Linear bushing |
| Seal | 2 integrated wiper seals |
| Raceway grooves | 4 |
| Lubrication | Not lubricated |
| Dynamic load capacity C [N] | 36600.0 |
| Note: dynamic load capacity C | The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined. |
| Maximum acceleration rate amax [m/s²] | 150.0 |
| Maximum permissible linear speed vmax [m/s] | 3.0 |
| Dynamic torsional moment load capacity Mt [Nm] | 1100.0 |
| Length of linear bushing [mm] | 112.0 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Weight [kg] | 1.62 |
| Footnote diameter d | Actual shaft diameter varies |
| Static load capacity C0 [N] | 74200.0 |
| Note: static load capacity C0 | The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined. |
| Static torsional moment load capacity Mt0 [Nm] | 3180 |

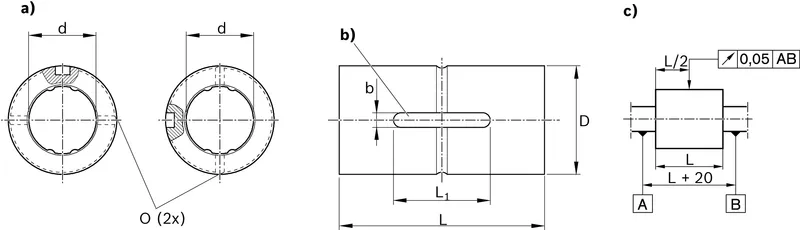

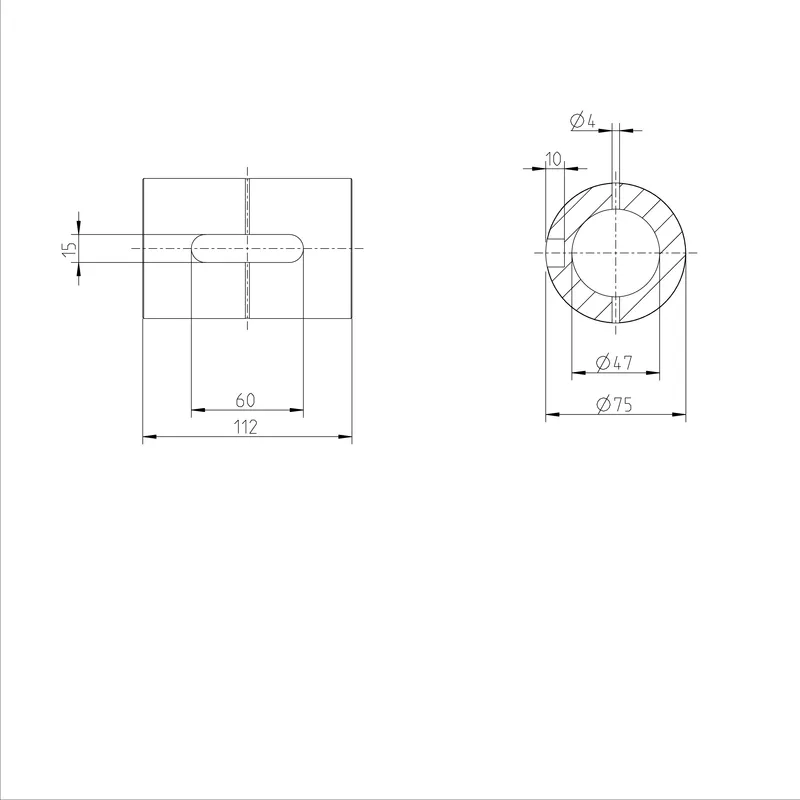

| Shaft diameter, detailed [mm] | 47 |
| Dimension b [mm] | 15 |
| Dimension D [mm] | 75 |
| Dimension D h6 [mm] | 75 |
| Dimension L [mm] | 112 |
| Dimension L tolerance [mm] | -0.3 |
| Dimension L1 [mm] | 60 |
| Dimension t [mm] | 5 |
| Dimension t1 [mm] | 10 |
