Bosch Rexroth R072355088

LINEAR-SET LSFDR2-50-WV-2000

MPN: R072355088
Category: Linear sets with linear bushings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

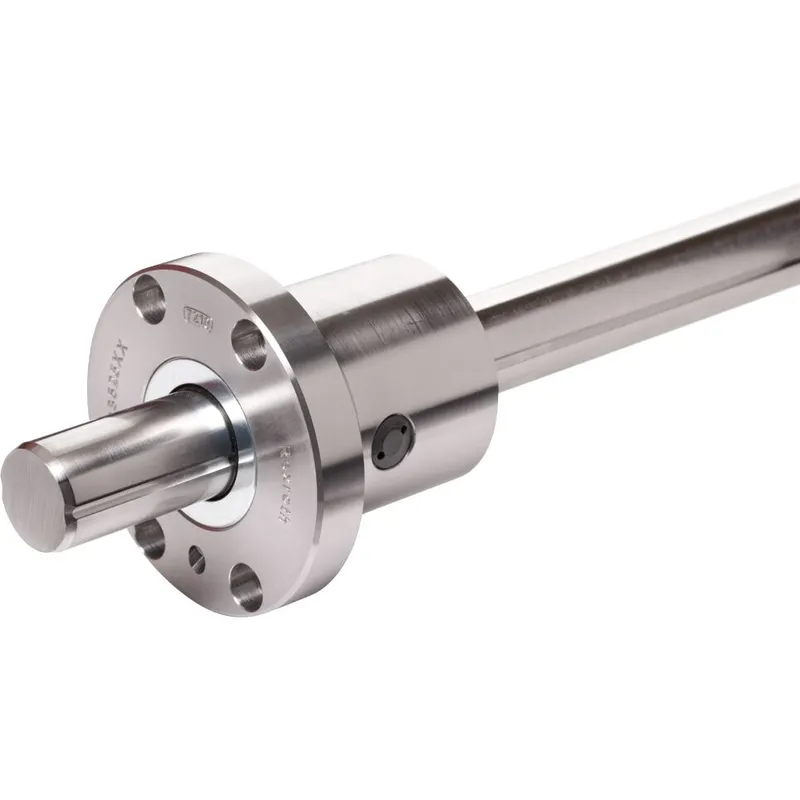

What is the Bosch Rexroth R072355088?

Linear set (steel)

Compact LB, flange

Ball guide grooves = 2

Shaft diameter d = 50

Shaft included

2000 = standard length as per table

Without seal

Version: Standard

Steel flanged sleeve

Torque-resistant compact linear bushing

One ball guide groove for diameter shafts 12 and 16 mm

Two ball guide grooves for diameter shafts 20 mm and higher

Torque-transmitting, hardened steel bearing plates set to zero clearance ex works

External seals

Stability against tipping loads: Installation of 2 linear sets, see chapter "Mounting"

Relubricatable

Specifications

Shaft diameter d [mm]	50.0
Format of linear bushings	F - Flange
Series	Torque
Type	Linear set
Dynamic load capacity C [N]	9250.0
Note: dynamic load capacity C	The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.
Maximum acceleration rate amax [m/s²]	150.0
Maximum permissible linear speed vmax [m/s]	3.0
Dynamic torsional moment load capacity Mt [Nm]	167.0
Mass m (kg/m) [kg/m]	15.3
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Weight [kg]	0.1
Static load capacity C0 [N]	6470.0
Note: static load capacity C0	The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.

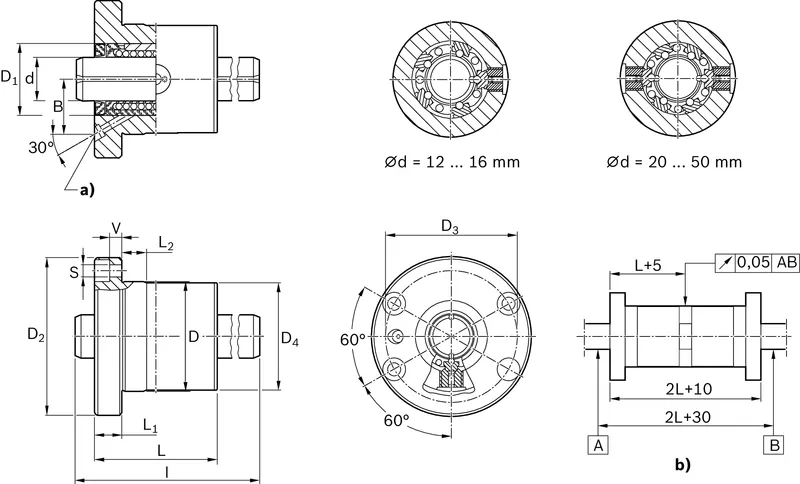

Dimension B (profiled rail systems) [mm]	50.5
Dimension D1 [mm]	75
Dimension D h6 [mm]	100
Dimension D2 [mm]	140
Dimension D3 [mm]	118
Dimension D4 [mm]	100
Dimension L H11 [mm]	114
Dimension L1 [mm]	22
Dimension L2 [mm]	16
Dimension S [mm]	11
Dimension V [mm]	8.5
Standard length l of the shaft footnote [mm]	R.... ... 85: l = 900 mm, R.... ... 87: l = 1200 mm, R.... ... 88: l = 2000 mm
Standard length l of the shaft [mm]	600
