Bosch Rexroth R072353085

LINEAR-SET LSFDR2-30-WV-900

MPN: R072353085
Category: Linear sets with linear bushings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

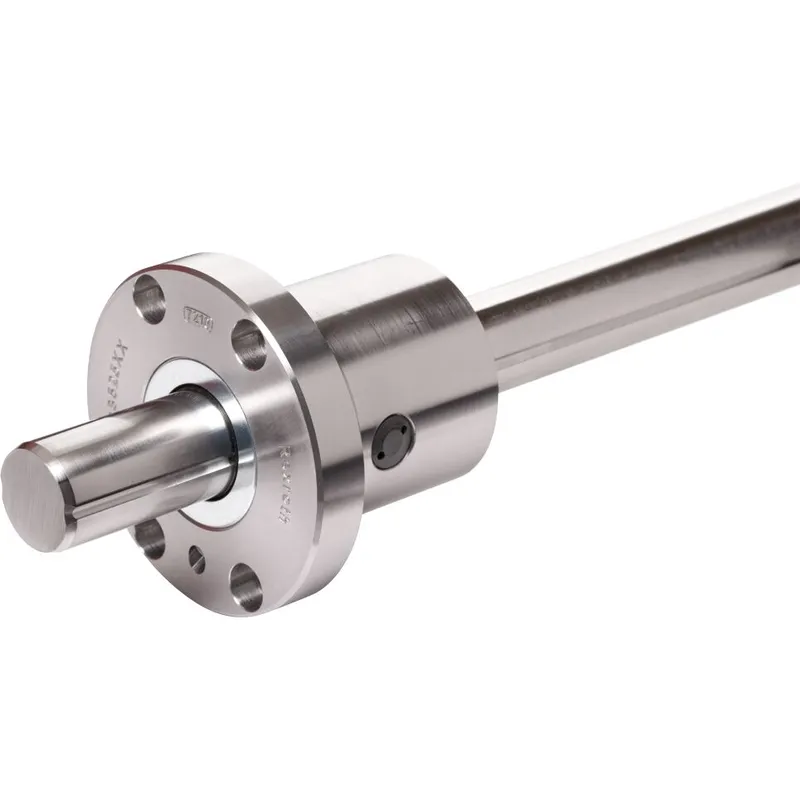

What is the Bosch Rexroth R072353085?

Linear set (steel)

Compact LB, flange

Ball guide grooves = 2

Shaft diameter d = 30

Shaft included

900 = standard length as per table

Without seal

Version: Standard

Steel flanged sleeve

Torque-resistant compact linear bushing

One ball guide groove for diameter shafts 12 and 16 mm

Two ball guide grooves for diameter shafts 20 mm and higher

Torque-transmitting, hardened steel bearing plates set to zero clearance ex works

External seals

Stability against tipping loads: Installation of 2 linear sets, see chapter "Mounting"

Relubricatable

Specifications

Shaft diameter d [mm]	30.0
Format of linear bushings	F - Flange
Series	Torque
Type	Linear set
Dynamic load capacity C [N]	3680.0
Note: dynamic load capacity C	The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.
Maximum acceleration rate amax [m/s²]	150.0
Maximum permissible linear speed vmax [m/s]	3.0
Dynamic torsional moment load capacity Mt [Nm]	37.0
Mass m (kg/m) [kg/m]	5.5
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Weight [kg]	7.88
Static load capacity C0 [N]	2790.0
Note: static load capacity C0	The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.

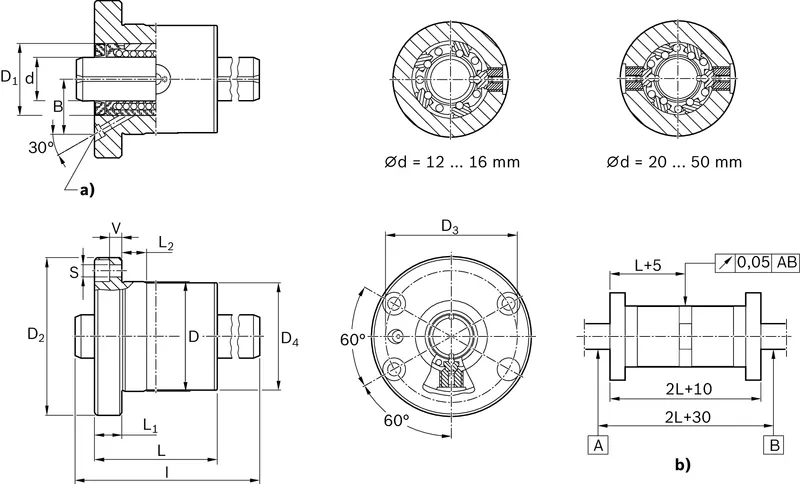

Dimension B (profiled rail systems) [mm]	33
Dimension D1 [mm]	47
Dimension D h6 [mm]	65
Dimension D2 [mm]	98
Dimension D3 [mm]	80
Dimension D4 [mm]	65
Dimension L H11 [mm]	80
Dimension L1 [mm]	18
Dimension L2 [mm]	10
Dimension S [mm]	9
Dimension V [mm]	7
Standard length l of the shaft footnote [mm]	R.... ... 85: l = 900 mm, R.... ... 87: l = 1200 mm, R.... ... 88: l = 2000 mm
Standard length l of the shaft [mm]	600
