Bosch Rexroth R072254088

LINEAR-SET LSHDR2T-40-WV-2000

MPN: R072254088
Category: Linear sets with linear bushings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

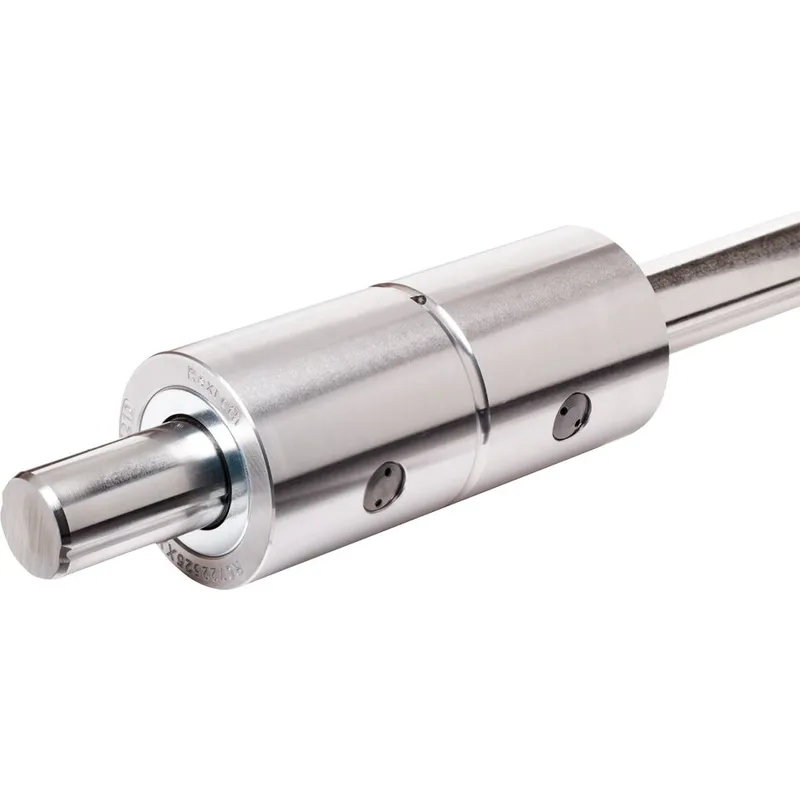

What is the Bosch Rexroth R072254088?

Linear set (steel)

Compact LB, sleeve version, tandem

Ball guide grooves = 2

Shaft diameter d = 40

Shaft included

2000 = standard length as per table

Without seal

Version: Standard

Compact steel sleeve

Two torque-resistant compact linear bushings

One ball guide groove for diameter shafts 12 and 16 mm

Two ball guide grooves for diameter shafts 20 mm and higher

Keyway for torque transmission

Torque-transmitting, hardened steel bearing plates set to zero clearance ex works

Stability against cocking loads

External seals

Relubricatable

Specifications

Shaft diameter d [mm]	40.0
Format of linear bushings	H - Sleeve design
Series	Torque
Type	Linear set
Dynamic load capacity C [N]	10200.0
Note: dynamic load capacity C	Load capacity when both linear bushings are under equal load. The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.
Maximum acceleration rate amax [m/s²]	150.0
Maximum permissible linear speed vmax [m/s]	3.0
Dynamic torsional moment load capacity Mt [Nm]	140.0
Mass m (kg/m) [kg/m]	9.8
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Weight [kg]	0.1
Static load capacity C0 [N]	8700.0
Note: static load capacity C0	Load capacity when both linear bushings are under equal load. The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.

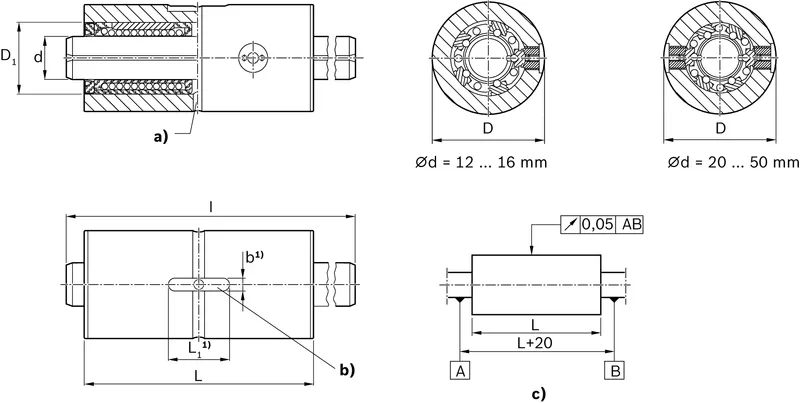

Dimension b P9 [mm]	8
Dimension D1 [mm]	62
Dimension D h6 [mm]	80
Dimension L H11 [mm]	176
Dimension L1 [mm]	45
Dimension t [mm]	4
Standard length l of the shaft footnote [mm]	R.... ... 85: l = 900 mm, R.... ... 87: l = 1200 mm, R.... ... 88: l = 2000 mm
Standard length l of the shaft [mm]	600
