Bosch Rexroth R069605080

TORQUE RESISTANT BUSHING KBDR1-50-WV-600

MPN: R069605080
Category: Linear bushings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

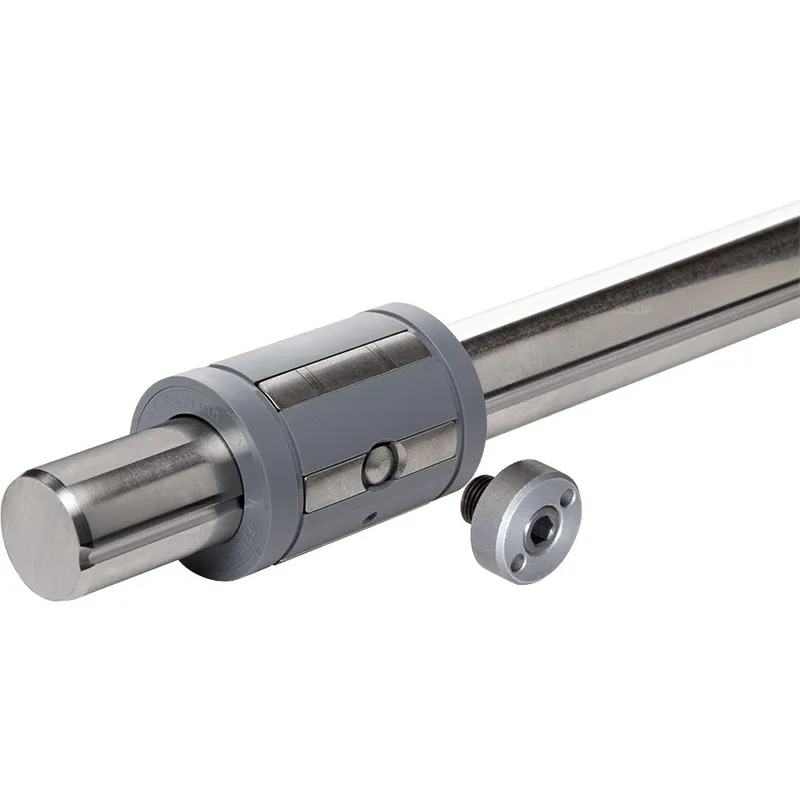

What is the Bosch Rexroth R069605080?

Torque-resistant linear bushing (standard)

Ball guide grooves = 1

Shaft diameter d = 50

Without seal

Shaft included

600 = standard length as per table

For self-supporting, torsionally stiff guides with only one shaft

Torque-resistant linear bushings with adjusting screw come set to zero clearance

Shafts machined to customer specification

Precision steel shaft with one ball guide groove for transferring torques

Ball retainer and outer sleeve made of PA or POM

Hardened steel bearing plates

Balls made of rolling bearing steel

Hardened steel adjusting screw

Steel lock nut

Specifications

Shaft diameter d [mm]	50.0
Version	Standard
Format of linear bushings	– Closed
Series	Torque
Type	Linear bushing
Seal	Without wiper seals
Raceway grooves	1
Dynamic load capacity C [N]	9250.0
Note: dynamic load capacity C	The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.
Maximum acceleration rate amax [m/s²]	150.0
Maximum permissible linear speed vmax [m/s]	3.0
Dynamic torsional moment load capacity Mt [Nm]	103.0

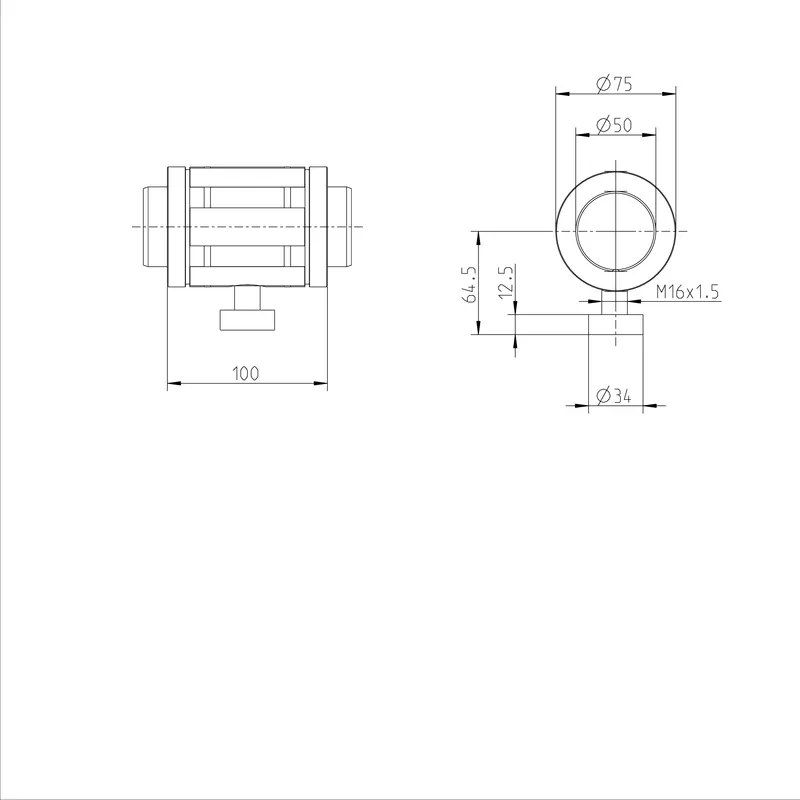

Length of linear bushing [mm]	100.0
Outer diameter D [mm]	75.0
Mass m (kg/m) [kg/m]	15.3
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Weight [kg]	0.1
Static load capacity C0 [N]	6470.0
Note: static load capacity C0	The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.

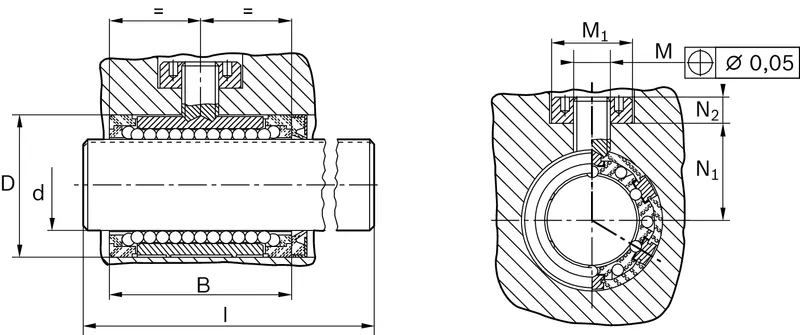

Dimension B (profiled rail systems) [mm]	100
Dimension D [mm]	75
Dimension M1 [mm]	34
Dimension N1 (profiled rail systems) [mm]	52
Dimension N2 (profiled rail systems) [mm]	12.5
Standard length l of the shaft footnote [mm]	R.... ... 85: l = 900 mm, R.... ... 87: l = 1200 mm, R.... ... 88: l = 2000 mm
Standard length l of the shaft [mm]	600
