Bosch Rexroth R069603079
TORQUE RESISTANT BUSHING KBDR1-30-WV-X90-K
- MPN
- R069603079
- Category
- Linear bushings
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

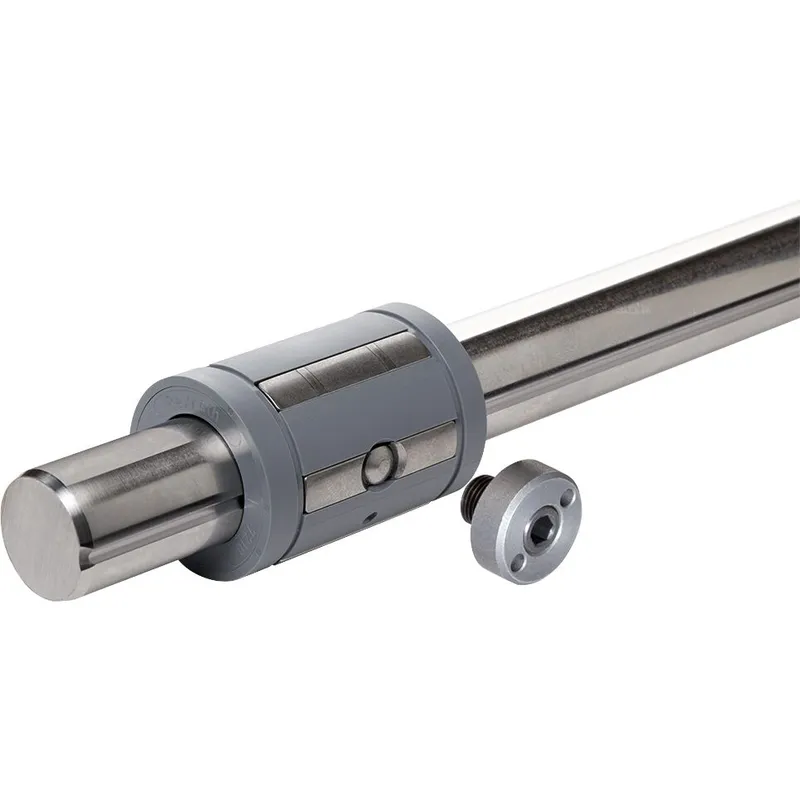

What is the Bosch Rexroth R069603079?
Torque-resistant linear bushing (standard)
Ball guide grooves = 1
Shaft diameter d = 30
Without seal
With X90 corrosion-resistant shaft
L = shaft length to specification (cut)
For self-supporting, torsionally stiff guides with only one shaft
Torque-resistant linear bushings with adjusting screw come set to zero clearance
Shafts machined to customer specification
Precision steel shaft with one ball guide groove for transferring torques
Ball retainer and outer sleeve made of PA or POM
Hardened steel bearing plates
Balls made of rolling bearing steel
Hardened steel adjusting screw
Steel lock nut
Specifications
Specifications
| Shaft diameter d [mm] | 30.0 |
| Version | Standard |
| Format of linear bushings | – Closed |
| Series | Torque |
| Type | Linear bushing |
| Seal | Without wiper seals |
| Raceway grooves | 1 |
| Dynamic load capacity C [N] | 3680.0 |
| Note: dynamic load capacity C | The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined. |
| Maximum acceleration rate amax [m/s²] | 150.0 |
| Maximum permissible linear speed vmax [m/s] | 3.0 |
| Dynamic torsional moment load capacity Mt [Nm] | 23.0 |

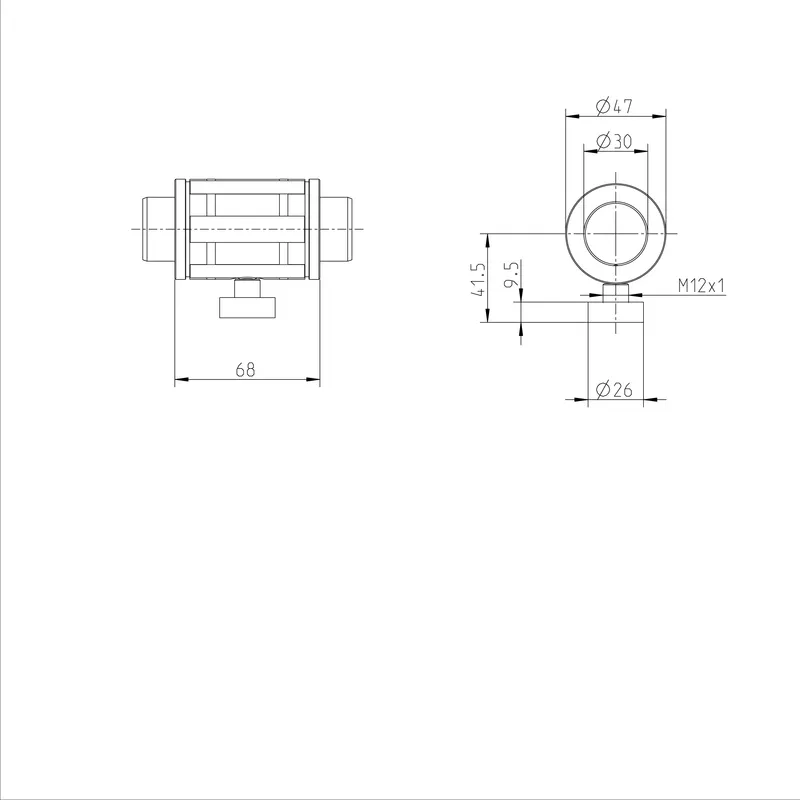

| Length of linear bushing [mm] | 68.0 |
| Outer diameter D [mm] | 47.0 |
| Mass m (kg/m) [kg/m] | 5.5 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Weight [kg] | 0 |
| Static load capacity C0 [N] | 2790.0 |
| Note: static load capacity C0 | The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined. |

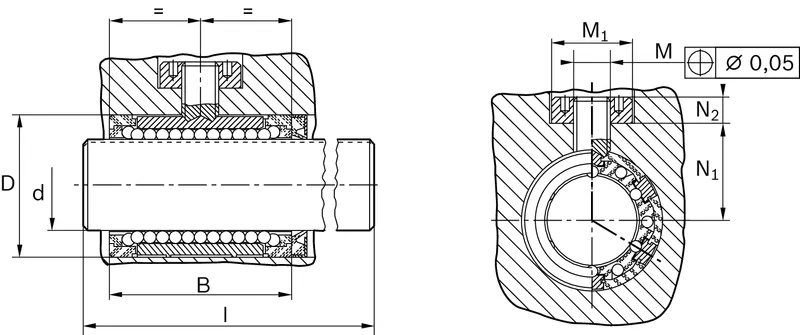

| Dimension B (profiled rail systems) [mm] | 68 |
| Dimension D [mm] | 47 |
| Dimension M1 [mm] | 26 |
| Dimension N1 (profiled rail systems) [mm] | 32 |
| Dimension N2 (profiled rail systems) [mm] | 9.5 |
