Bosch Rexroth R067311640

SUPER LINEAR BUSHING KBB-O-16-D

MPN: R067311640
Category: Linear bushings

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

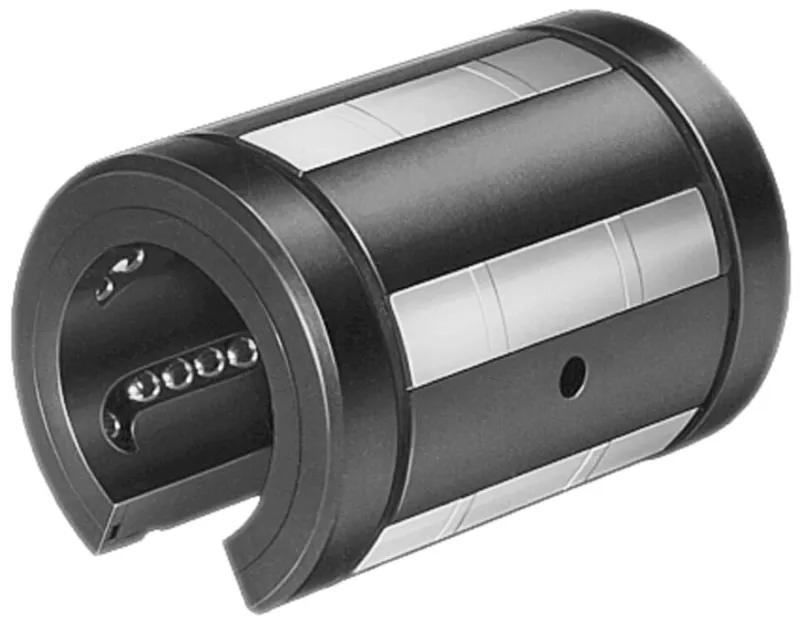

What is the Bosch Rexroth R067311640?

Super linear bushing

Super B (no self-alignment feature)

Open

Shaft diameter d = 16

With one seal

Low-cost linear bushing for high requirements

Steel bearing plates with machined ball guide grooves and optimized ball lead-in chamfers for outstandingly smooth travel and a long service life

Without self-alignment feature for transferring lower tipping force along the axial direction

Open linear bushing on fully supported shafts for applications where other linear guides tend to warp due to imprecise substructures.

High travel speed (5 m/s)

With longitudinal seal

Integrated wiper seals, external seals or no wiper seals

Ball retainer and outer sleeve made of PA or POM

Balls made of rolling bearing steel

No initial lubrication

Specifications

Shaft diameter d [mm]	16.0
Version	Standard
Format of linear bushings	O - Open
Series	Super B (no self-alignment feature)
Type	Linear bushing
Seal	1 integrated wiper seal
Lubrication	Not lubricated
Dynamic load capacity C [N]	1500.0
Note: dynamic load capacity C	The load capacities apply for the main direction of loading.
Maximum acceleration rate amax [m/s²]	150.0
Maximum permissible linear speed vmax [m/s]	3.0
Note: maximum permissible speed vmax	Speeds of up to 5 m/s possible. Service life is limited by heightened wear to plastic parts. Tests have shown total travel from 50 • 10<sup>5</sup> m to 100 • 10<sup>5</sup> m without failure.
Length of linear bushing [mm]	36.0
Outer diameter D [mm]	26.0
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Friction coefficient μ	0.001 ... 0.0025
Note: friction coefficient μ	Friction coefficients of unsealed linear bushings when lubricated with oil. The friction coefficient is lowest under heavy load, but can still be above the specified value even under a low load.
Weight [kg]	0.04
Static load capacity C0 [N]	830.0
Note: static load capacity C0	The load capacities apply for the main direction of loading.
Footnote breakaway force	One wiper seal: Multiply value with factor 0.5
Footnote friction force FR	1. One wiper seal: Multiply value with factor 0.5 2. Frictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication.
Breakaway force [N]	2

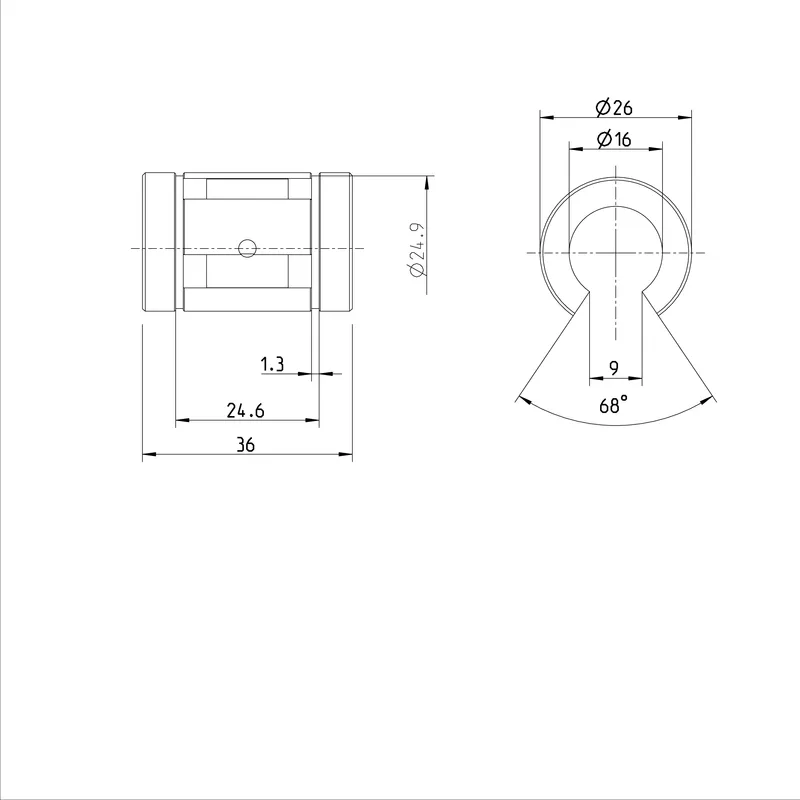

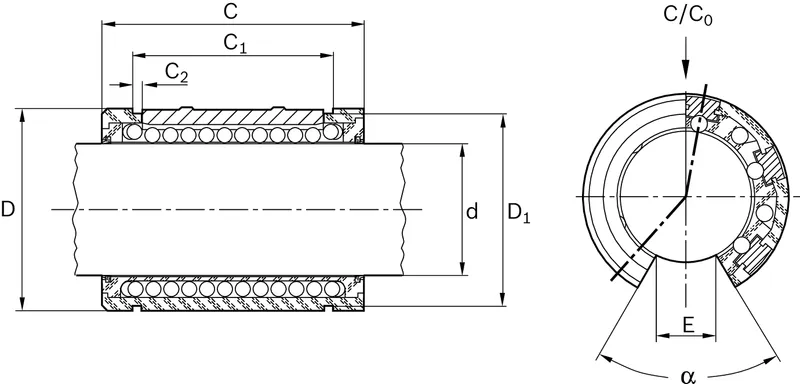

Dimension C h13 [mm]	36
Dimension C1 H13 [mm]	24.6
Dimension C2 [mm]	1.3
Dimension D [mm]	26
Dimension E [mm]	9
Footnote Dimension E	Lower limit relative to Ø d.
Angle α [°]	68
