Bosch Rexroth R067001200

SUPER LINEAR BUSHING KBA-12

MPN: R067001200
Category: Linear bushings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

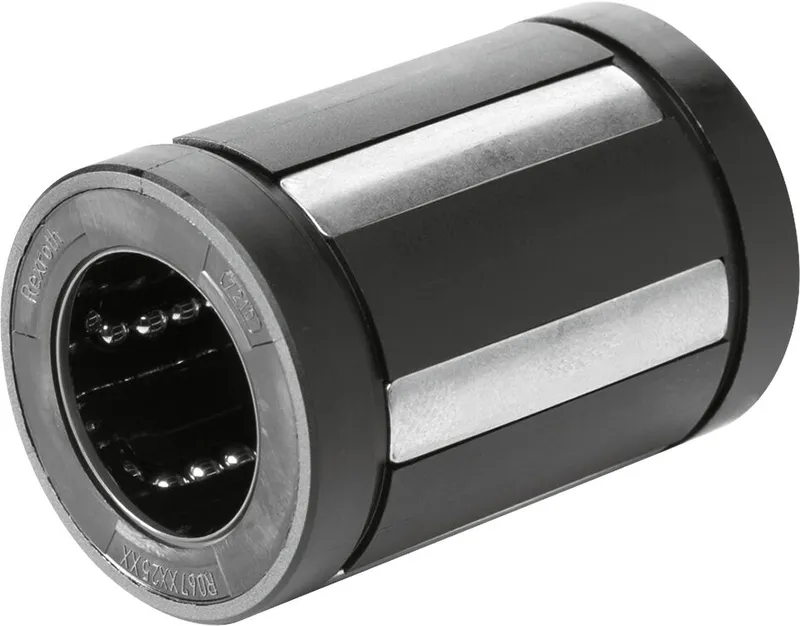

What is the Bosch Rexroth R067001200?

Super linear bushing

Super A (with self-alignment feature)

Closed

Shaft diameter d = 12

Without seal

Low-cost linear bushing for high requirements

Steel bearing plates with machined ball guide grooves and optimized ball lead-in chamfers for outstandingly smooth travel and a long service life

Compensates for shaft deflection and misalignment up to 30'

High travel speed (5 m/s)

No initial lubrication

Integrated wiper seals, external seals or no wiper seals

Ball retainer and outer sleeve made of PA or POM

Balls made of rolling bearing steel

Specifications

Shaft diameter d [mm]	12.0
Version	Standard
Format of linear bushings	– Closed
Series	Super A (with self-alignment feature)
Type	Linear bushing
Seal	Without wiper seals
Lubrication	Not lubricated
Maximum dynamic load capacity Cmax [N]	1140.0
Maximum acceleration rate amax [m/s²]	150.0
Maximum permissible linear speed vmax [m/s]	3.0
Note: maximum permissible speed vmax	Speeds of up to 5 m/s possible. Service life is limited by heightened wear to plastic parts. Tests have shown total travel from 50 • 10<sup>5</sup> m to 100 • 10<sup>5</sup> m without failure.
Length of linear bushing [mm]	32.0
Outer diameter D [mm]	22.0
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Friction coefficient μ	0.001 ... 0.0025
Note: friction coefficient μ	Friction coefficients of unsealed linear bushings when lubricated with oil. The friction coefficient is lowest under heavy load, but can still be above the specified value even under a low load.
Weight [kg]	0.03
Footnote breakaway force	One wiper seal: Multiply value with factor 0.5
Footnote maximum dynamic load capacity Cmax	The dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26.
Footnote minimum dynamic load capacity Cmin	The dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26.
Footnote friction force FR	One wiper seal: Multiply value with factor 0.5
Breakaway force [N]	1.5

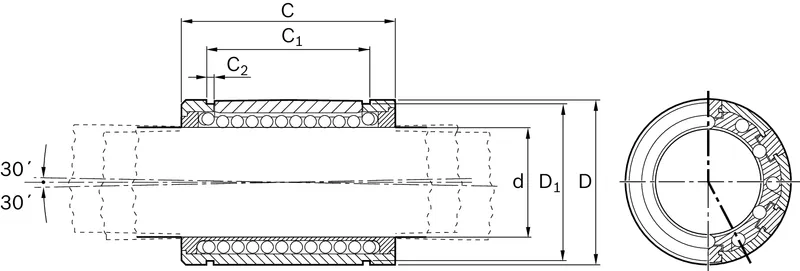

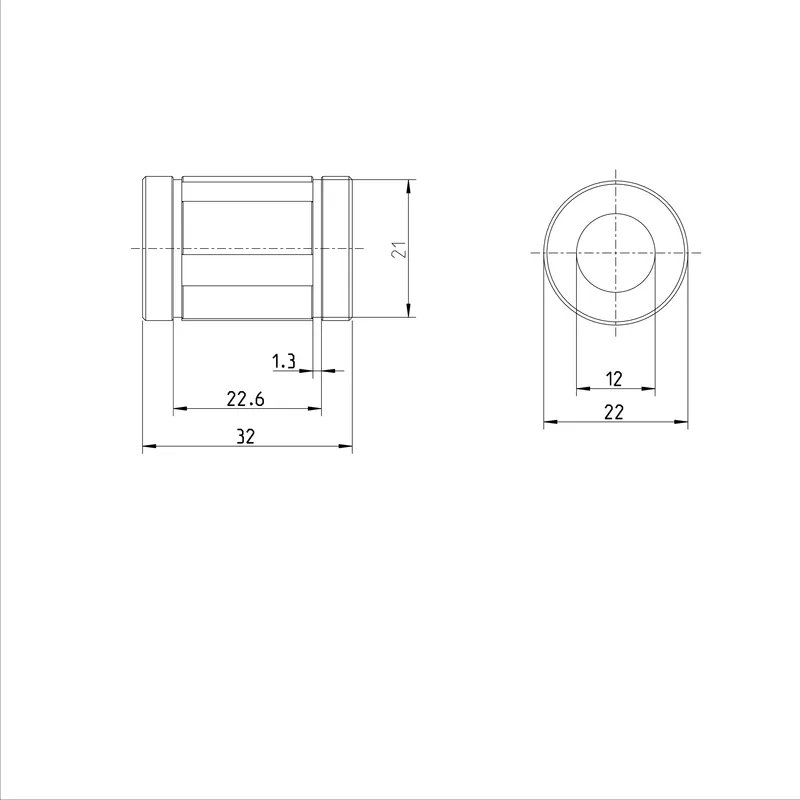

Dimension C h13 [mm]	32
Dimension C1 H13 [mm]	22.6
Dimension C2 [mm]	1.3
Dimension D [mm]	22
Dimension D1 [mm]	21
