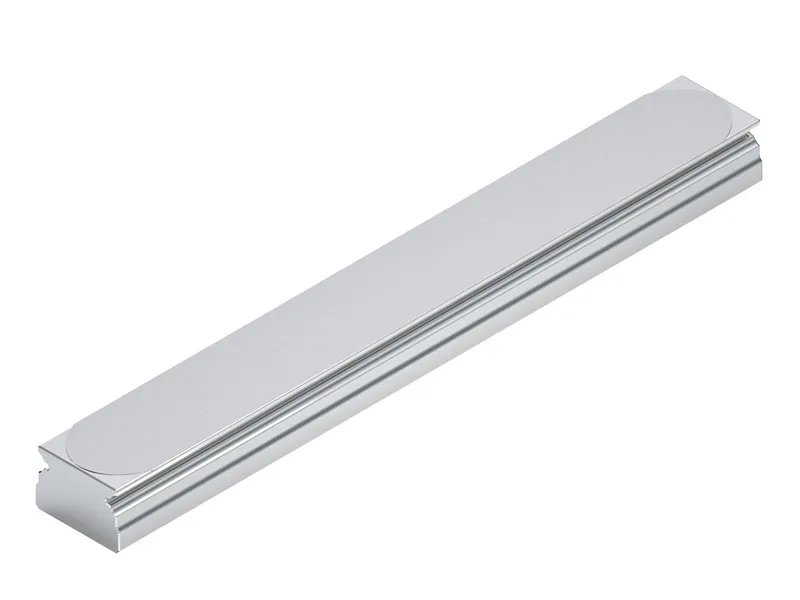

Bosch Rexroth R044506331
MINIATURE GUIDE RAIL RESIST NRII MSA-020-SNS-H-MA-AB
- MPN
- R044506331
- Category
- Miniature ball guide rails
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth R044506331?
The miniature version of the ball guide rail is characterized by the following product features:
Size 20
Format SNS: Width = slimline, length = normal, height = standard
Guide rail made of corrosion-resistant, martensitic steel
Fastener MA: Bolting from above
Cover AB: Cover strip
Accuracy class high
Number of partial sections: one-piece
Rail in standard version
For runner blocks R0442 and R0444.
Specifications
Specifications
| Version | Ball rail system |
| Nominal size [mm] | 20 |
| Format | SNS - Standard guide rail |
| Material (profiled rail systems) | Corrosion-resistant, martensitic steel |
| Accuracy class | H - Highly accurate |
| Guide rail mounting | For bolting from above |
| Guide rail cover | With cover strip |
| Max. length Lmax [mm] | 1000.0 |
| Note: Lmax | In the case of rail lengths above L<sub>max,</sub> factory-coordinated partial sections are joined together. Up to 2000 mm possible; please consult us. |
| Minimum length Lmin [mm] | 73.0 |
| Number of sections | 1-piece |
| Mass m (kg/m) [kg/m] | 2110 |
| Mass g/m [g/m] | 2110 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Note: permissible ambient temperature (min. ... max.) | 100 °C admissible for a short time. |
| Weight [kg] | 0 |
| Recommended rail length (formula) | L = n<sub>B </sub>• T<sub> </sub>‒ 4 mm |
| Pitch T guide rail [mm] | 60 |

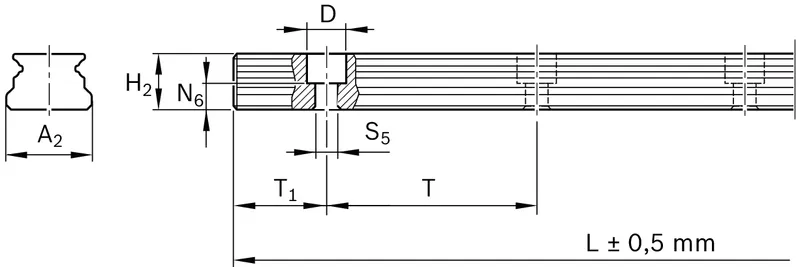

| Dimension A2 (profiled rail systems) [mm] | 20 |
| Dimension D [mm] | 9.5 |
| Dimension H2 with cover strip (profiled rail systems) [mm] | 15.1 |
| Dimension H2 without cover strip (profiled rail systems) [mm] | 15 |
| Dimension N6 (profiled rail systems) [mm] | 6.5 |
| Dimension S5 (profiled rail system) [mm] | 6 |
| Dimension T [mm] | 60 |
| Dimension T1 max (profiled rail systems) [mm] | 53.5 |
| Dimension T1 min [mm] | 6.5 |
