MINIATURE GUIDE RAIL RESIST NRII MSA-020-SNS-P-MA-00
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Miniature ball guide rails |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R044500232 be shipped?
R044500232 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R044500232 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R044500232 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R044500232, subject to availability and destination.
The miniature version of the ball guide rail is characterized by the following product features:
Size 20
Format SNS: Width = slimline, length = normal, height = standard
Guide rail made of corrosion-resistant, martensitic steel
Fastener MA: Bolting from above
Cover 00: Without cover
Accuracy class precision
Number of partial sections: 2
Rail in standard version
Specifications
Specifications
| Version | Ball rail system |
| Nominal size [mm] | 20 |
| Format | SNS - Standard guide rail |
| Material (profiled rail systems) | Corrosion-resistant, martensitic steel |
| Accuracy class | P - Precise |
| Guide rail mounting | For bolting from above |
| Guide rail cover | Without cover strip |
| Max. length Lmax [mm] | 1000.0 |
| Note: Lmax | In the case of rail lengths above L<sub>max,</sub> factory-coordinated partial sections are joined together. |
| Minimum length Lmin [mm] | 73.0 |
| Number of sections | 2-piece |
| Mass m (kg/m) [kg/m] | 2110 |
| Mass g/m [g/m] | 2110 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Note: permissible ambient temperature (min. ... max.) | 100°C admissible for a short time. |
| Weight [kg] | 0 |
| Recommended rail length (formula) | L = n<sub>B </sub>• T<sub> </sub>‒ 4 mm |
| Pitch T guide rail [mm] | 60 |
| Dimension A2 (profiled rail systems) [mm] | 20 |
| Dimension D [mm] | 9.5 |
| Dimension H2 without cover strip (profiled rail systems) [mm] | 15 |
| Dimension N6 (profiled rail systems) [mm] | 6.5 |
| Dimension S5 (profiled rail system) [mm] | 6 |
| Dimension T [mm] | 60 |
| Dimension T1 max (profiled rail systems) [mm] | 53.5 |
| Dimension T1 min [mm] | 6.5 |
More Bosch Rexroth parts
Available on requestMINIATURE RUNNER BLOCK RESIST NRII MWA-009-SLS-C0-N-3

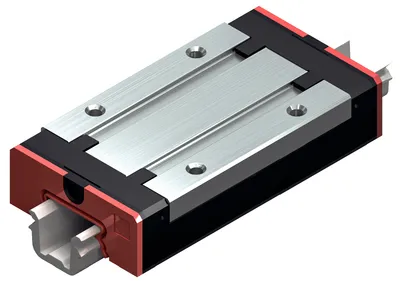

Available on requestMINIATURE RUNNER BLOCK RESIST NRII MWA-009-SLS-C0-N-0
