What is the Bosch Rexroth R040637109?

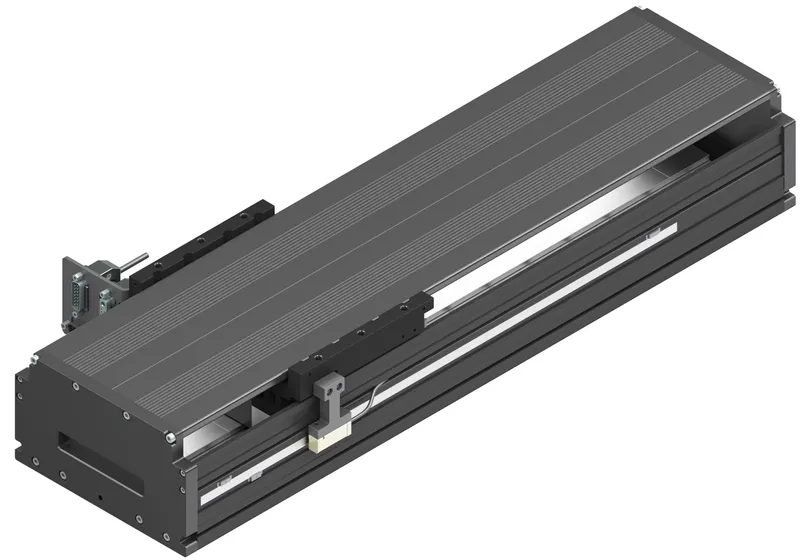

Linear motor module LMM-220-NN-1

Size = 220

Length (L) = 356 mm

Maximum travel range = 184 mm

Version = MA01 - with linear motor

Guideway = 001 - frame with ball rail system

Drive = 032 - linear motor with iron core, type IC-150B-100-W2

Carriage = 032 - carriage length 132 mm

Cover = 001 - with cover plate

Length measuring system = 005 - optical, absolute, resolution 0.05 µm, BiSS-C interface

Lubrication = LSS - standard lubrication

Documentation = 001 - standard final testing

Specifications

Specifications

Nominal size [mm]LMM-220
Motor typeLinear motor with iron core
MotorIC-150B-100-W2
Maximum permissible moving external load mex max [kg]15.0
Length L [mm]356.0
Width [mm]225.0
Height [mm]91.7
Maximum travel range smax [mm]184.0
Maximum acceleration rate amax [m/s²]250.0
Maximum permissible linear speed vmax [m/s]3.0
Continuous nominal force FdN at 100 °C [N]177.0
Max Force [N]620.0
Note: maximum forceMaximum force and current: 4% duty cycle and 1 second duration
Dynamic load capacity, guideway Cgw [N]47111
Dynamic torsional moment load capacity Mt [Nm]3392.0
Maximum current [A]12.7
Dynamic longitudinal moment load capacity ML [Nm]1614.0
Moved mass of system mca [kg]3.7
Continuous current at 100 °C [A]3.3
Weight [kg]14.4
Counter EMK constant KEMK [Vs/m]44.5
Base friction force FRs [N]75
Carriage length Lca [mm]132
Graduated lengths [mm]84
Motor attraction Fatt [N]1080
Intermediate circuit voltage V<sub>dc</sub> [V]600
