Bosch Rexroth R039151022

CONNECTING SHAFT CKR 9-70

MPN
R039151022
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Bosch Rexroth parts? We buy surplus →

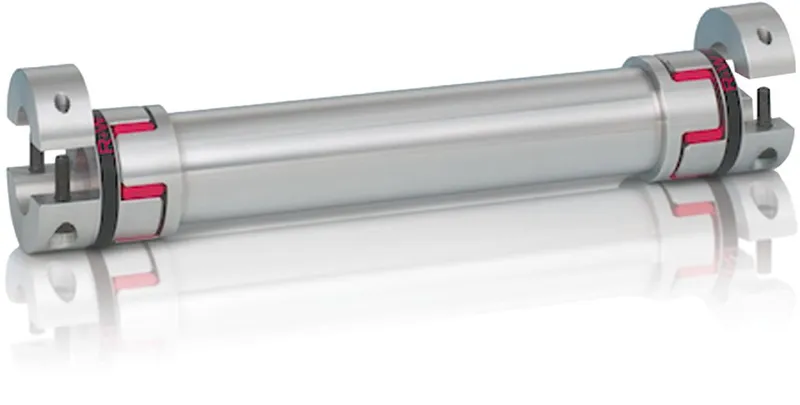

What is the Bosch Rexroth R039151022?

Bridge large distances between axes

Can be mounted radially by split clamping hub

Mounting and removal without shifting the aligned axes

Backlash-free and torsionally stiff

Specifications

Specifications

Mechanical accessories for linear axesConnecting shafts
Nominal size [mm]70
Tightening torque [Nm]4
Outer diameter D [mm]8.0
Weight [kg]502.7
Mass m0.00054 · (L<sub>cs</sub> (mm) - 80) + 0.12
Mass moment of inertia0.09 · (L<sub>cs</sub> (mm) - 80) + 30
Rated torque of connecting shaft Mcs [Nm]12.5
Peak torque of connecting shaft Ms [Nm]25

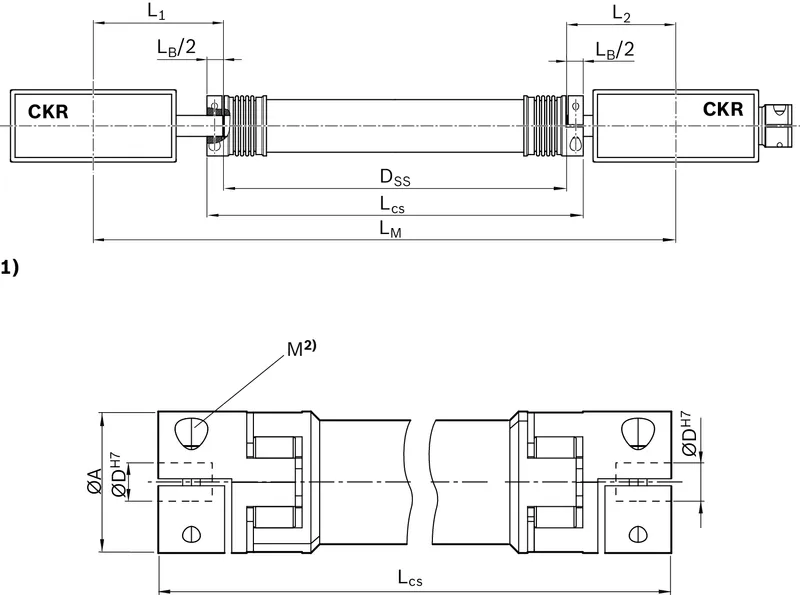

Dimension A (profiled rail systems) [mm]30
Dimension D [mm]8
Dimension thread MM4
Dimension LB [mm]21
Dimension Lcs max. [mm]2400
Dimension Lcs min. [mm]95

R039151022: frequently asked questions

When can R039151022 be shipped?

R039151022 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R039151022 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R039151022 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R039151022, subject to availability and destination.
