Bosch Rexroth R037550010
CONNECTING PLATE CKK 20-145 L BG
- MPN
- R037550010
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Bosch Rexroth R037550010?
Fastening of attachments (with sliding blocks)

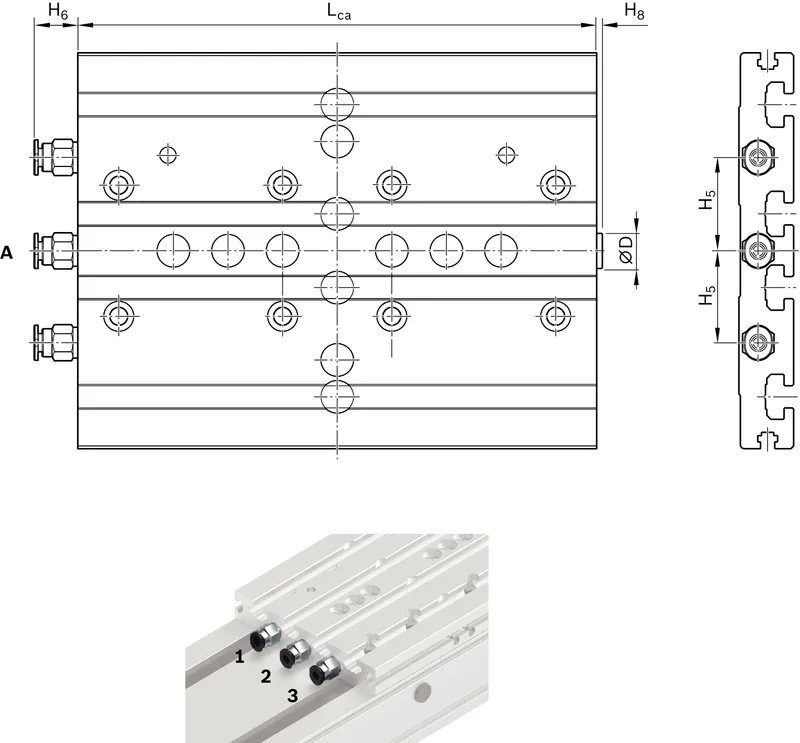

Lubrication of the ball rail system and the ball screw assembly possible via the connection plate

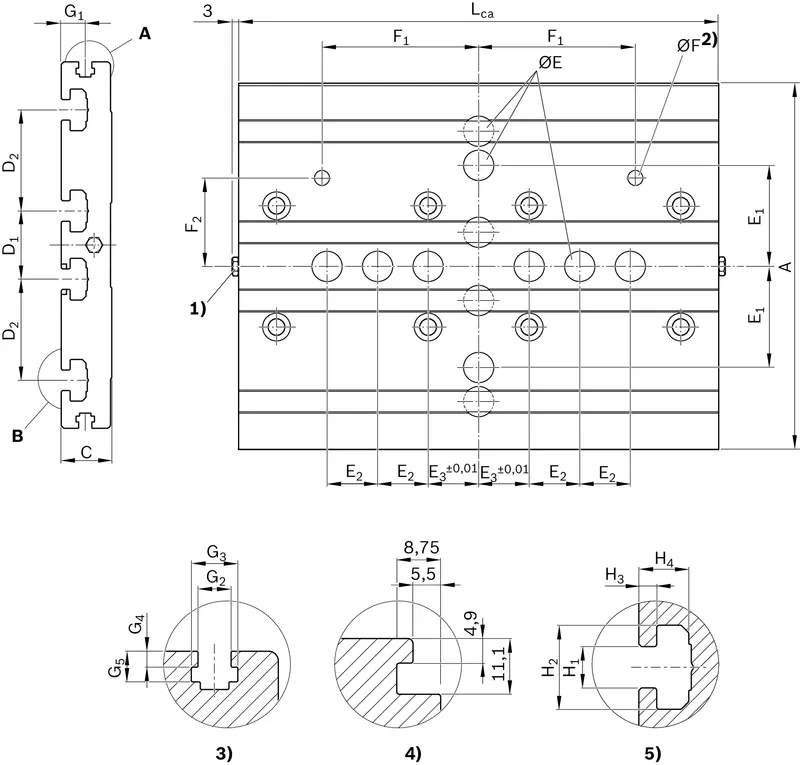

Specifications
Specifications
| Mechanical accessories for linear axes | Connection plates |
| Nominal size [mm] | 145 |
| Weight [kg] | 1.15 |
| Length of the carriage Lca [mm] | 190 |
| Lubrication type | LCF, LCO |
| Dimension A (profiled rail systems) [mm] | 145 |
| Dimension C [mm] | 20 |
| Dimension D1 [mm] | 27 |
| Dimension D2 [mm] | 40 |
| Dimension E H7 [mm] | 12 |
| Dimension E H7 thread depth [mm] | 2.1 |
| Dimension E H7 thread depth (text) | deep |
| Dimension E H7 with thread depth | 12 mm ‒ 2.1 mm deep |
| Dimension E1 [mm] | 40 |
| Dimension E1 tolerance [mm] | ±0.01 |
| Dimension E2 [mm] | 20 |
| Dimension E2 tolerance [mm] | ±0.01 |
| Dimension E3 (profiled rail systems) [mm] | 20 |
| Dimension E3 tolerance [mm] | ±0.01 |
| Dimension F H7 [mm] | 6 |
| Dimension F H7 thread depth [mm] | 12 |
| Dimension F H7 thread depth (text) | deep |
| Dimension F H7 with thread depth | 6 mm ‒ 12 mm deep |
| Dimension F1 [mm] | 62 |
| Dimension F1 tolerance [mm] | ±0.01 |
| Dimension F2 [mm] | 35 |
| Dimension F2 tolerance [mm] | ±0.01 |
| Dimension G1 [mm] | 9.5 |
| Dimension G2 [mm] | 5.2 |
| Dimension G3 [mm] | 7.3 |
| Dimension G4 [mm] | 2.5 |
| Dimension G5 [mm] | 4.8 |
| Dimension H1 (profiled rail systems) [mm] | 8 |
| Dimension H2 (profiled rail systems) [mm] | 16.5 |
| Dimension H3 [mm] | 3.5 |
| Dimension H4 [mm] | 9.8 |
| Dimension H5 [mm] | 26 |
| Dimension H6 [mm] | 12.5 |
No matching specifications
R037550010: frequently asked questions
When can R037550010 be shipped?
R037550010 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R037550010 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R037550010 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R037550010, subject to availability and destination.
