Bosch Rexroth R037531002

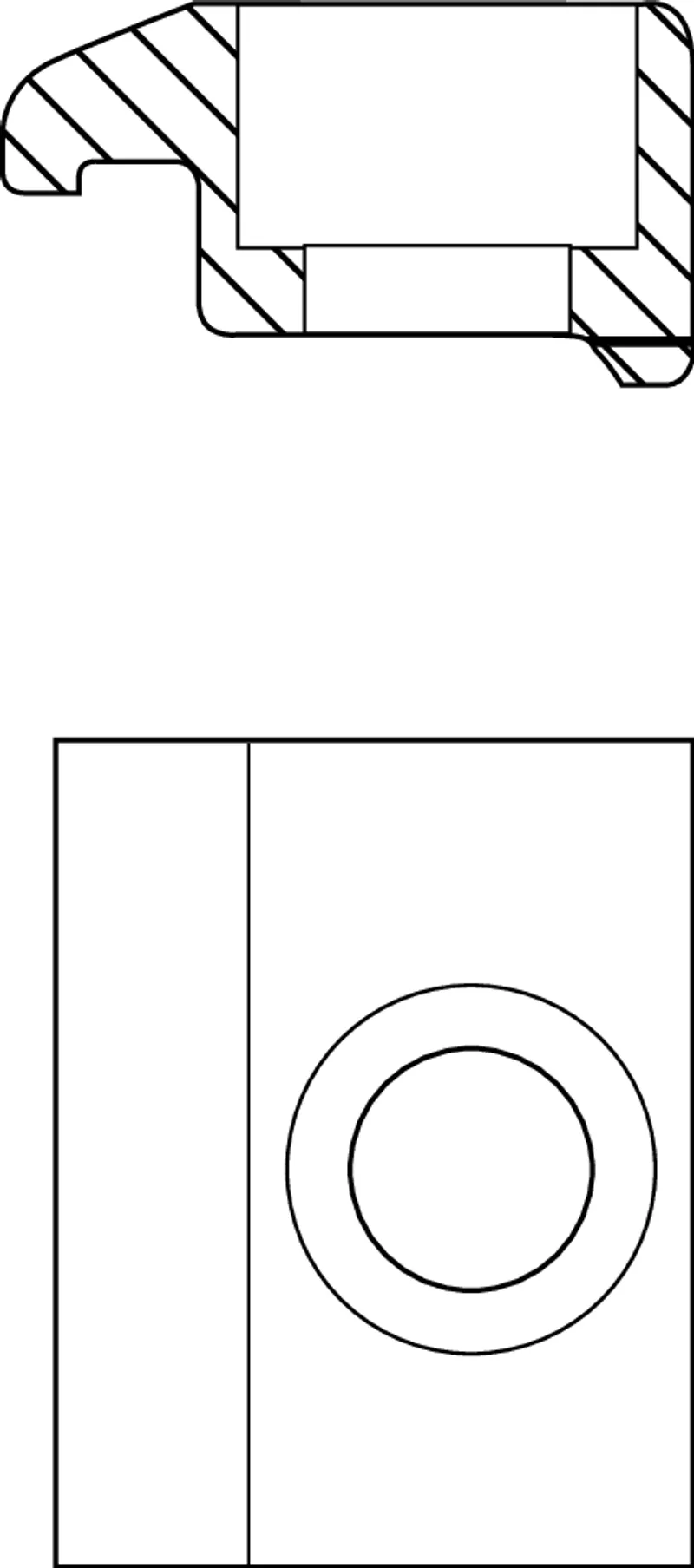

CLAMPING PIECE CKX 12-90

MPN: R037531002
Category: Mechanical accessories for linear axes

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R037531002?

Bosch Rexroth CLAMPING PIECE CKX 12-90, manufacturer part number R037531002. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Mechanical accessories for linear axes	Clamping fixtures
Nominal size [mm]	CKK-/CKR-090
Type	3
Number of bores N	4
Tightening torque of fastening screws [Nm]	2.7
Outer diameter D [mm]	9.0
Weight [kg]	0.03
Tightening torque of fixing screws footnote	at friction factor 0.125, in accordance with strength class 8.8

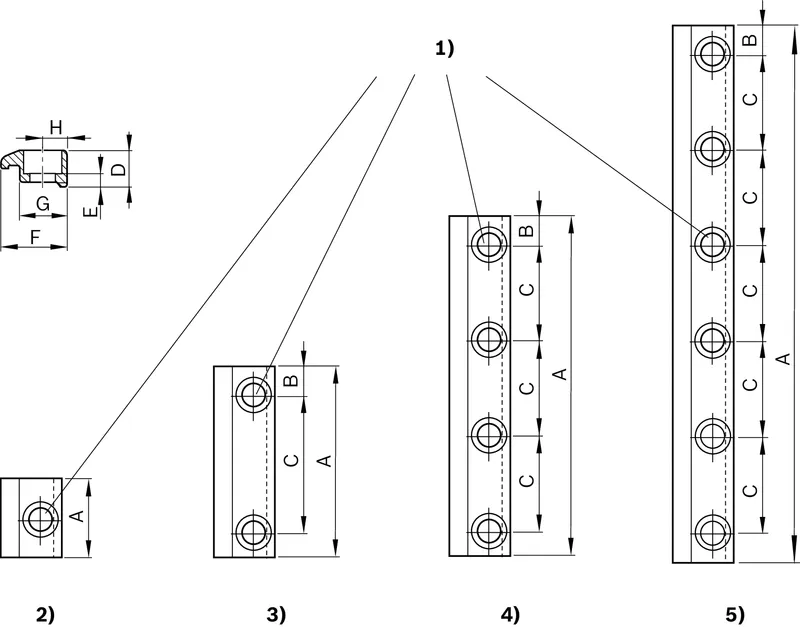

Dimension A (profiled rail systems) [mm]	87
Dimension B (profiled rail systems) [mm]	6
Dimension C [mm]	25
Dimension D [mm]	9
Dimension E [mm]	4.6
Dimension F [mm]	14.5
Dimension G [mm]	10.5
Thread Dimension	M4
Dimension H [mm]	5.0
Footnote Dimension for thread	Countersink ISO 4762
