Bosch Rexroth R037530015

CONNECTING PLATE CKK 12-90 K BG

MPN
R037530015
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Bosch Rexroth parts? We buy surplus →

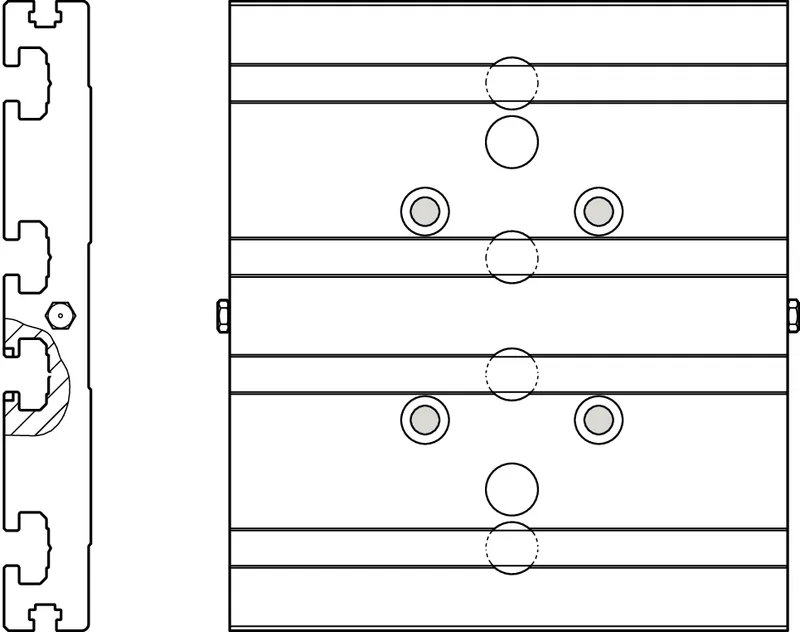

What is the Bosch Rexroth R037530015?

Fastening of attachments (with sliding blocks)

Lubrication of the ball rail system and the ball screw assembly possible via the connection plate

For lube version LSS, LPG

Specifications

Specifications

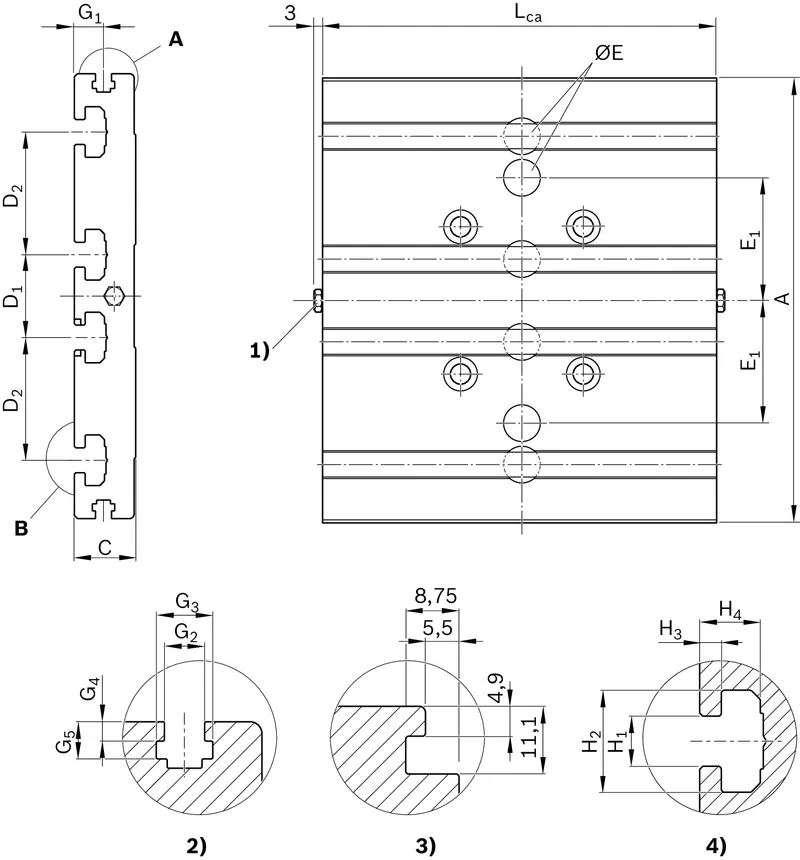

Mechanical accessories for linear axesConnection plates
Nominal size [mm]090
Weight [kg]0.18
Length of the carriage Lca [mm]60
Dimension A (profiled rail systems) [mm]90
Dimension C [mm]16
Dimension D1 [mm]20
Dimension D2 [mm]20
Dimension E H7 [mm]9
Dimension E H7 thread depth [mm]2.1
Dimension E H7 thread depth (text)deep
Dimension E H7 with thread depth9 mm ‒ 2.1 mm deep
Dimension E3 (profiled rail systems) [mm]20
Dimension E3 tolerance [mm]±0.01
Dimension G1 [mm]7.6
Dimension G2 [mm]4.2
Dimension G3 [mm]7.3
Dimension G4 [mm]2
Dimension G5 [mm]4.3
Dimension H1 (profiled rail systems) [mm]6
Dimension H2 (profiled rail systems) [mm]12
Dimension H3 [mm]3.5
Dimension H4 [mm]7.7

R037530015: frequently asked questions

When can R037530015 be shipped?

R037530015 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R037530015 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R037530015 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R037530015, subject to availability and destination.
