Bosch Rexroth R02681E004

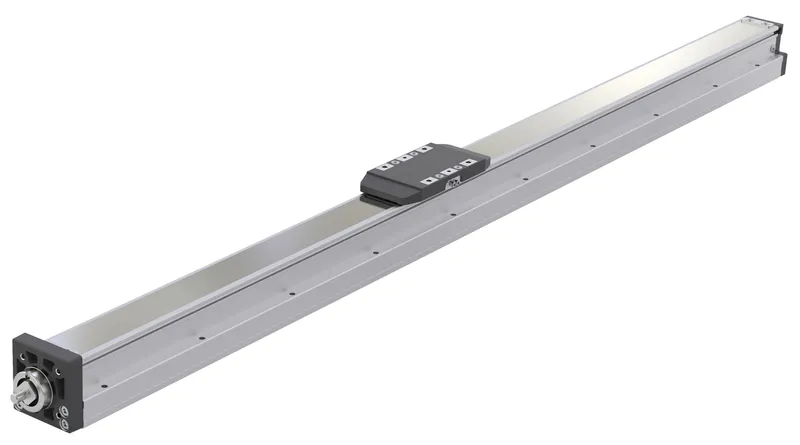

MODULE SMS-050-P10-200

MPN: R02681E004
Category: Small modules SMS

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R02681E004?

The ultra-compact SMS module with threaded screw drive enables highly efficient handling of fixings and is particularly suitable for simple positioning and delivery tasks. The SMS module is also ideal for electrification in cost-sensitive areas or for substitution of pneumatic modules. A large selection of preconfigured variants in commercially available modular lengths can be selected online via a few parameters and are quickly available from stock. Suitable motor attachments, for example, with flange coupling or belt side drive for servo motors or stepping motors, are also optionally available as separate accessories. Furthermore, multi-axis systems can be built from the SMS modules using the connection plate and angle bracket accessories.

Specifications

Nominal size d0 x P [mm]	12 x 10
Nominal size [mm]	SMS-050
Maximum payload vertical [kg]	5.0
Maximum payload horizontal [kg]	24.0
Maximum payload - wall mounting [kg]	24.0
Repeatability [mm]	±0.005
Module width [mm]	54.0
Module height [mm]	60.0
Maximum stroke [mm]	200.0
Maximum acceleration rate amax [m/s²]	3.0
Maximum permissible linear speed vmax [m/s]	0.6
Permissible overhang A at maximum payload horizontal [mm]	148
Permissible overhang B at maximum payload horizontal [mm]	26
Permissible overhang C at maximum payload horizontal [mm]	32
Note: overhang (horizontal installation)	Detailed information on the overhang (e.g. combined overhang, payload levels, etc.) for horizontal installation can be found in catalog R99…
Permissible overhang A at maximum payload vertical [mm]	171
Permissible overhang C at maximum payload vertical [mm]	171
Note: overhang (vertical installation)	Detailed information on the overhang (e.g. combined overhang, payload levels, etc.) for vertical installation can be found in catalog R99…
Permissible overhang A at maximum payload - wall mounting [mm]	32
Permissible overhang B at maximum payload - wall mounting [mm]	26
Permissible overhang C at maximum payload - wall mounting [mm]	148
Note: overhang (wall mounting)	Detailed information on the overhang (e.g. combined overhang, payload levels, etc.) for wall assembly can be found in catalog R99…
Maximum drive torque [Nm]	1.1
Overall length Ltot [mm]	363
Weight [kg]	1.89
