Bosch Rexroth 3842998574
CONVEYOR SECTION ST5/OC
- MPN
- 3842998574
- Category
- Conveyor units with open center
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth 3842998574?

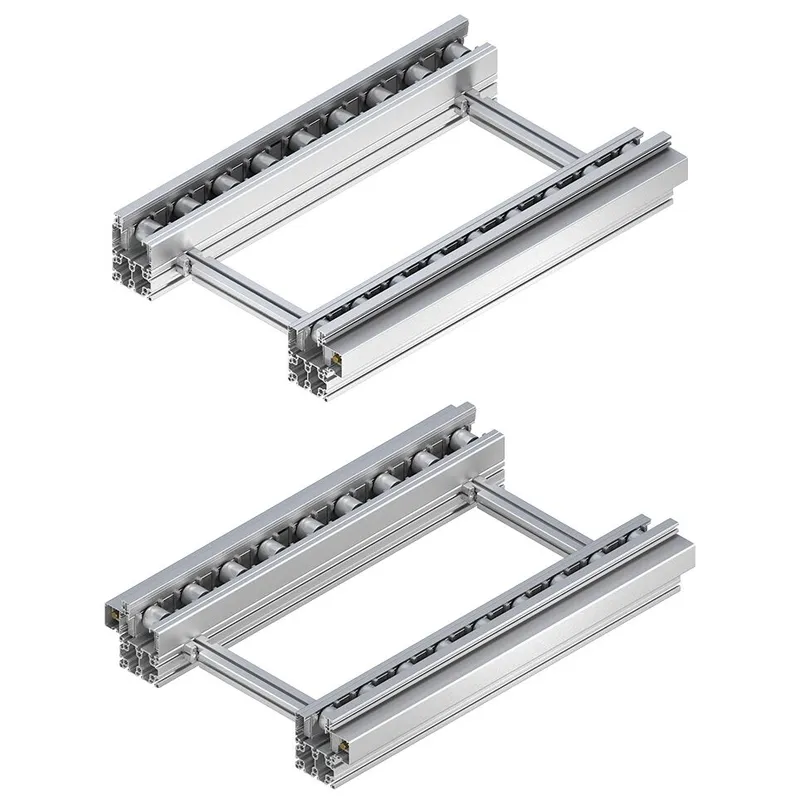

ST 5/OC conveyor unit
The conveyor unit is a ready-for-operation module used to transport workpiece pallets
The open center allows processes from below
Reversible operation possible
Accumulation operation possible
Support profile made of anodized aluminum
Permissible section load: 380 kg/m
Lateral guide profile made of steel, polymer, or aluminum in an anodized aluminum support
Driven via king shaft with bevel wheels made of polymer or sintered metal
Suitable for clean room of ISO class 7
Suitable for dry room <1% RH

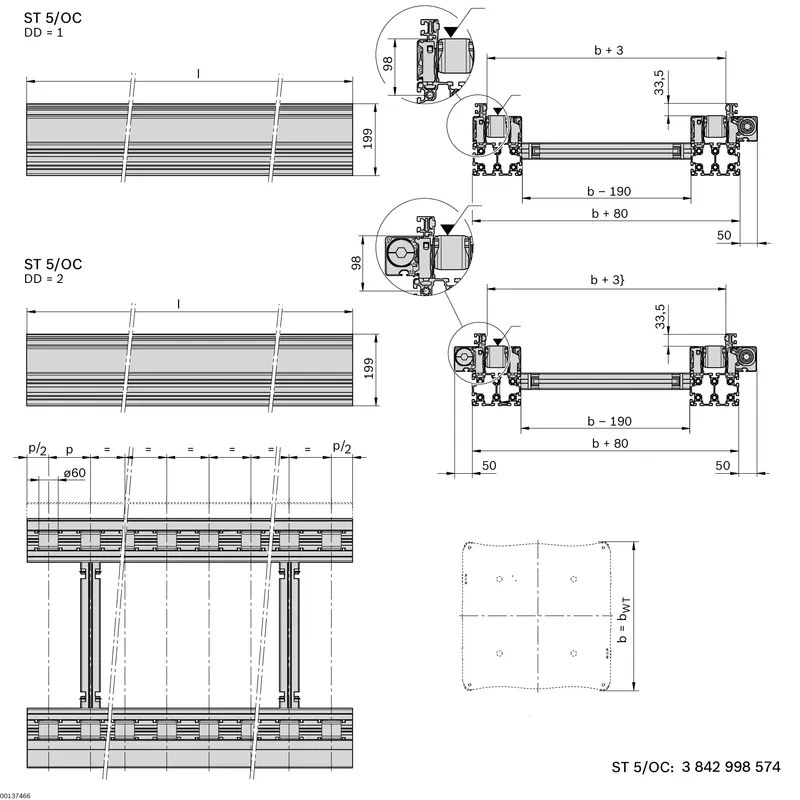

Specifications
Specifications
| Length max [l max] [mm] | 390 |
| Length min [L min] [mm] | 4160 |
| Lateral guide material [LG] | 1 = Stahl; 2 = Kunststoff; 3 = Aluminium |
| Roller material [TR] | 1 = Stahl, verzinkt; 2 = Stahl, nitrocarburiert |
| Number of rollers [N] | 3; 4; 5 ... 32 |
| Workpiece pallet length [lWT] [mm] | 1040; 455; 650; 845 |
| Delivery information | Ready-to-install |
| Preferred values [mm] | 1040; 455; 650; 845 |
| Material information | Roller: Steel, galvanized or steel, nitrocarburized; Bevel wheel: Plastic or sintered metal; Lateral guide: Steel, plastic or aluminum |
| Required accessories | AS 5/... drive unit; Connection Kits; SZ 5/... leg set |
| Weight [kg] | 0 |
3842998574: frequently asked questions
When can 3842998574 be shipped?
3842998574 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842998574 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842998574 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842998574, subject to availability and destination.
