JUNCTION ASSEMBLY JU 5/XH

MPN: 3842998531
Category: Junctions

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842998531?

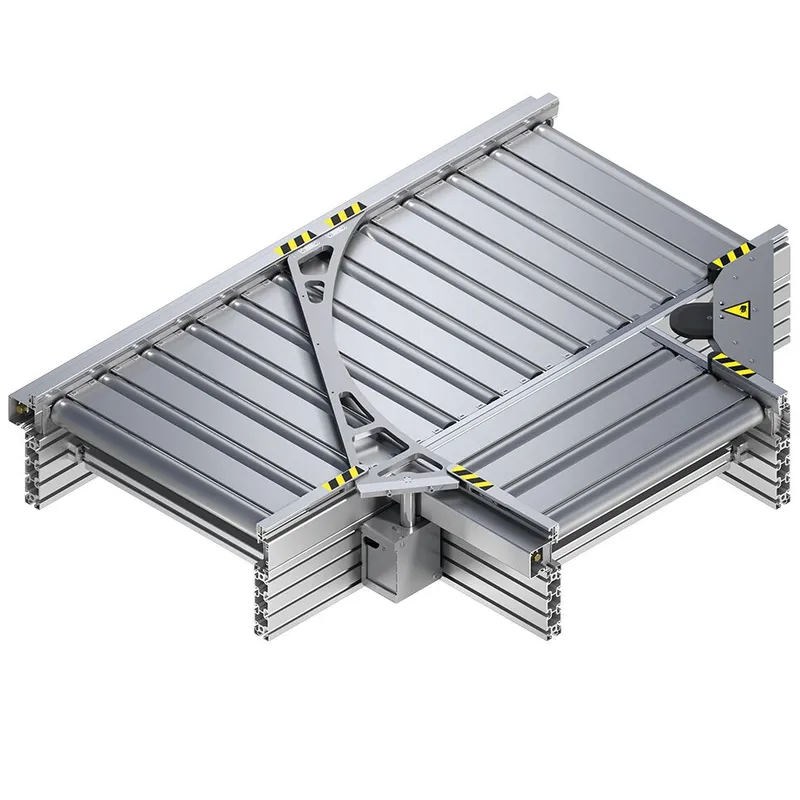

JU 5/XH junction

The junction is a module for branching transport of workpiece pallets

The king shaft installation for the main or secondary section can be installed on either side

The junction is a passive element without any control. The workpiece pallet moves the diverter arm into position

Note: The junction is not suitable for accumulation operation. For permissible loads, see table (under order details).

Reversible operation not permitted

Accumulation operation not permitted

Support profile made of anodized aluminum

Lateral guide profile made of steel, polymer, or aluminum in an anodized aluminum support

Driven via king shaft with bevel gears made of sintered metal

Roller spacing p = 130

Full rollers

m G Up to 300 kg (at v = 9 m/min)

Specifications

Lateral guide material [LG]	1; 2; 3
Roller material [TR]	1 = Stahl, verzinkt; 2 = Stahl, nitrocarburiert
Number of rollers [N]	13; 15; 17; 13; 15; 17
Workpiece pallet length [lWT] [mm]	1040; 455; 650; 845
Length of main section [l1] [mm]	1300; 1560; 1820
Length of secondary section [l2] [mm]	382.5; 415; 447
Length of secondary section up to center of main section [l3] [mm]	650; 780; 910
Length of secondary section and width of main section [l4] [mm]	1145; 1372.5; 917.5
Track width in direction of transport [b] [mm]	455; 650; 845
Track width [b] [mm]	455; 650; 845
Delivery information	Optional: Protective covers mounted (protective covers cannot be ordered separately); Ready-to-install

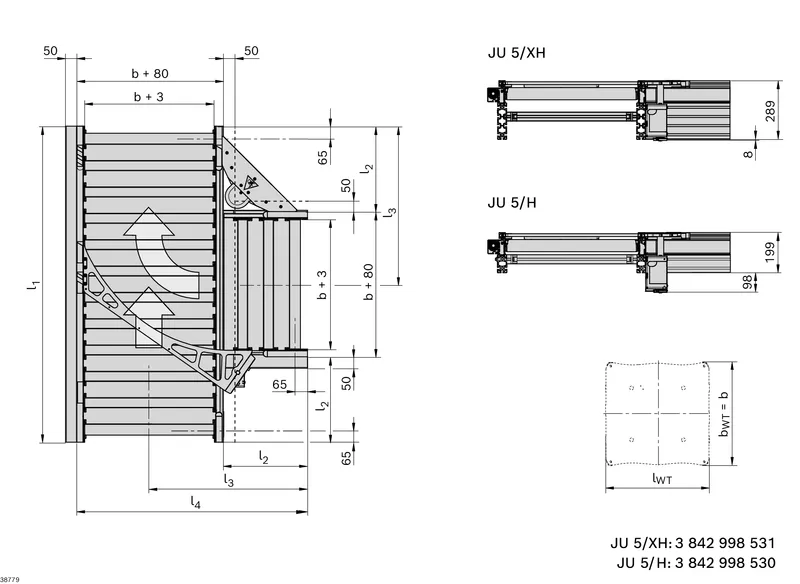

Notice	l<sub>1</sub> = length of main section; l<sub>2</sub> = length of secondary section; l<sub>3</sub> = length of secondary section up to center of main section; l<sub>4</sub> = length of secondary section and width of main section
Weight [kg]	0
