Bosch Rexroth 3842993424

STRUT PROFILE 40X80L 4N

MPN: 3842993424
Category: Strut profile

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842993424?

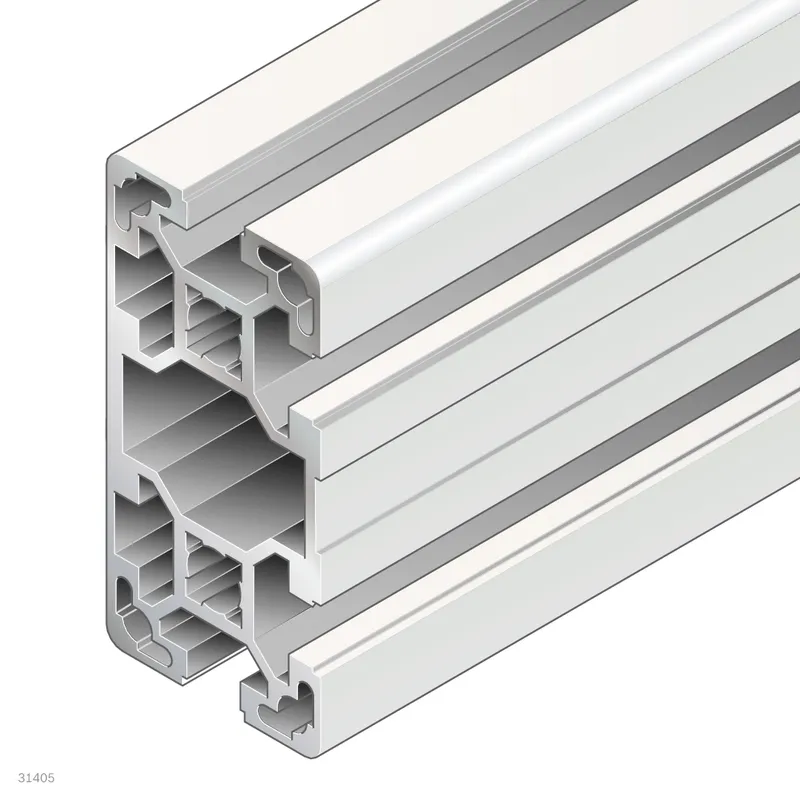

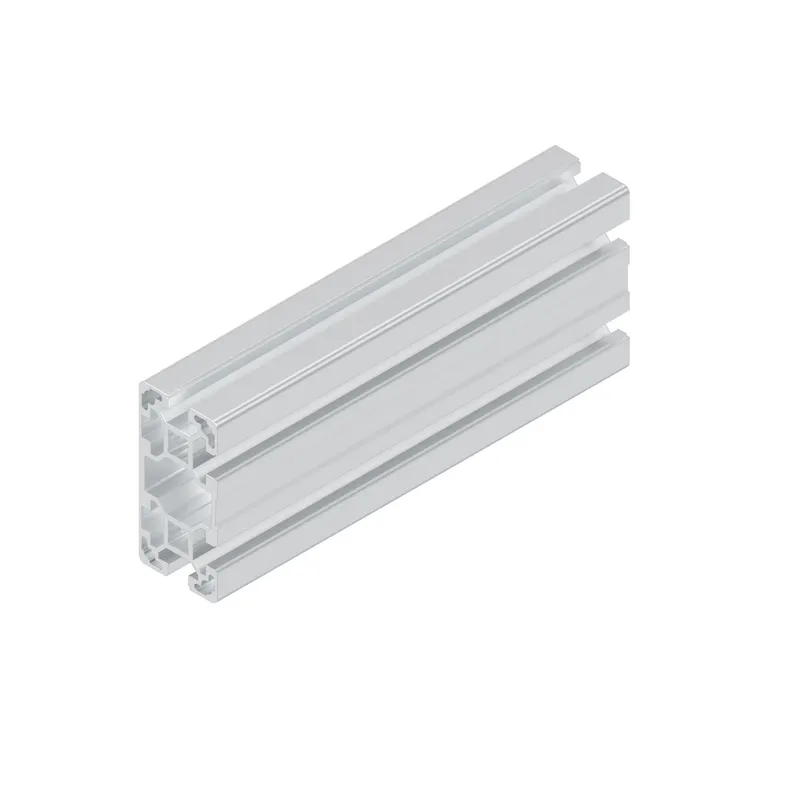

Strut profile 40x80L 4N

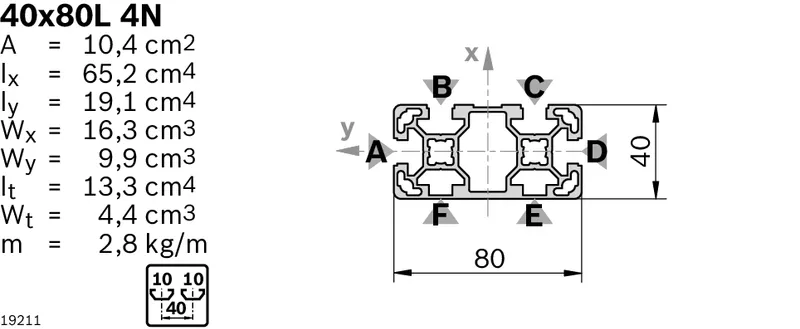

Specifications

Condition on delivery	Variable length
Cross-section	40x80L 4N
Modular dimension [mm]	40
Profile slot	10
ESD	Yes
Dimensions	40x80
Open slots	4.0
Profile type	4N
Color	Natural
Length max [L max] [mm]	6070
Length min [L min] [mm]	50
Packaging unit	1
Mass [m] [kg]	2.8
Area moment of inertia in x-direction [lx] [cm⁴]	65.2
Area moment of inertia in y-direction [ly] [cm⁴]	19.1
Profile surface [A] [cm²]	10.4
Moment of resistance in the x-direction [Wx] [cm³]	16.3
Moment of resistance in the y-direction [Wy] [cm³]	9.9
Torsional moment of inertia [It] [cm⁴]	13.3
Moment of torsion resistance [Wt] [cm³]	4.4
Material	Aluminum, anodized
Recommended accessories	Cover cap 40x80, black; Cover cap 40x80, signal gray; Cover cap with hole 40x80, black; Cover cap with hole 40x80, signal gray
Weight [kg]	0
