What is the Bosch Rexroth 3842993336?

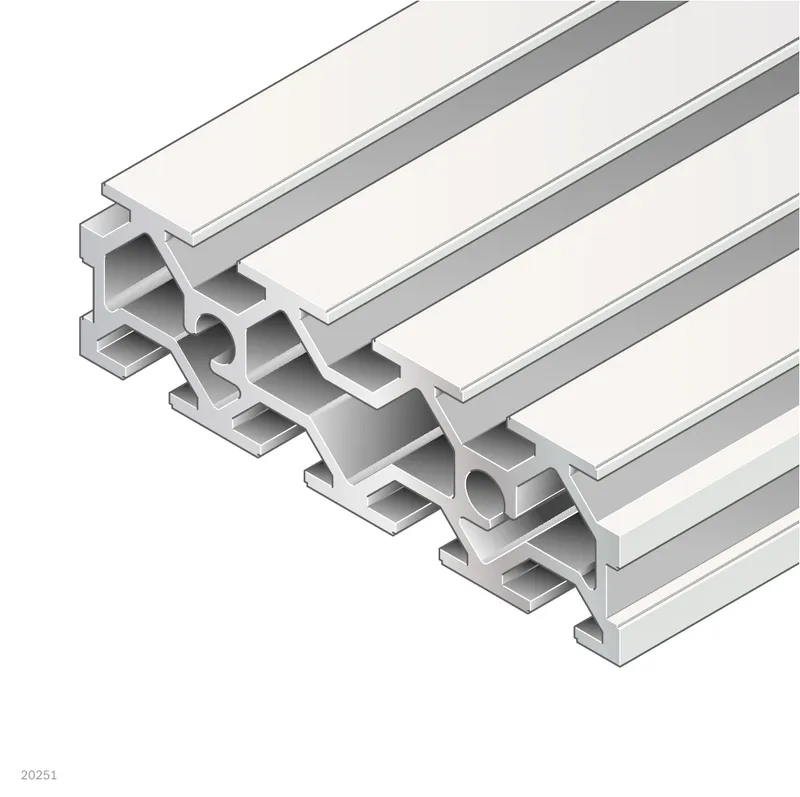

Grooved plate 30x100 M L100-5600

Modular plate profiles with multiple slots for experimental constructions of any dimensions

Slot spacing 25 mm

Slot size 8.9 mm

8 mm slot connectors can be used

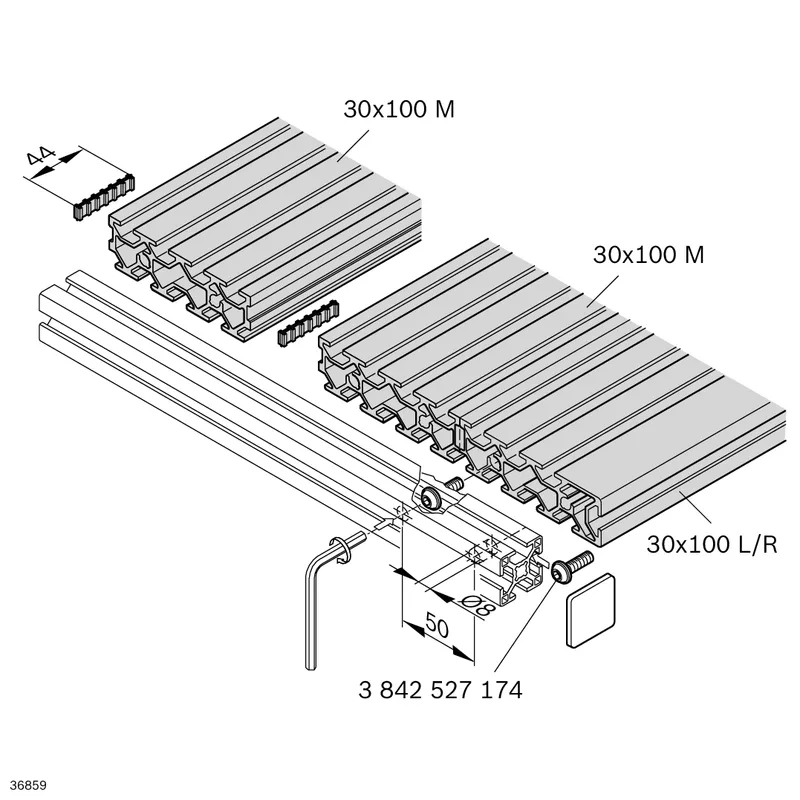

Grooved plate 30x100 L/R with lateral 8 mm slot as outer stop

Grooved plate 30x100 M for constructing grooved plates of any width

Sliding block

For connecting the 30x100 grooved plates

Recommendation: use 3 sliding blocks per meter of profile length

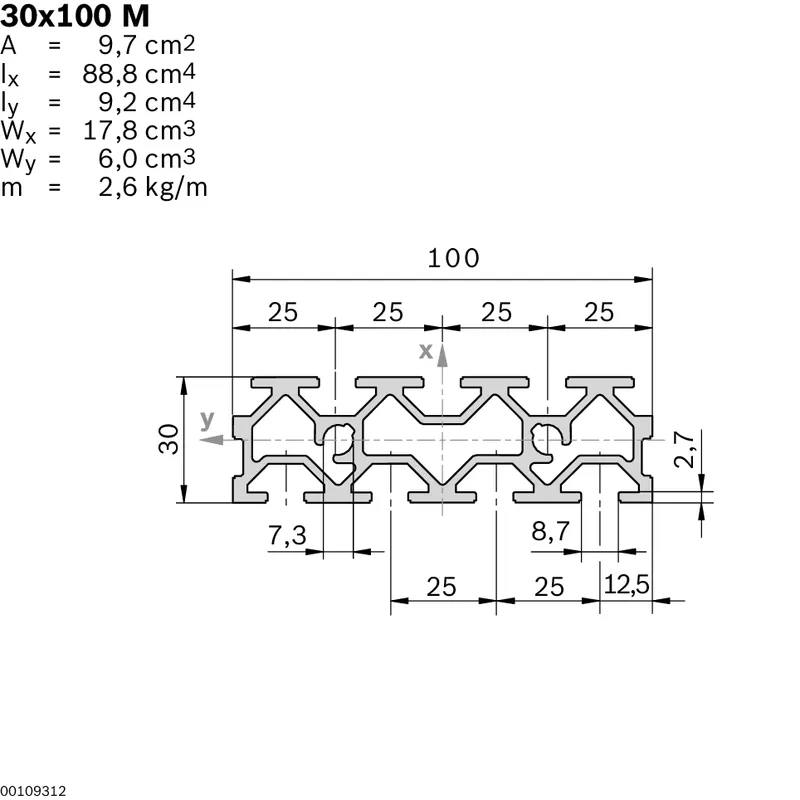

Specifications

Condition on delivery	Variable length
Cross-section	30x100
Modular dimension [mm]	25
Profile slot	8
Open slots	7.0
Profile type	Standard
Delivery unit	1
Length max [L max] [mm]	5600
Length min [L min] [mm]	100
Mass [m] [kg]	2.6
Area moment of inertia in x-direction [lx] [cm⁴]	88.8
Area moment of inertia in y-direction [ly] [cm⁴]	9.2
Profile surface [A] [cm²]	9.7
Moment of resistance in the x-direction [Wx] [cm³]	17.8
Moment of resistance in the y-direction [Wy] [cm³]	6
Material	Aluminum, anodized
Recommended accessories	Profile 30x30; Sliding block
Weight [kg]	0
