Bosch Rexroth 3842993201

STRUT PROFILE 80X120L

MPN: 3842993201
Category: Strut profile

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842993201?

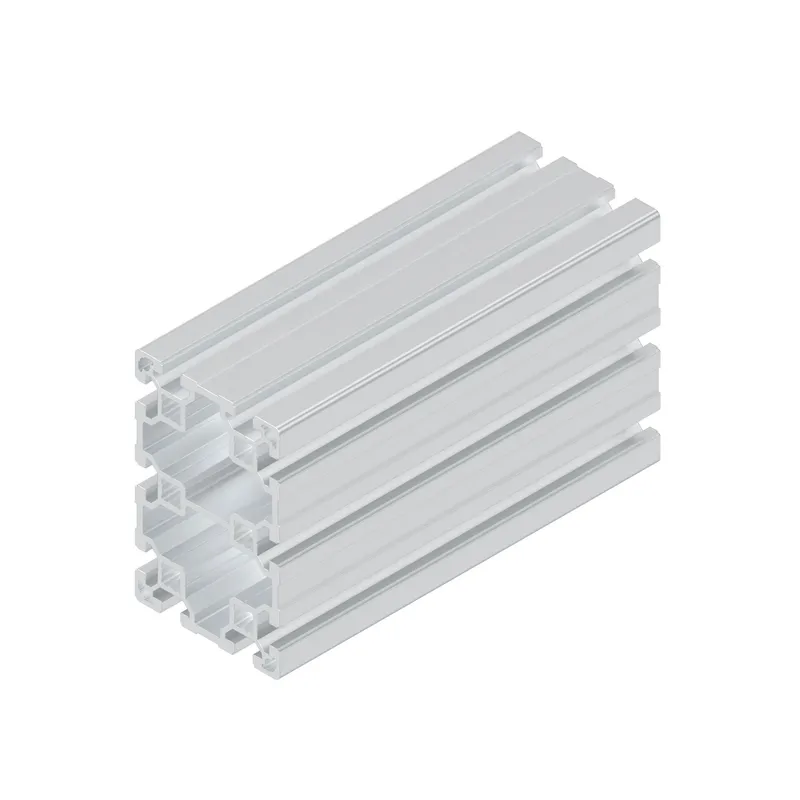

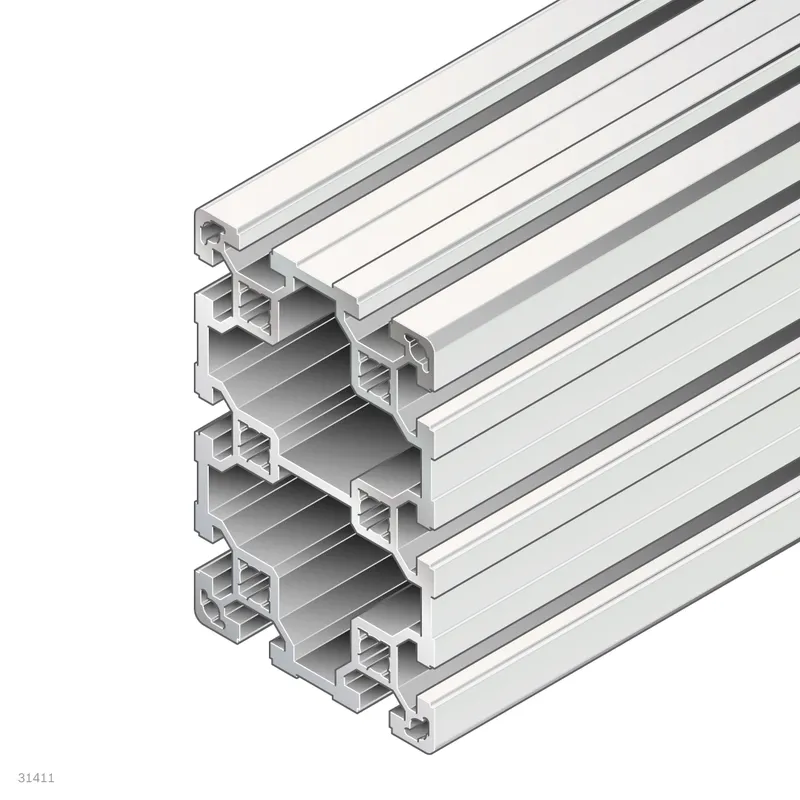

Strut profile 80x120L

Specifications

Condition on delivery	Variable length

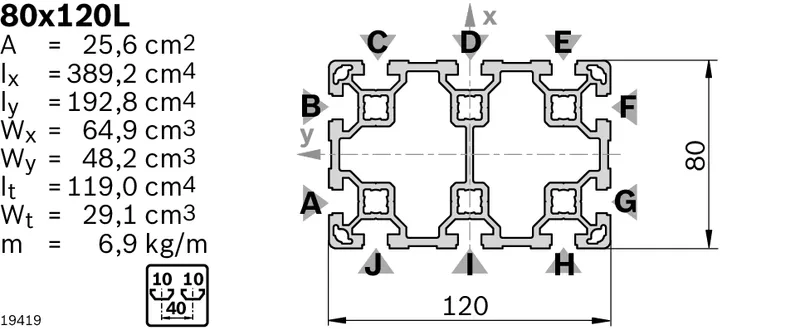

Cross-section	80x120L
Modular dimension [mm]	40
Profile slot	10
ESD	Yes
Dimensions	80x120
Open slots	10.0
Profile type	Standard
Color	Natural
Length max [L max] [mm]	6070
Length min [L min] [mm]	50
Packaging unit	1
Mass [m] [kg]	6.9
Area moment of inertia in x-direction [lx] [cm⁴]	389.2
Area moment of inertia in y-direction [ly] [cm⁴]	192.8
Profile surface [A] [cm²]	25.6
Moment of resistance in the x-direction [Wx] [cm³]	64.9
Moment of resistance in the y-direction [Wy] [cm³]	48.2
Torsional moment of inertia [It] [cm⁴]	119.0
Moment of torsion resistance [Wt] [cm³]	29.1
Profile adaption	D17: in slots C/J, D/I, E/H; D17V: in slots A/G, B/F; M12: in all core holes
Material	Aluminum, anodized
Recommended accessories	Cover cap 80x120, black; Cover cap 80x120, signal gray
Weight [kg]	0
