Bosch Rexroth 3842993196

STRUT PROFILE 50X150L

MPN: 3842993196
Category: Strut profile

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842993196?

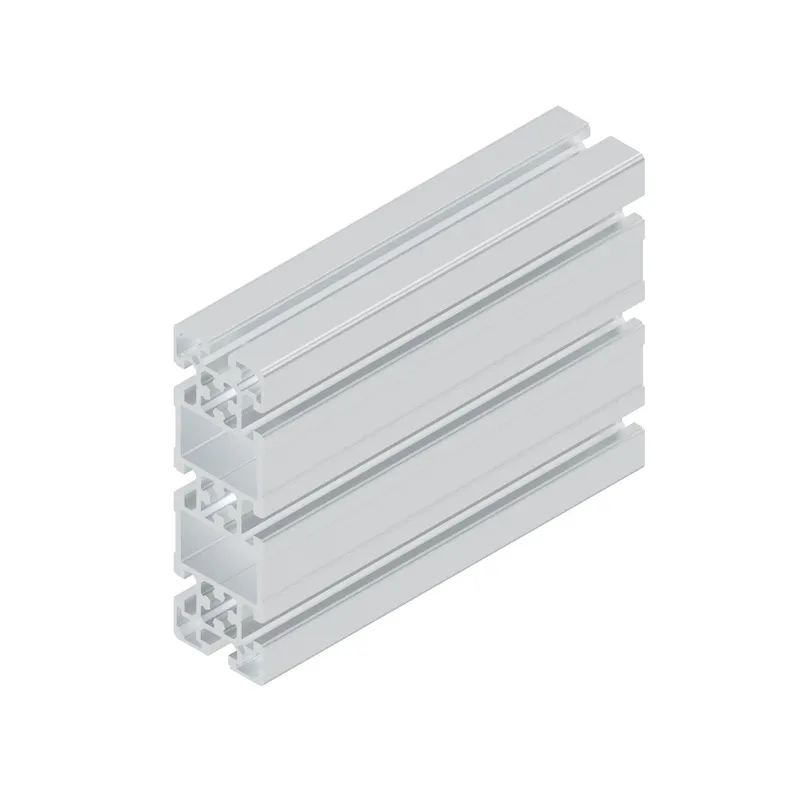

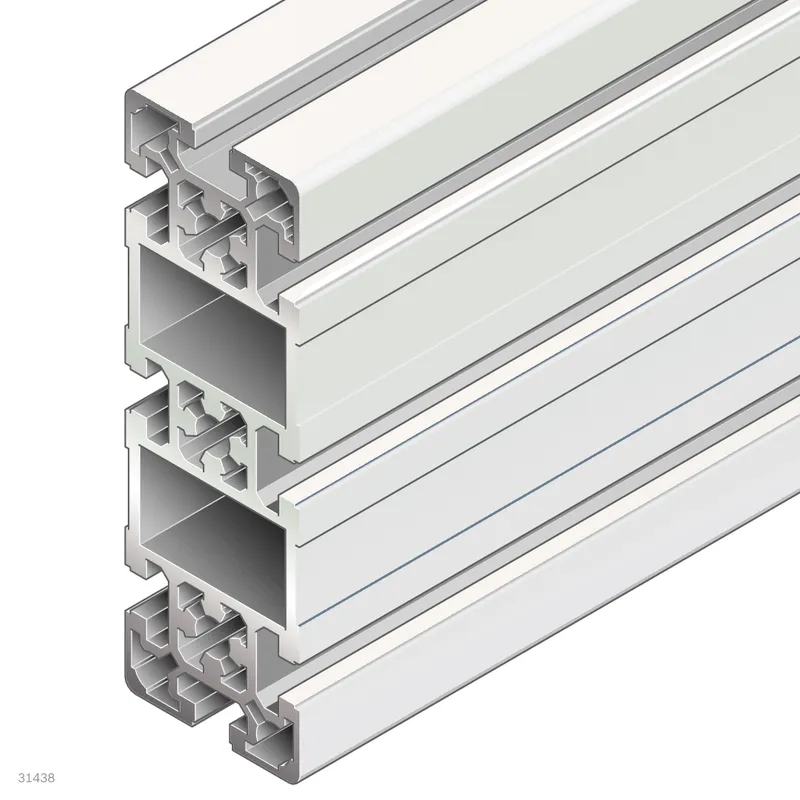

Strut profile 50x150L

Specifications

Condition on delivery	Variable length

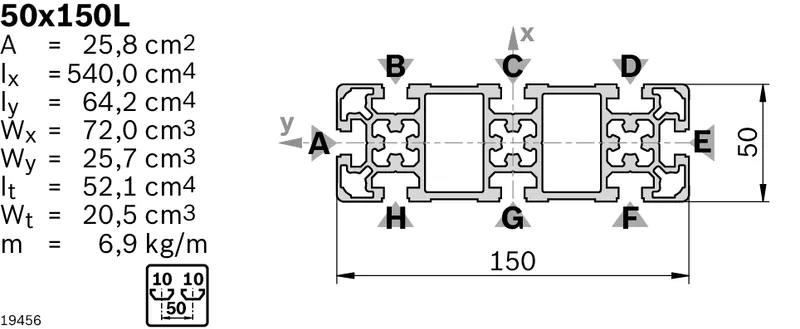

Cross-section	50x150L
Modular dimension [mm]	50
Profile slot	10
Dimensions	50x150
Open slots	8.0
Profile type	Standard
Color	Natural
Length max [L max] [mm]	6070
Length min [L min] [mm]	50
Packaging unit	1
Mass [m] [kg]	6.9
Area moment of inertia in x-direction [lx] [cm⁴]	540
Area moment of inertia in y-direction [ly] [cm⁴]	64.2
Profile surface [A] [cm²]	25.8
Moment of resistance in the x-direction [Wx] [cm³]	72
Moment of resistance in the y-direction [Wy] [cm³]	25.7
Torsional moment of inertia [It] [cm⁴]	52.1
Moment of torsion resistance [Wt] [cm³]	20.5
Material	Aluminum, anodized
Recommended accessories	Cover cap 50x150, signal gray; Mounting hole plug 50x150, black
Weight [kg]	0
