Bosch Rexroth 3842993175

STRUT PROFILE 100X100L D17/

MPN: 3842993175
Category: Strut profile

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842993175?

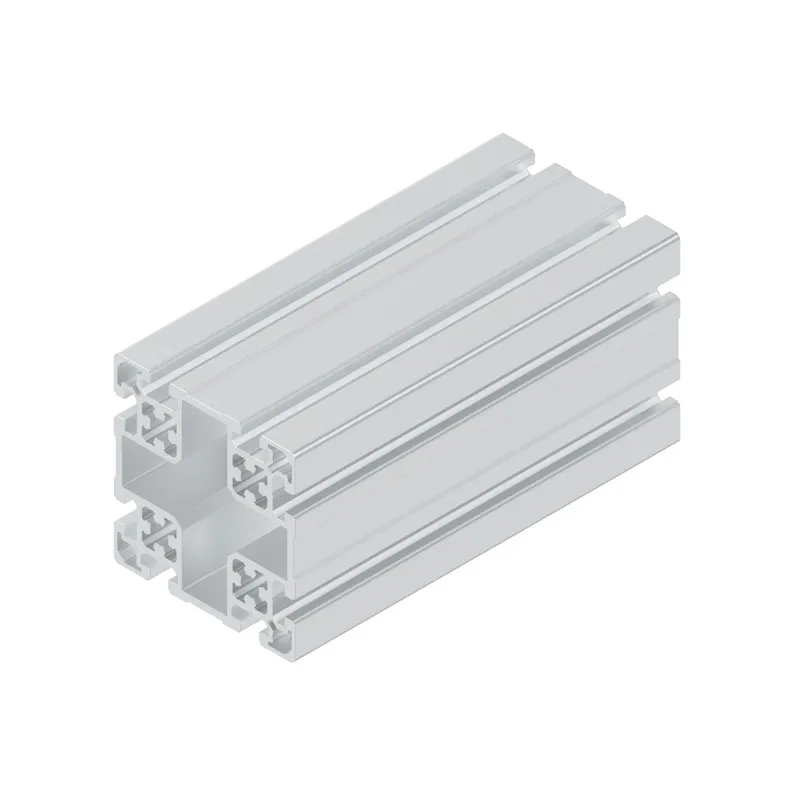

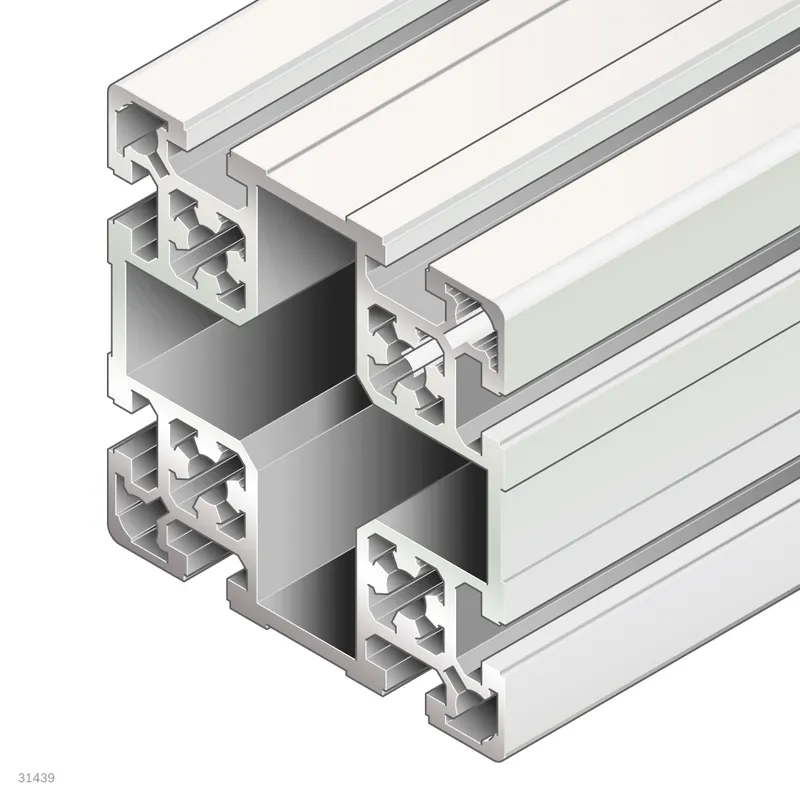

Strut profile 100x100L D17/-

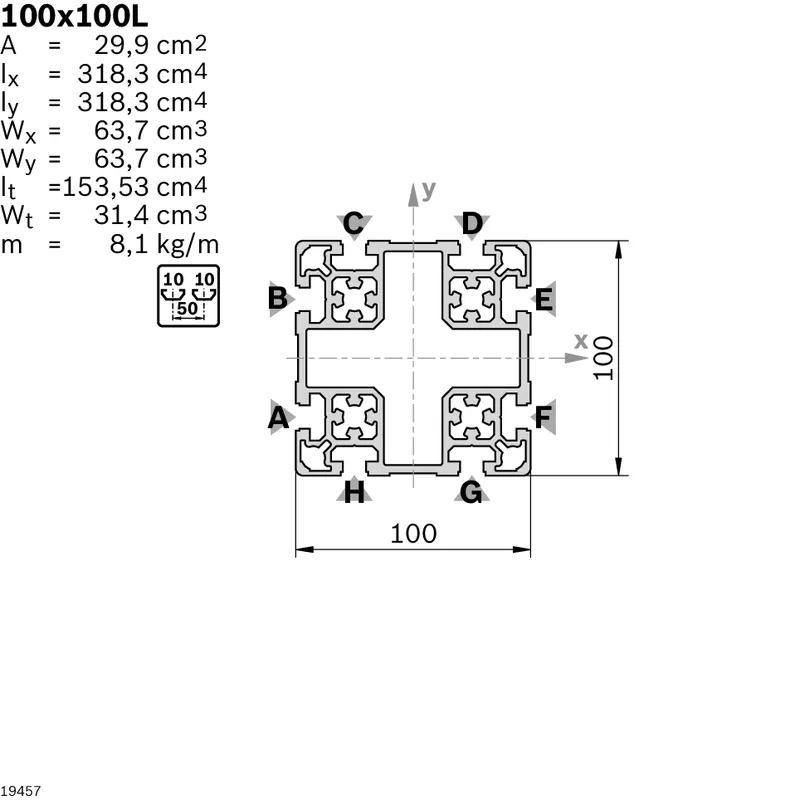

Specifications

Condition on delivery	Profile finishing
Cross-section	100x100L
Modular dimension [mm]	50
Profile slot	10
Dimensions	100x100
Open slots	8.0
Profile type	Standard
Color	Natural
Length max [L max] [mm]	6000
Length min [L min] [mm]	60
Packaging unit	1
Mass [m] [kg]	8.1
Area moment of inertia in x-direction [lx] [cm⁴]	318.3
Area moment of inertia in y-direction [ly] [cm⁴]	318.3
Profile surface [A] [cm²]	29.9
Moment of resistance in the x-direction [Wx] [cm³]	63.7
Moment of resistance in the y-direction [Wy] [cm³]	63.7
Torsional moment of inertia [It] [cm⁴]	153.53
Moment of torsion resistance [Wt] [cm³]	31.4
Profile adaption	D17: in slots C/H, D/G; D17V: in slots A/F, B/E; M12: in all core holes
Material	Aluminum, anodized
Recommended accessories	Cover cap 100x100, black; Cover cap 100x100, signal gray
Weight [kg]	0
