Bosch Rexroth 3842993155

STRUT PROFILE 80X160L D17/D17

MPN: 3842993155
Category: Strut profile

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842993155?

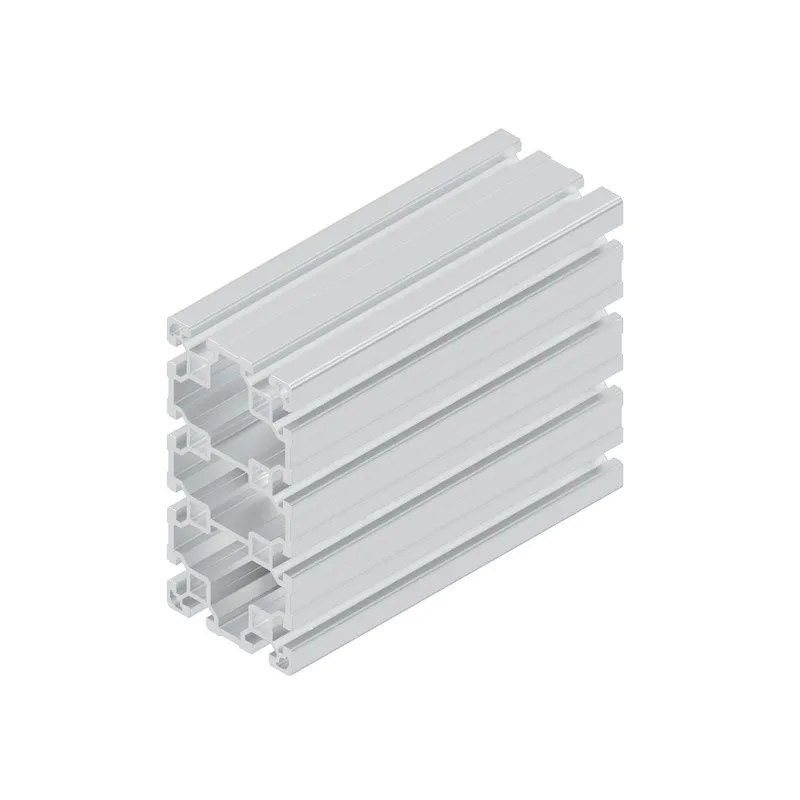

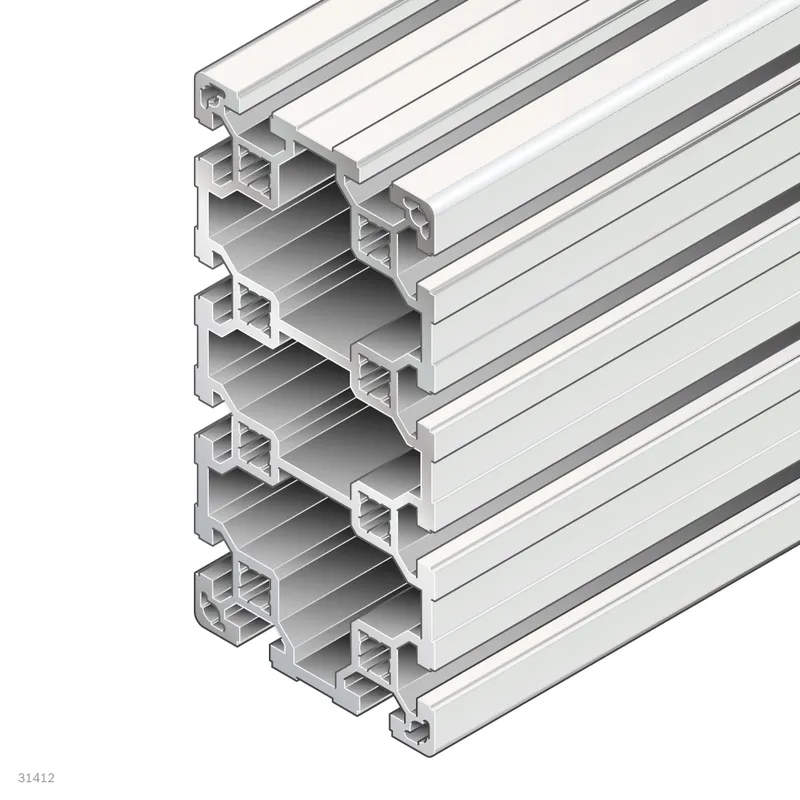

Strut profile 80x160L D17V/D17

Specifications

Condition on delivery	Profile finishing

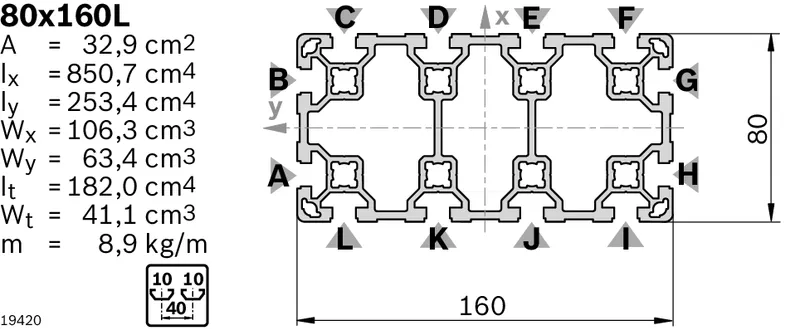

Cross-section	80x160L
Modular dimension [mm]	40
Profile slot	10
ESD	Yes
Dimensions	80x160
Open slots	12.0
Profile type	Standard
Color	Natural
Length max [L max] [mm]	6000
Length min [L min] [mm]	80
Packaging unit	1
Mass [m] [kg]	8.9
Area moment of inertia in x-direction [lx] [cm⁴]	850.7
Area moment of inertia in y-direction [ly] [cm⁴]	253.4
Profile surface [A] [cm²]	32.9
Moment of resistance in the x-direction [Wx] [cm³]	106.3
Moment of resistance in the y-direction [Wy] [cm³]	63.4
Torsional moment of inertia [It] [cm⁴]	182.0
Moment of torsion resistance [Wt] [cm³]	41.1
Profile adaption	D17: in slots C/L, D/K, E/J, F/I; D17V: in slots A/H, B/G; M12: in all core holes
Material	Aluminum, anodized
Recommended accessories	Cover cap 80x80, signal gray; Mounting hole plug 80x80, black
Weight [kg]	0
