STRUT PROFILE ECO FLOW MV45X45
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | EcoFlow individual parts |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 3842993029 be shipped?
3842993029 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842993029 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842993029 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842993029, subject to availability and destination.

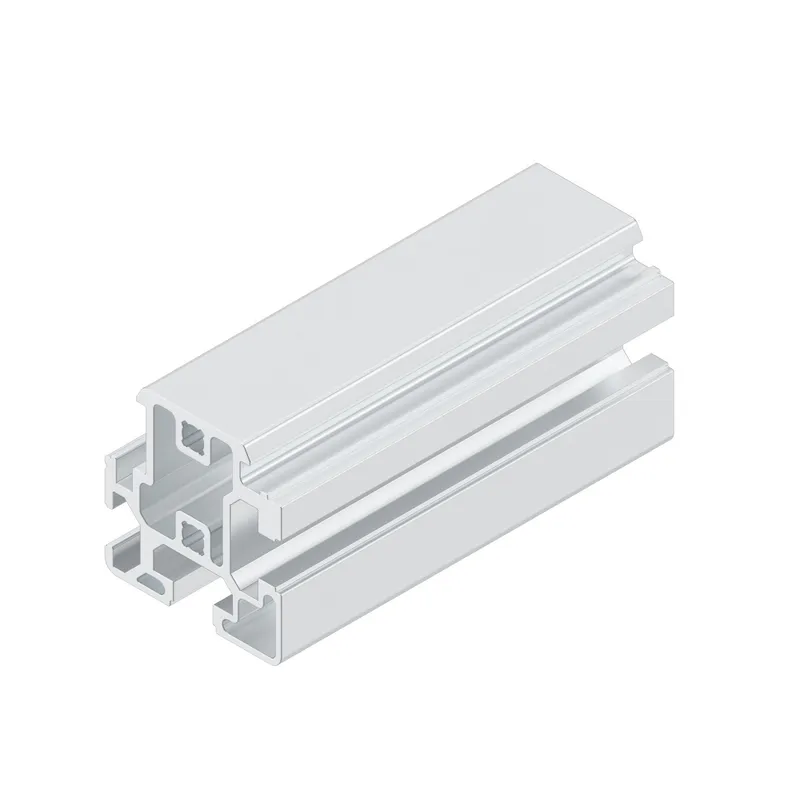

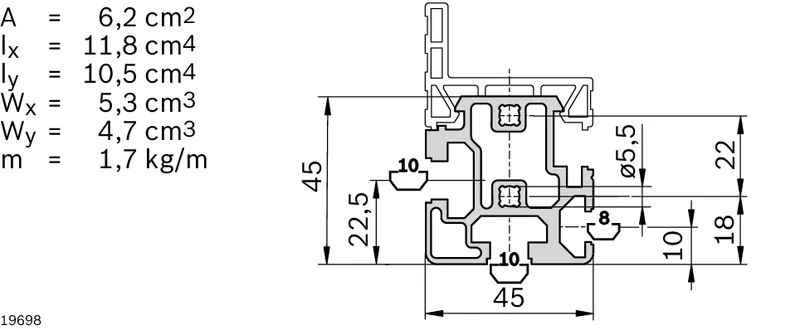

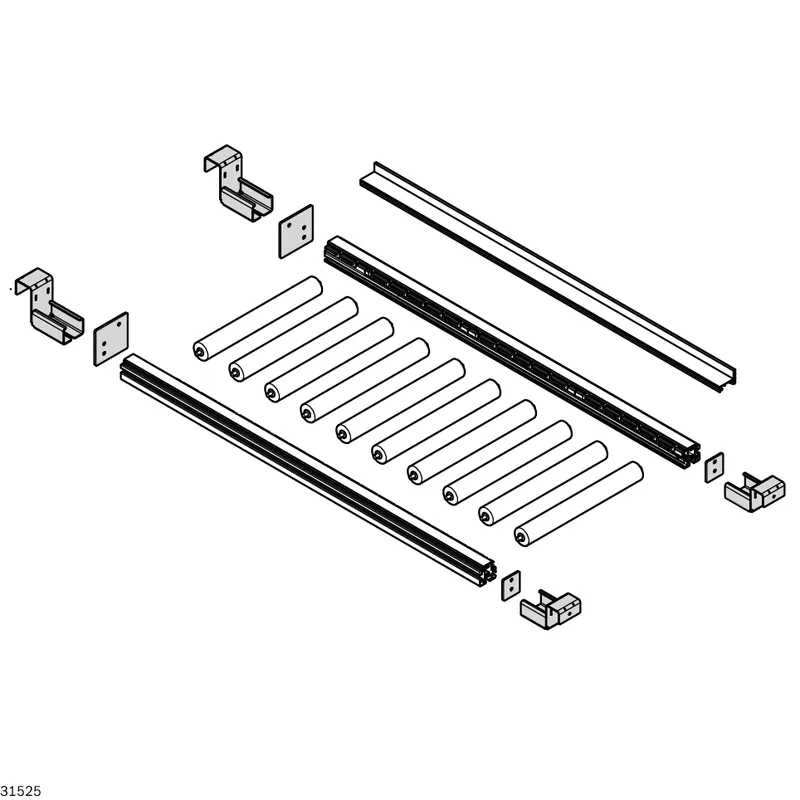

Section profile MV45x45, L30-6070 Based on EcoFlow section profile For manual slide sections with rollers Clip-in guide profiles with lateral guide and clip-in conveyor rollers
Specifications
Specifications
| Condition on delivery | Variable length |
| Profile slot | 8, 10 |
| Delivery unit | 1 |
| Length max [L max] [mm] | 6070 |
| Length min [L min] [mm] | 70 |
| Mass [m] [kg] | 1.7 |
| Area moment of inertia in x-direction [lx] [cm⁴] | 11.8 |
| Area moment of inertia in y-direction [ly] [cm⁴] | 10.5 |
| Profile surface [A] [cm²] | 6.2 |
| Moment of resistance in the x-direction [Wx] [cm³] | 5.3 |
| Moment of resistance in the y-direction [Wy] [cm³] | 4.7 |
| Material | Aluminum, anodized |
| Weight [kg] | 0 |
