Bosch Rexroth 3842992884

SECTION PROFILE SP 2/B

MPN: 3842992884
Category: Components of belt and toothed belt conveyor units

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

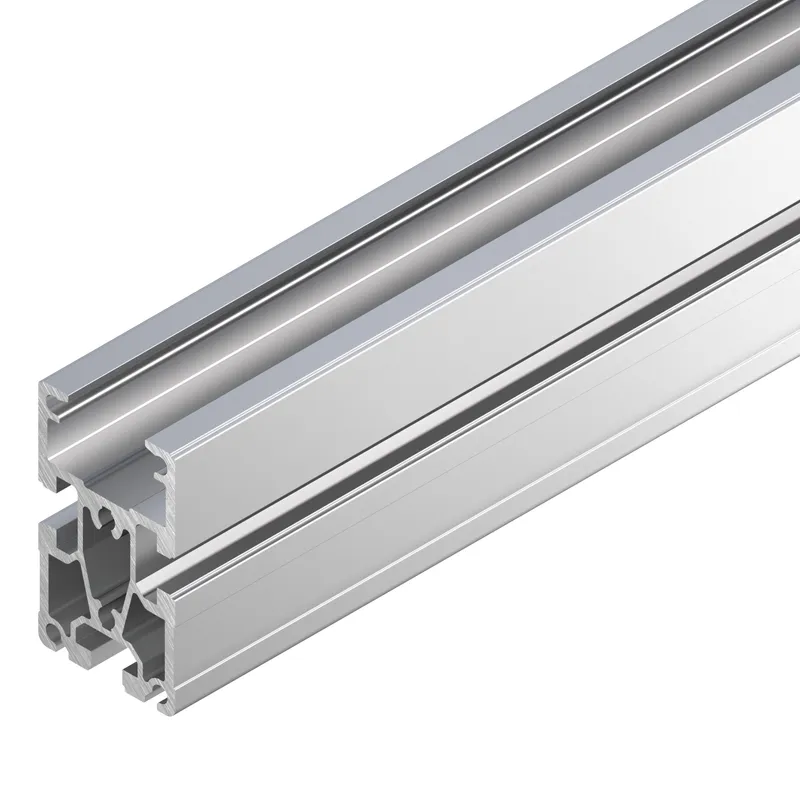

What is the Bosch Rexroth 3842992884?

SP 2/B Section Profile

Used for self-construction of low-profile conveyor units and the conveyor medium belt

For use in conjunction with all AS 2/B-... drive modules, UM 2/B return units and FP 2/B guide profiles

Longitudinal grooves for easy mounting

To be used in ST 2/B sections

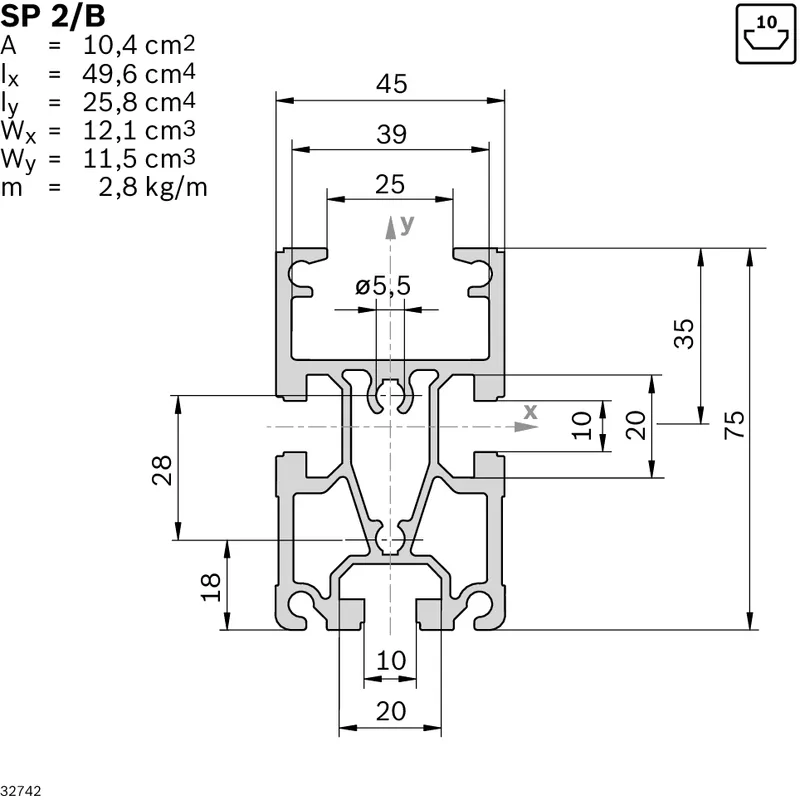

Specifications

Condition on delivery	Variable length
Profile slot	10
Color	Natural
Length max [L max] [mm]	6000
Length min [L min] [mm]	60
Mass [m] [kg]	2.8
Area moment of inertia in x-direction [lx] [cm⁴]	49.6
Area moment of inertia in y-direction [ly] [cm⁴]	25.8
Profile surface [A] [cm²]	10.4
Moment of resistance in the x-direction [Wx] [cm³]	12.1
Moment of resistance in the y-direction [Wy] [cm³]	11.5
Material	Aluminum, anodized
Recommended accessories	Cross Connector QV 2; Roller elements
Weight [kg]	0
