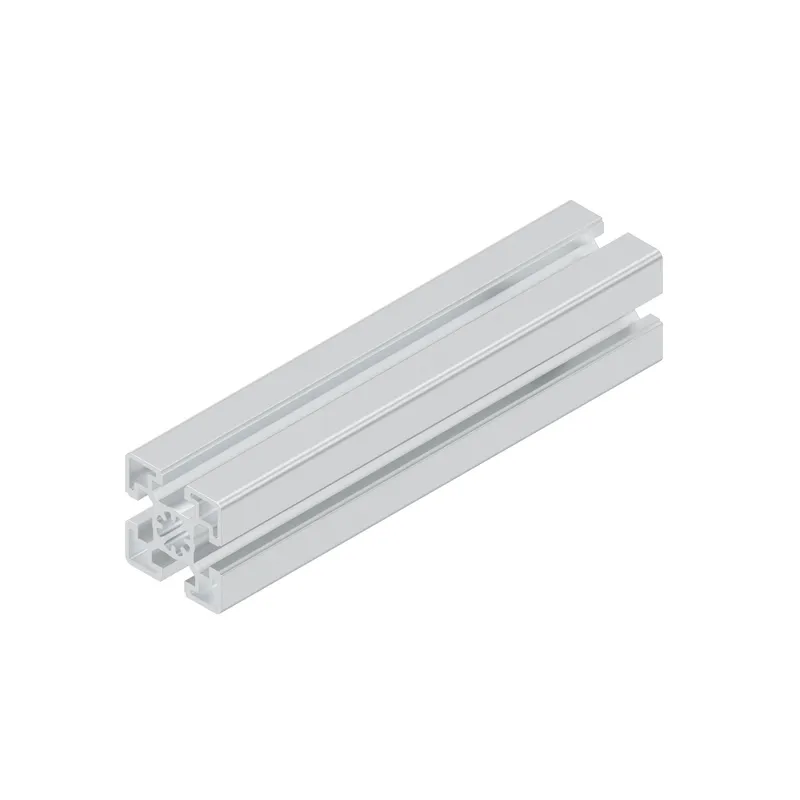

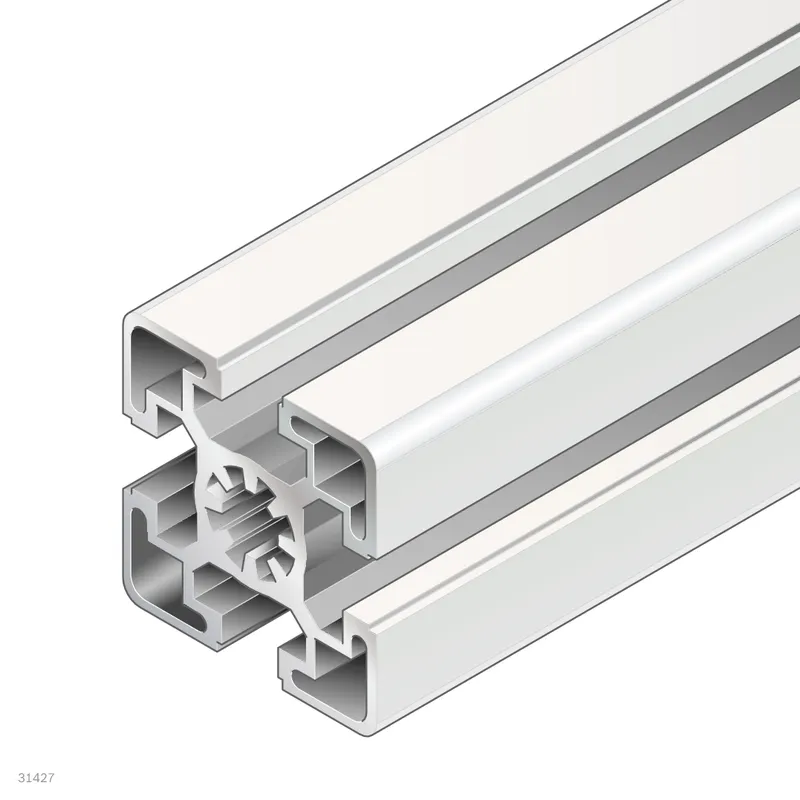

Bosch Rexroth 3842990646

STRUT PROFILE 45X45 D17/D17V

MPN: 3842990646
Category: Strut profile

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842990646?

Strut profile 45x45 D17/D17V

Specifications

Condition on delivery	Profile finishing
Cross-section	45x45
Modular dimension [mm]	45
Profile slot	10
Dimensions	45x45
Open slots	4.0
Profile type	Standard
Color	Natural
Length max [L max] [mm]	6000
Length min [L min] [mm]	80
Packaging unit	1
Mass [m] [kg]	2

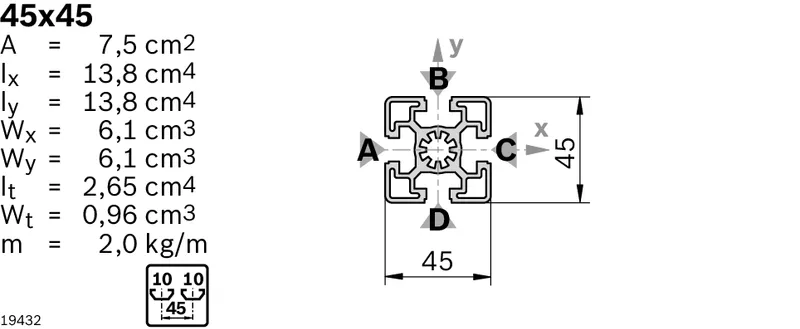

Area moment of inertia in x-direction [lx] [cm⁴]	13.8
Area moment of inertia in y-direction [ly] [cm⁴]	13.8
Profile surface [A] [cm²]	7.5
Moment of resistance in the x-direction [Wx] [cm³]	6.1
Moment of resistance in the y-direction [Wy] [cm³]	6.1
Torsional moment of inertia [It] [cm⁴]	2.65
Moment of torsion resistance [Wt] [cm³]	0.96
Material	Aluminum, anodized
Recommended accessories	Cap with hole 45x45, black; Cover cap 45x45, black; Cover cap 45x45, signal gray; Cover cap with hole 45x45, signal gray
Weight [kg]	0
