Bosch Rexroth 3842990098

STRUT PROFILE 60X90 D17V/D17V

MPN: 3842990098
Category: Strut profile

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842990098?

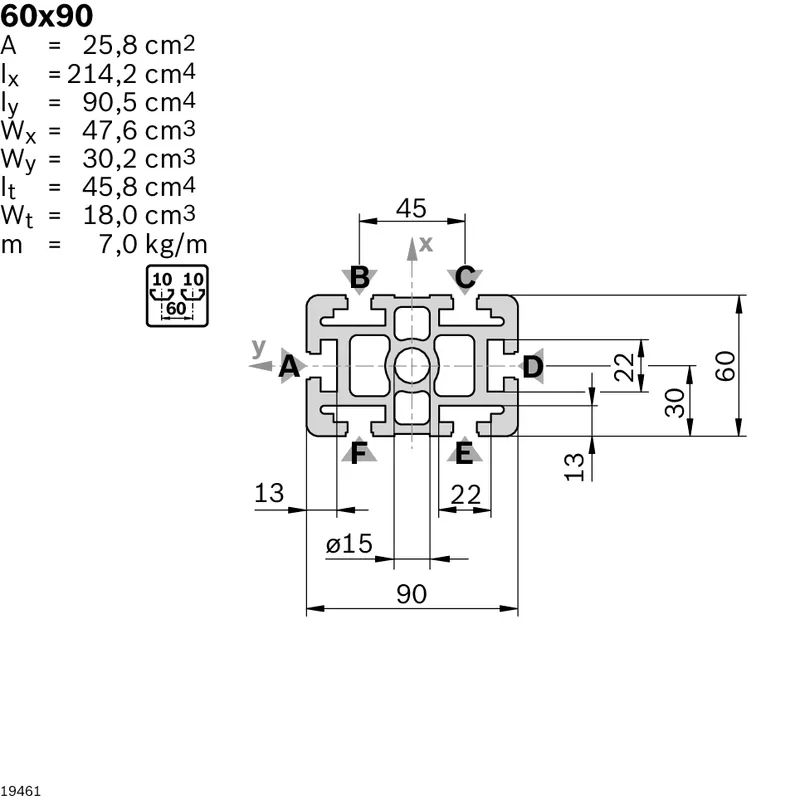

Strut profile 60x90 D17V/D17V

Specifications

Condition on delivery	Profile finishing
Cross-section	60x90
Modular dimension [mm]	60
Profile slot	10
Dimensions	60x90
Open slots	6.0
Profile type	Standard
Color	Natural
Length max [L max] [mm]	6000
Length min [L min] [mm]	90
Packaging unit	1
Mass [m] [kg]	7
Area moment of inertia in x-direction [lx] [cm⁴]	214.2
Area moment of inertia in y-direction [ly] [cm⁴]	90.5
Profile surface [A] [cm²]	25.8
Moment of resistance in the x-direction [Wx] [cm³]	47.6
Moment of resistance in the y-direction [Wy] [cm³]	30.2
Torsional moment of inertia [It] [cm⁴]	45.8
Moment of torsion resistance [Wt] [cm³]	18.0
Profile adaption	D17: in slots B/F, C/E; D17V: in slots A/D
Material	Aluminum, anodized
Recommended accessories	Cover cap 60x90, black; Cover cap 60x90, signal gray; Cover cap with hole 60x90, black; Cover cap with hole 60x90, signal gray
Weight [kg]	0
