Bosch Rexroth 3842890885

PRESS MODULE PS70/P/5/S-1D

MPN: 3842890885
Category: Nominal force 70kN

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842890885?

With the press-fit systems, Bosch Rexroth offers a simple, fast and efficient package solution for a wide range of applications with pressing and joining functions.

The press-fit systems are made up of proven Bosch Rexroth components – optimally coordinated, fully wired, including plug-in preparation for safety technology and a browser-based software interface for the simplest commissioning and operation.

The press-fit systems can be used as a stand-alone solution or installed in higher-level systems via fieldbus.

Working range 7.0 … 70.0 kN

Stroke 400 mm

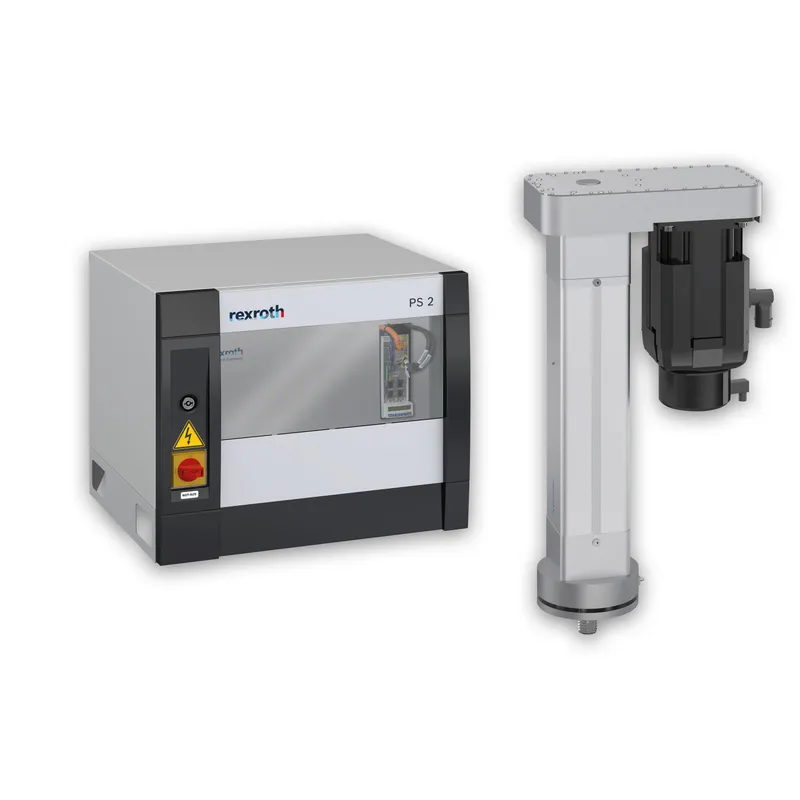

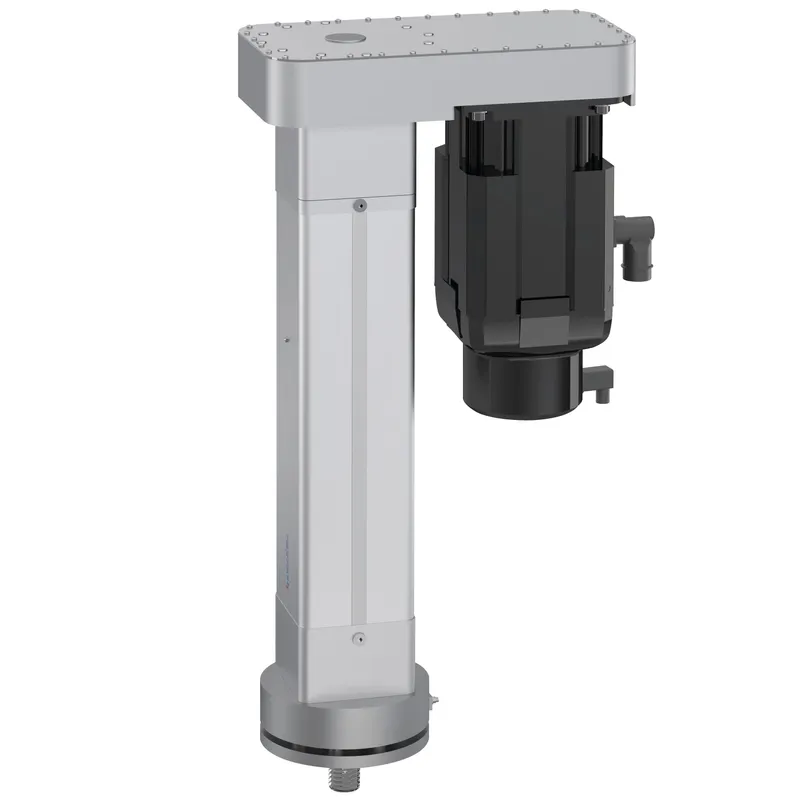

Press spindle with motor, gearbox and force sensor

All system components fully wired in the system box

Force sensor installed on the cylinder, not on the piston rod (no movement)

System box (converter, safety zone module, PR21)

Fieldbus interface: Profinet, Ethernet/IP, EtherCAT, Sercos III

Data interface REST API , OPC-UA

Length of connection cable 5m

Safety device hardware, e.g. two-hand buttons, not included in the scope of delivery

Motor with holding brake

Safety function according to EN 61800-5-2

Safe Torque Off (STO), category 4, performance level e according to EN 13849-1 and SIL 3 according to EN 62061

Specifications

Repetition accuracy (mm)	±0.01
Working range (kN) [kN]	7.0-70
Protection class	IP54
Nominal force (max) [kN]	70.0
Nominal force [kN]	70.0
Max. stroke [mm]	400
Force sensor accuracy (%MB)	±0.25
Max. backlash of the piston rod [arcmin]	1.5
Continuous input current [A]	25.0
Max. tool weight [kg]	50.0
Ambient temperature during operation (°C)	0…50
Lifting velocity (m/s) [m/s]	0.22
Mains connection voltage (V)	3x AC 200…400
Weight [kg]	112
