PRESS MODULE PS30/A/5/S-1L-2D
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Nominal force 30kN |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 3842890869 be shipped?
3842890869 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842890869 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842890869 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842890869, subject to availability and destination.
With the press-fit systems, Bosch Rexroth offers a simple, fast and efficient package solution for a wide range of applications with pressing and joining functions.
The press-fit systems are made up of proven Bosch Rexroth components – optimally coordinated, fully wired, including plug-in preparation for safety technology and a browser-based software interface for the simplest commissioning and operation.
The press-fit systems can be used as a stand-alone solution or installed in higher-level systems via fieldbus.
Working range 3.0 … 30.0 kN
Stroke 400 mm

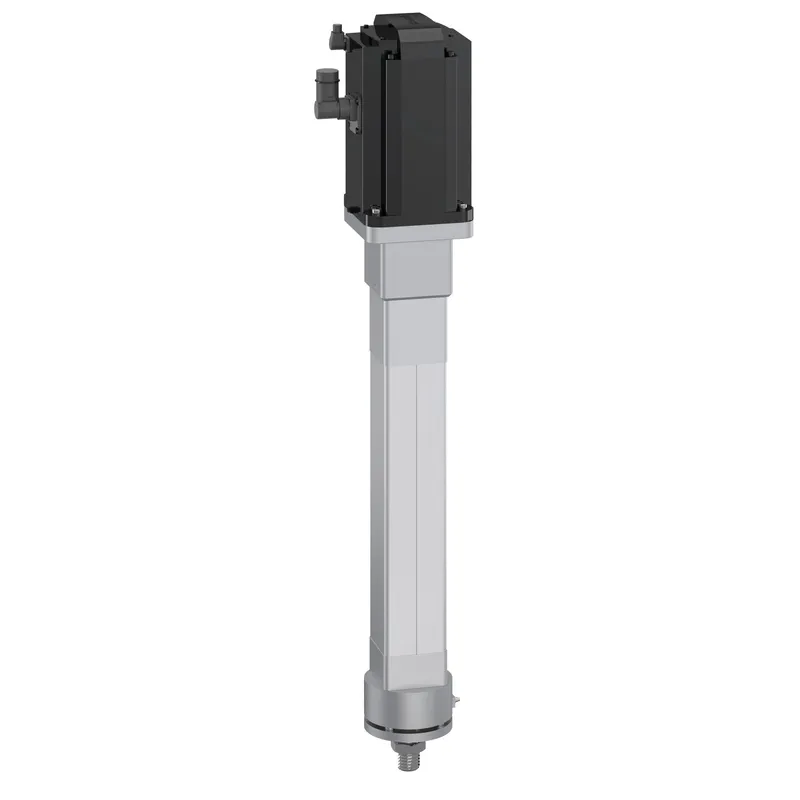

Press spindle with motor, gearbox and force sensor
All system components fully wired in the system box
Force sensor installed on the cylinder, not on the piston rod (no movement)

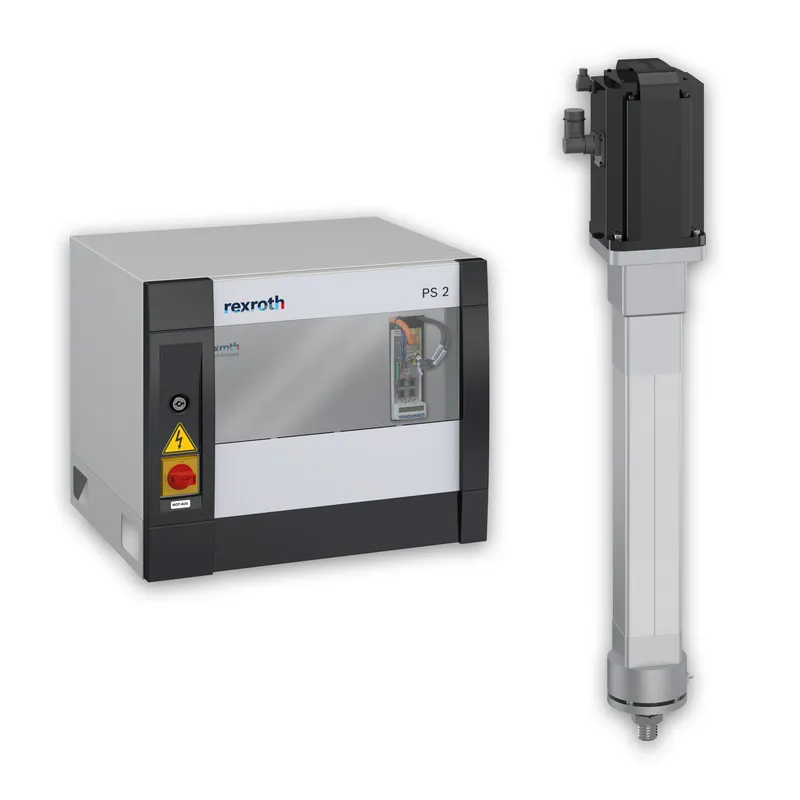

System box (converter, safety zone module, PR21)
System box (converter, safety zone module, PR21)
Fieldbus interface: Profinet, Ethernet/IP, EtherCAT, Sercos III
Data interface REST API , OPC-UA
Length of connection cable 5m
Safety device hardware, e.g. two-hand buttons, not included in the scope of delivery
Motor with holding brake
Safety function according to EN 61800-5-2
Safe Torque Off (STO), category 4, performance level e according to EN 13849-1 and SIL 3 according to EN 62061
Specifications
Specifications
| Repetition accuracy (mm) | ±0.01 |
| Working range (kN) [kN] | 3.0-30 |
| Protection class | IP54 |
| Nominal force (max) [kN] | 40.0 |
| Nominal force [kN] | 30.0 |
| Max. stroke [mm] | 400 |
| Force sensor accuracy (%MB) | ±0.25 |
| Max. backlash of the piston rod [arcmin] | 0.13 |
| Continuous input current [A] | 25.0 |
| Max. tool weight [kg] | 25.0 |
| Ambient temperature during operation (°C) | 0…50 |
| Lifting velocity (m/s) [m/s] | 0.5 |
| Mains connection voltage (V) | 3x AC 200…400 |
| Weight [kg] | 112 |
