Bosch Rexroth 3842571257
CONSOLE VFPLUS STS W10, SET
- MPN
- 3842571257
- Category
- VarioFlow plus Leg sets AL
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth 3842571257?

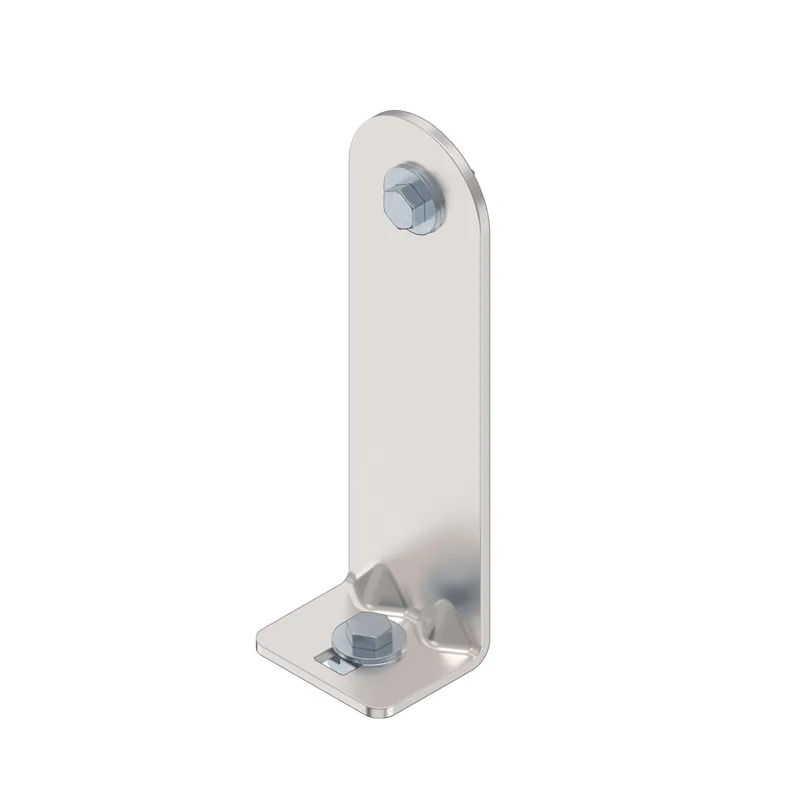

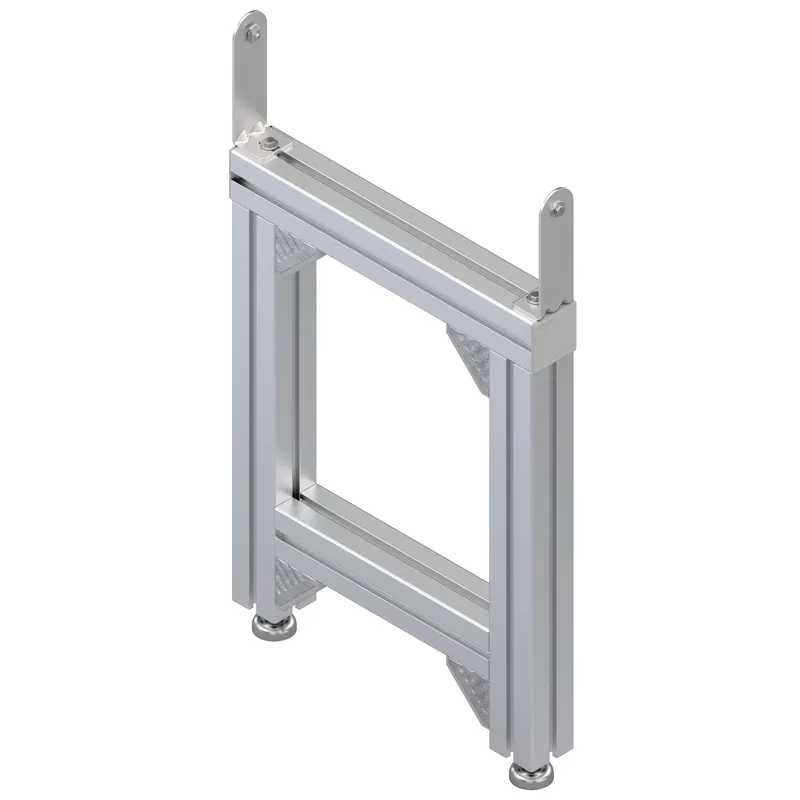

The supporting bracket allows for the assembly of one or more parallel sections with narrow track spacing on a horizontal profile and a defined spacing from the conveyor medium.

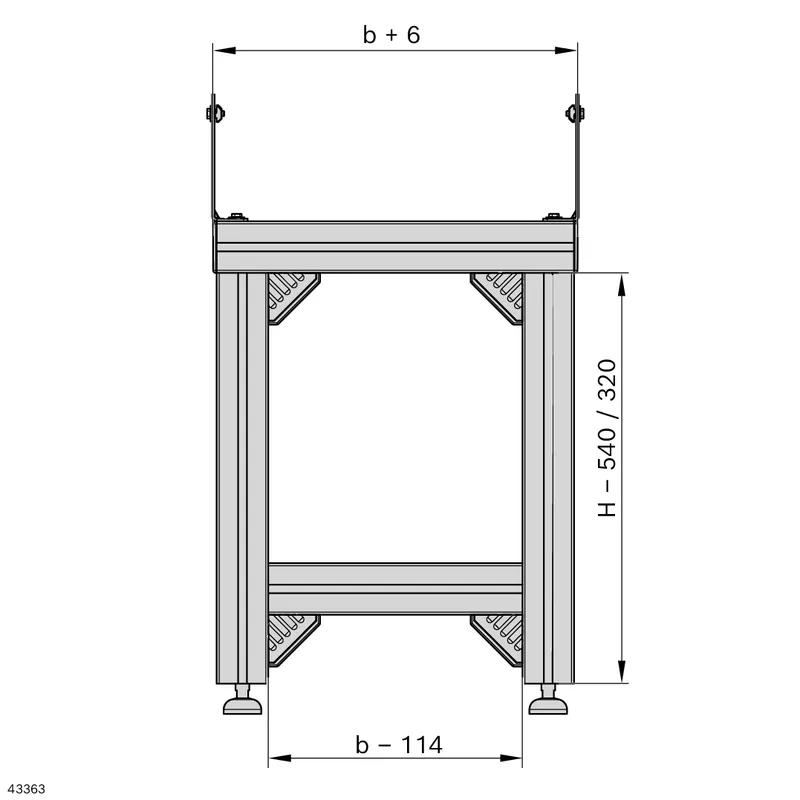

The distance of the supporting brackets in the conveying direction is approx. 2 m, depending on speed, accumulation behavior and weight. They are fastened on a leg set made by the customer
Simple assembly thanks to pluggable screwed connection
Specifications
Specifications
| Delivery unit | 1 |

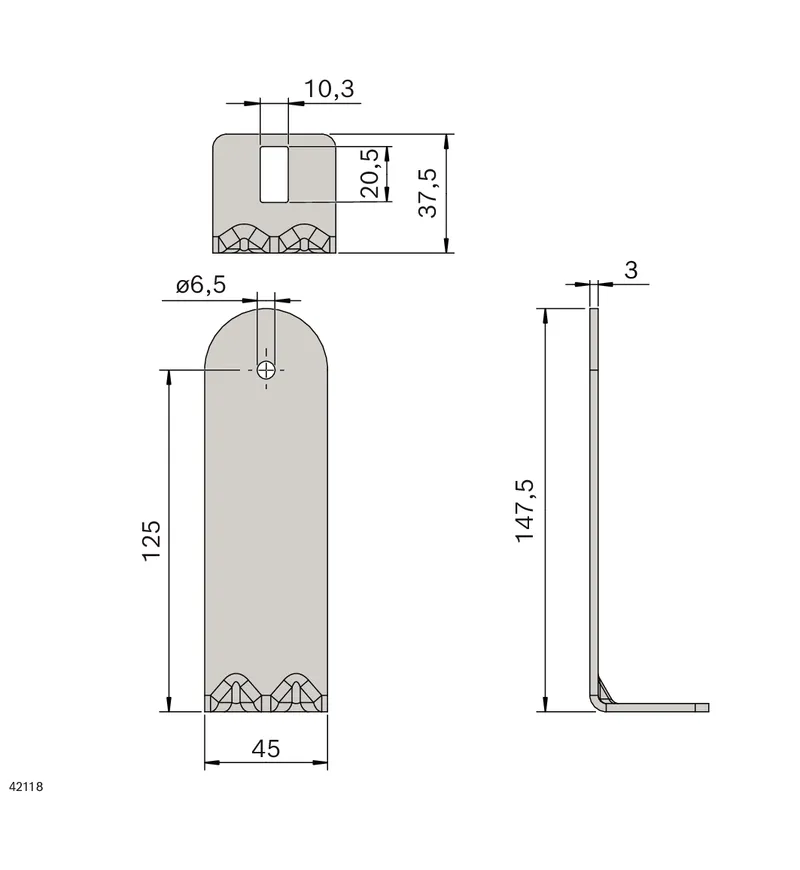

| Size [b] [mm] | 120; 160; 240; 320; 420; 622; 65; 90 |
| Scope of delivery | Incl. fastening material (except for T-nut) |
| Material | Steel, stainless |
| Required accessories | T-nut 10 M6 |
| Recommended accessories | T-nut 10 M6 STS (for direct mounting on basic unit VFbelt) |
| Weight [kg] | 0.21 |
3842571257: frequently asked questions
When can 3842571257 be shipped?
3842571257 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842571257 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842571257 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842571257, subject to availability and destination.
