Bosch Rexroth 3842571208

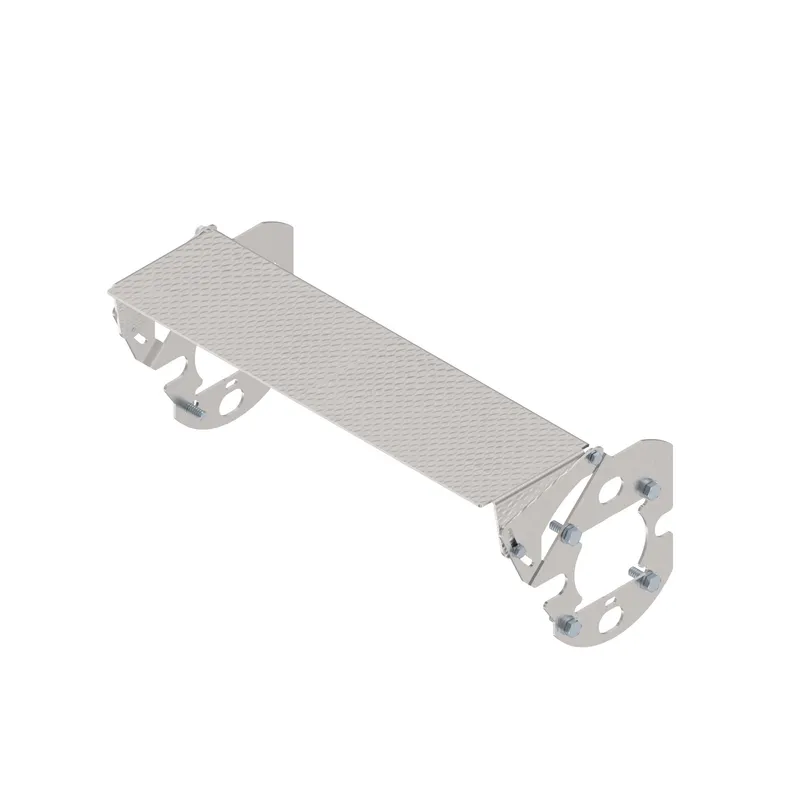

CONNECTING KIT 320+ SL BRIDGE T7 FLA

MPN: 3842571208
Category: Drive and return unit AL, connection kit

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842571208?

The sliding bridge is suitable for conveyed materials from approx. 80 mm in length (depending on the angle of inclination, speed, position of the center of gravity, product friction, etc.) The material to be conveyed is transferred via a corrugated metal sheet with an inclination adjustment of ±15° (gradient only) The maximum loading capacity is 5 kg at even load distribution over the entire bridge width. At products with a low bridge width, the maximum loading capacity is reduced due to potential deflection. Subject to consultation, testing required.

Specifications

Condition on delivery	Some assembly required
Delivery unit	1
Size [b] [mm]	320
Scope of delivery	Incl. fastening material
Modification	Version for the static friction chain is available on request from our modification department. COS@boschrexroth.de
Material	Steel, stainless
Weight [kg]	0.97
