SECTION TUBE D28L, N10 20X6070MM
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Round tube |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 3842567385 be shipped?
3842567385 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842567385 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842567385 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842567385, subject to availability and destination.

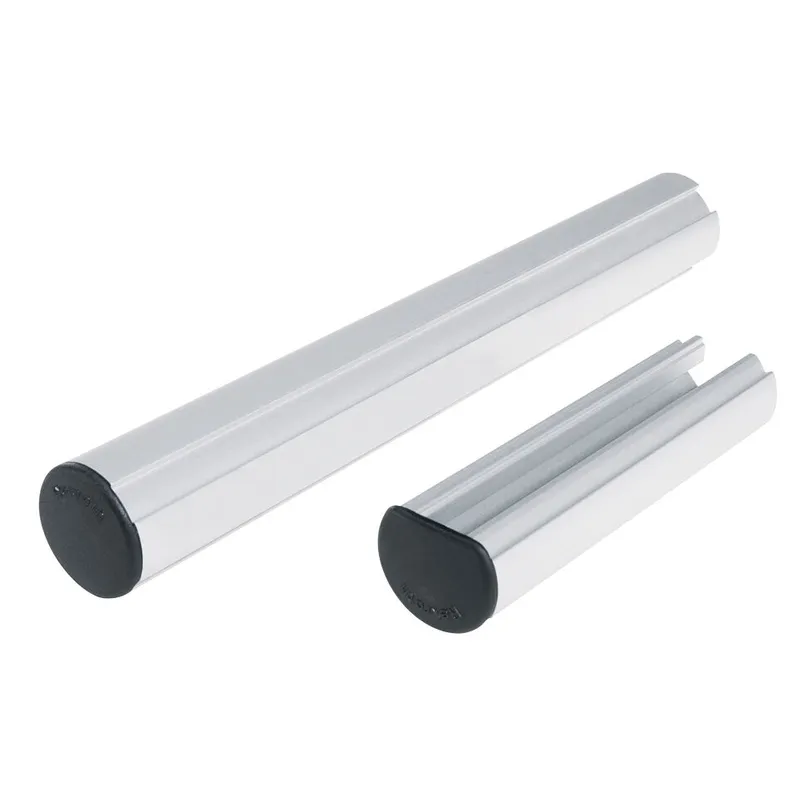

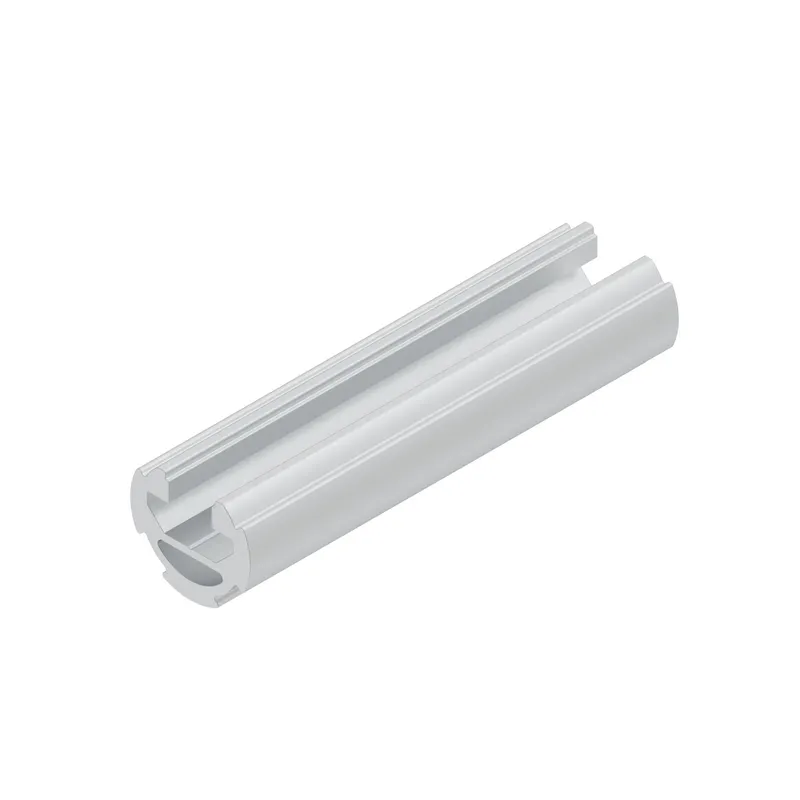

Round tube D28L, N10, 20 x L=6070 With a 10 mm slot for fastening of accessories from the modular aluminum framing system 3 interfaces for attaching EcoShape connectors The tubes and connectors are ideally suited for long-term use and for reuse
Specifications
Specifications

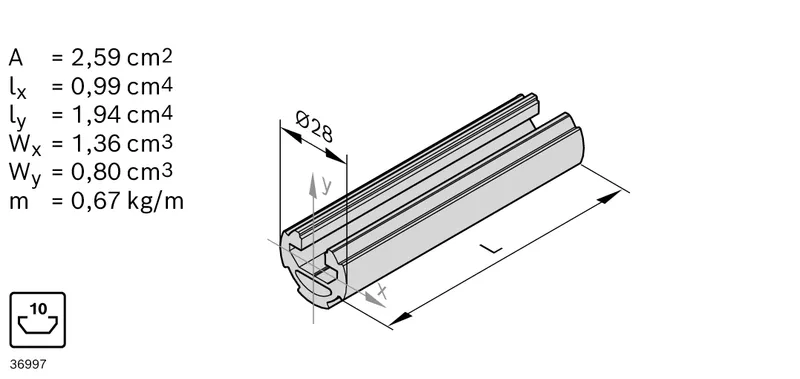

| Condition on delivery | Packaging unit in standard length |
| Profile slot | 10 |
| Packaging unit | 20 |
| Length-related mass [m'] [kg/m] | 0.67 |
| Area moment of inertia in x-direction [lx] [cm⁴] | 0.99 |
| Area moment of inertia in y-direction [ly] [cm⁴] | 1.94 |
| Profile surface [A] [cm²] | 2.59 |
| Moment of resistance in the x-direction [Wx] [cm³] | 1.36 |
| Moment of resistance in the y-direction [Wy] [cm³] | 0.80 |
| Length [L] | 6070.0 |
| Material | Aluminum, anodized |
| Weight [kg] | 82.7 |
