Bosch Rexroth 3842557983

DAMPER DA 2/60

MPN: 3842557983
Category: Damper TS 2plus

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842557983?

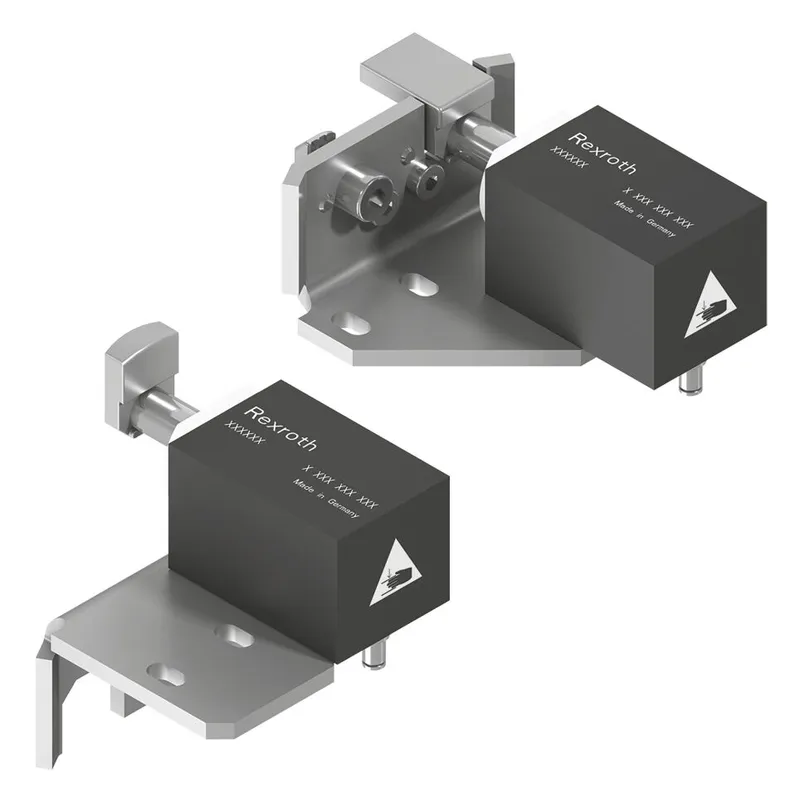

DA 2/60 damper

For permitted total weight of workpiece pallets up to 60 kg

Pneumatic damper

Infinitely adjustable

Optimal damping at a ratio of 2:1 between heavy and light workpiece pallets

Can be combined with WT 2/E, WT 2, WT 2/F, WT 2/H, WT 2/F-H and WT 2/LS

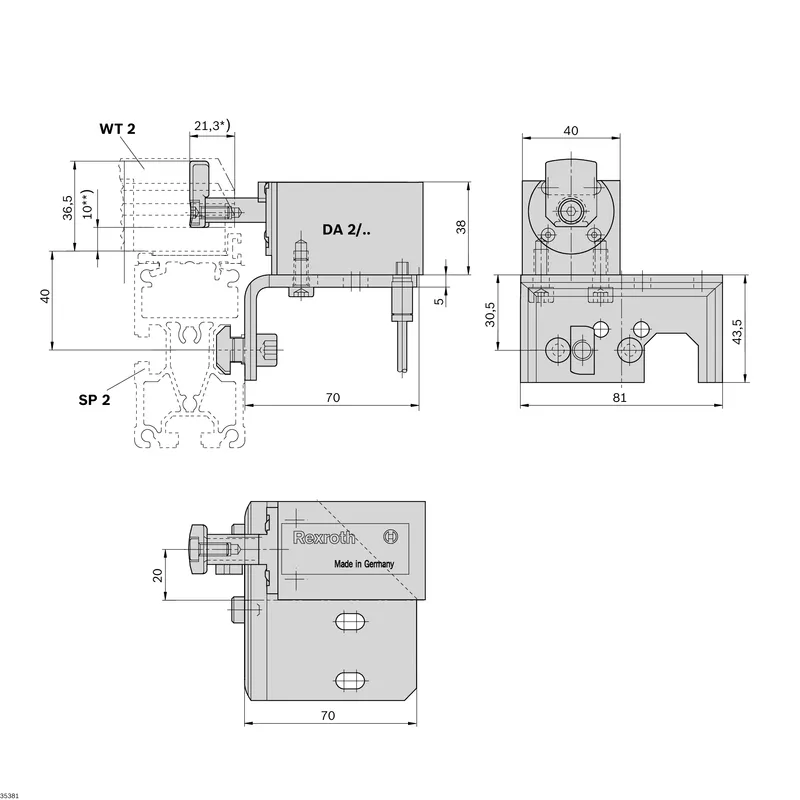

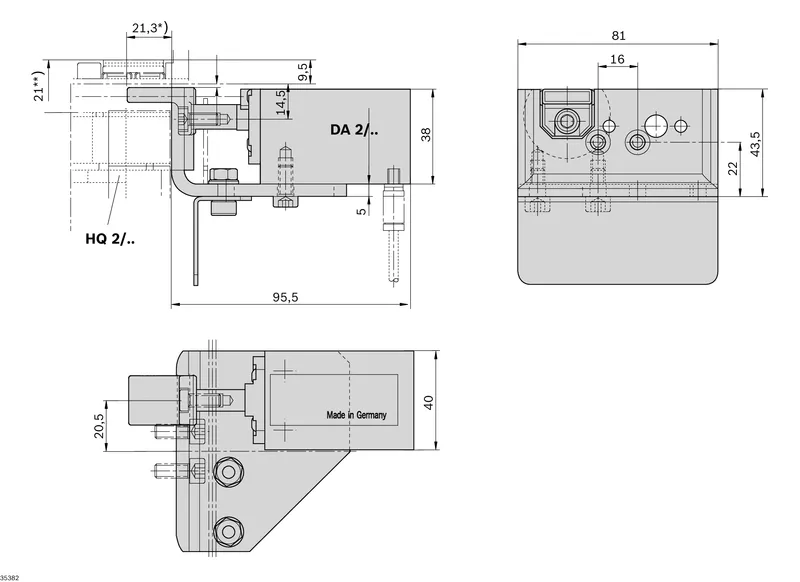

Installation location: ST 2/... section, BS 2/... belt section and HQ 2... lift transverse unit

Not suitable for HQ 2/U2 and HQ 2/..-H

The damper cushions the impact of the arriving workpiece pallets when they are moved from a transverse section into a longitudinal section and vice versa

The pneumatic return occurs as the stop gate opens, which permits the workpiece pallet to move toward the damper

Specifications

ESD	Yes
Maximum permissible mass workpiece pallet mG at nominal speed vN 9 m/min	40 kg
Maximum permissible mass workpiece pallet mG at nominal speed vN 12 m/min	35 kg
Maximum permissible mass workpiece pallet mG at nominal speed vN 18 m/min	30 kg
Maximum permissible mass workpiece pallet mG at nominal speed vN 24 m/min	24 kg
Maximum permissible mass workpiece pallet mG at nominal speed vN 30 m/min	18 kg
Operating temperature [T] max	+5 ... +60 °C
Nominal speed [vN]	12 m/min; 15 m/min; 18 m/min; 24 m/min; 30 m/min; 36 m/min; 6 m/min; 9 m/min
Workpiece pallet total weight [mG] [kg]	60; 10; 18; 24; 30; 35; 40; 60
Pneumatic straight connection [Ø] [mm]	4
Scope of delivery	DA 2/60 damper with two different stops to optionally use for infeeding or outfeeding; Incl. fastening material for mounting on an ST 2/… or BS 2/... or EQ 2/... or HQ 2/U, HQ 2/T, HQ 2/S, HQ 2/O
Delivery information	Not assembled
Notice	High-temperature damper on request
Material information	Housing: Aluminum, hard anodized; Stop: Steel, hardened
Min. workpiece pallet weight m	1 kg

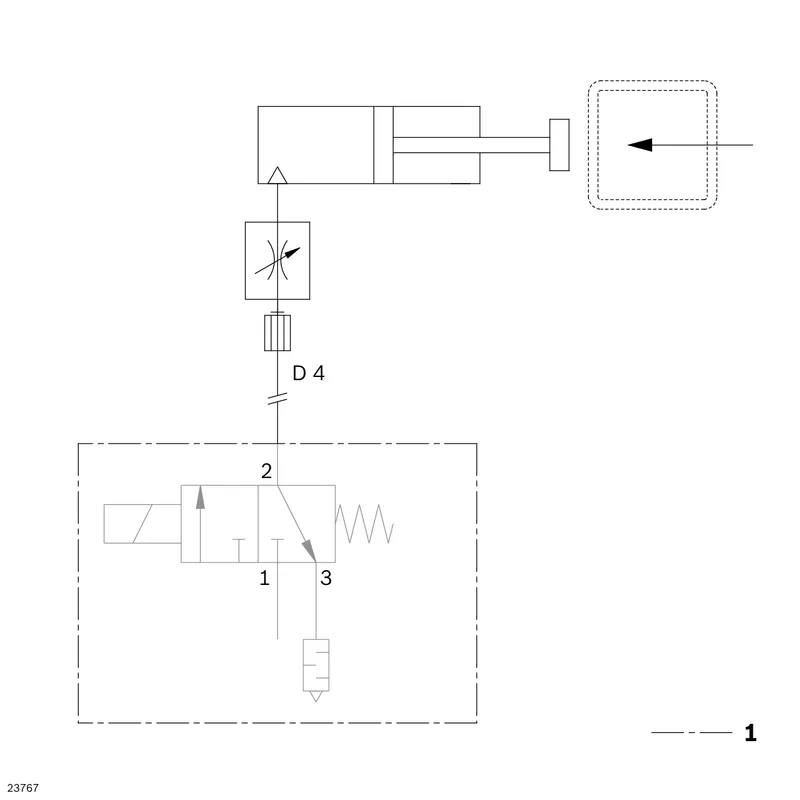

Pneumatic circuit diagram	1 Not included in the scope of delivery
Maximum permissible mass workpiece pallet mG at nominal speed vN 6 m/min	60 kg
Maximum permissible mass workpiece pallet mG at nominal speed vN 36 m/min	10 kg
Weight [kg]	0.66
