Bosch Rexroth 3842557946

FRAME PROFILE 22,5X30 20X6070MM

MPN: 3842557946
Category: Material shelves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842557946?

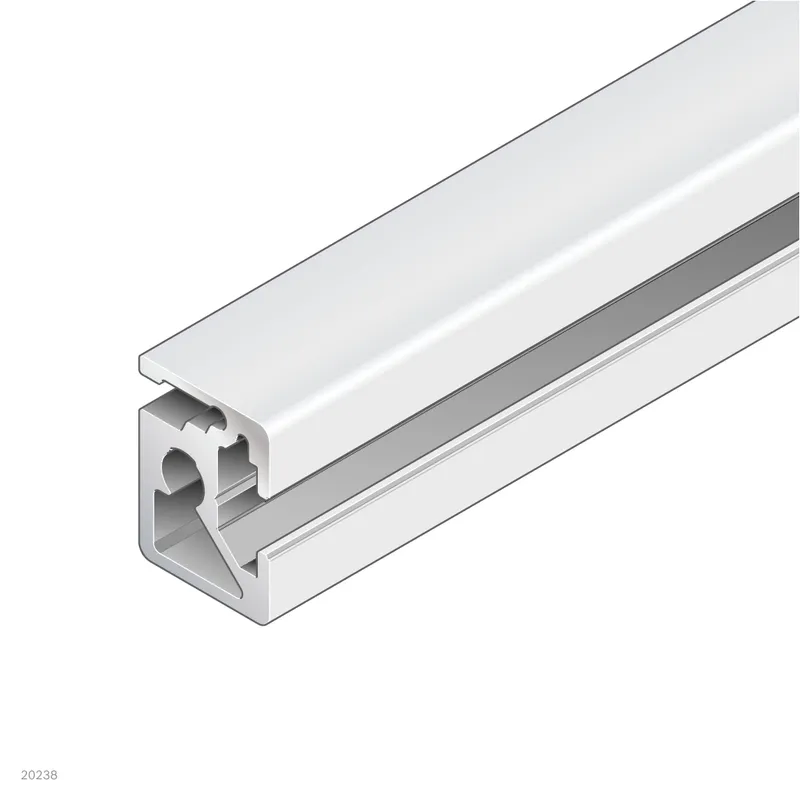

Frame profile 22.5x30 L6070

For inexpensive construction of trays and material shelves

Surface elements are mounted under tension so that they do not rattle

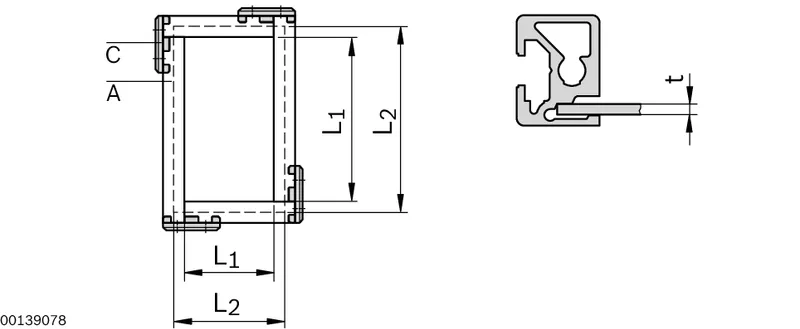

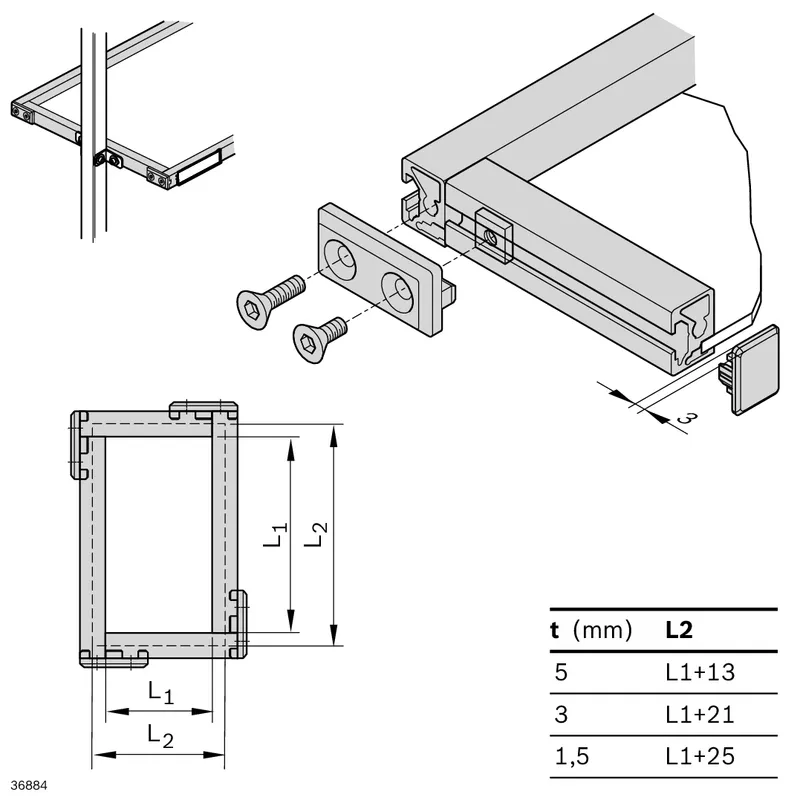

Corner piece for frame profile 22.5x30

For the right-angled connection of two 22.5x30 frame profiles

Profile finishing: not required

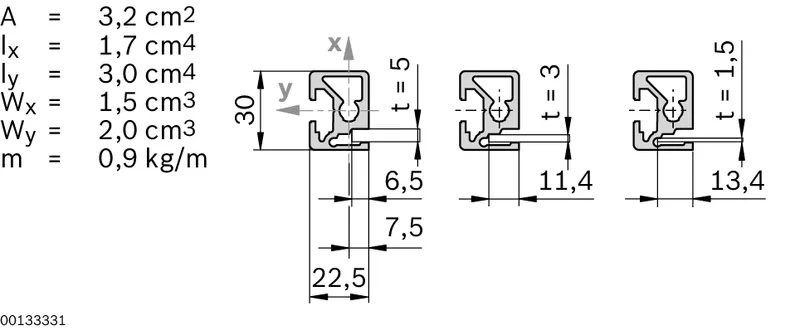

Specifications

Condition on delivery	Packaging unit in standard length
Delivery unit	20
Mass [m] [kg]	0.9
Area moment of inertia in x-direction [lx] [cm⁴]	1.7
Area moment of inertia in y-direction [ly] [cm⁴]	3
Profile surface [A] [cm²]	3.2
Moment of resistance in the x-direction [Wx] [cm³]	1.5
Moment of resistance in the y-direction [Wy] [cm³]	2
Length [L]	6070.0
Material	Aluminum, anodized
Recommended accessories	Bracket set M6; Cover cap 22.5x30, black ESD; Cover cap 22.5x30, signal gray; Lettering clip for 8 mm slot; Plate; Swivel fastening
Weight [kg]	106.1
