FRAME PROFILE 30X30 WG40 L=6170
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Protective grille profile WG40 |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 3842557239 be shipped?
3842557239 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842557239 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842557239 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842557239, subject to availability and destination.

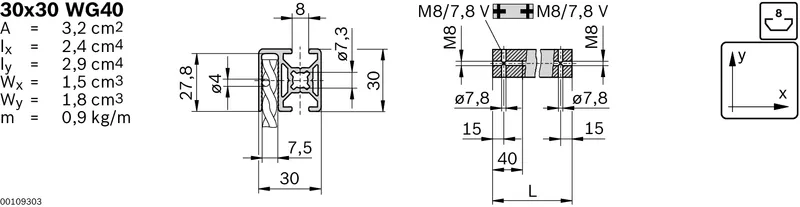

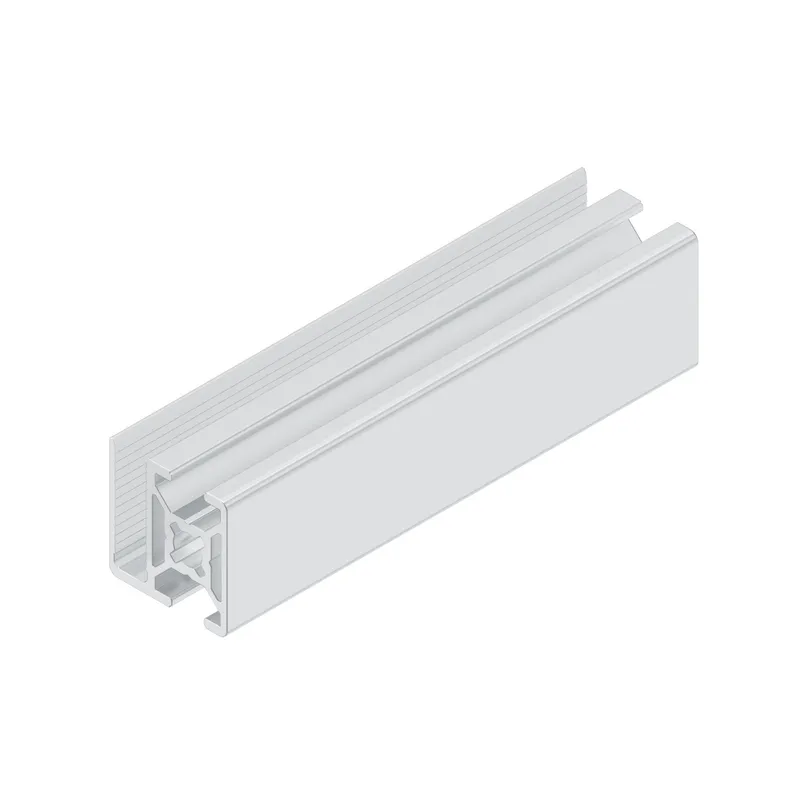

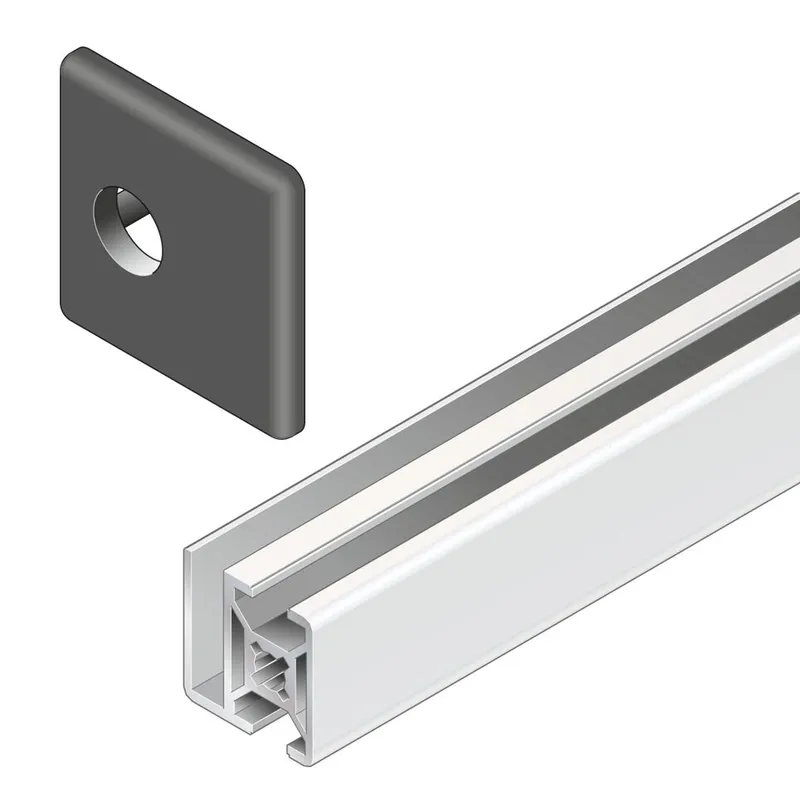

Protective grille profile 30x30 WG40, standard profile finishes for the low-cost construction of protective barriers with woven wire grilles WG30 and WG40 Fastening of woven wire grilles: directly in the special profile slot Fastening of surface elements: in the special profile slot using spring clamping elements (accessories) The profiles are connected using a central bolt (profile machining required) Modular dimension "B" relates to 45x45 supports
Specifications
Specifications
| Condition on delivery | Single rod in standard length |
| Profile slot | 8 |
| Delivery unit | 1 |
| Packaging unit | 1 |
| Mass [m] [kg] | 0.9 |
| Area moment of inertia in x-direction [lx] [cm⁴] | 2.4 |
| Area moment of inertia in y-direction [ly] [cm⁴] | 2.9 |
| Profile surface [A] [cm²] | 3.2 |
| Moment of resistance in the x-direction [Wx] [cm³] | 1.5 |
| Moment of resistance in the y-direction [Wy] [cm³] | 1.8 |
| Length [L] | 6170.0 |
| Material | Aluminum, anodized |
| Required accessories | Central bolt; Spring clamping elements; Woven wire grille |
| Weight [kg] | 5.2 |
