Bosch Rexroth 3842557228

FRAME PROFILE 30X45 WG30 20X6070MM

MPN: 3842557228
Category: Protective grille profile WG30

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842557228?

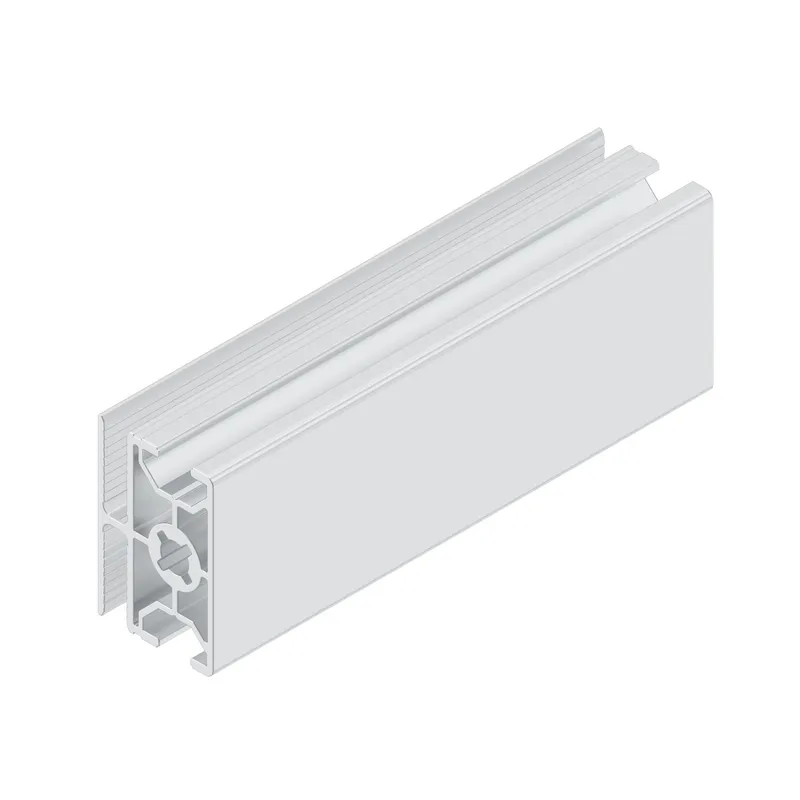

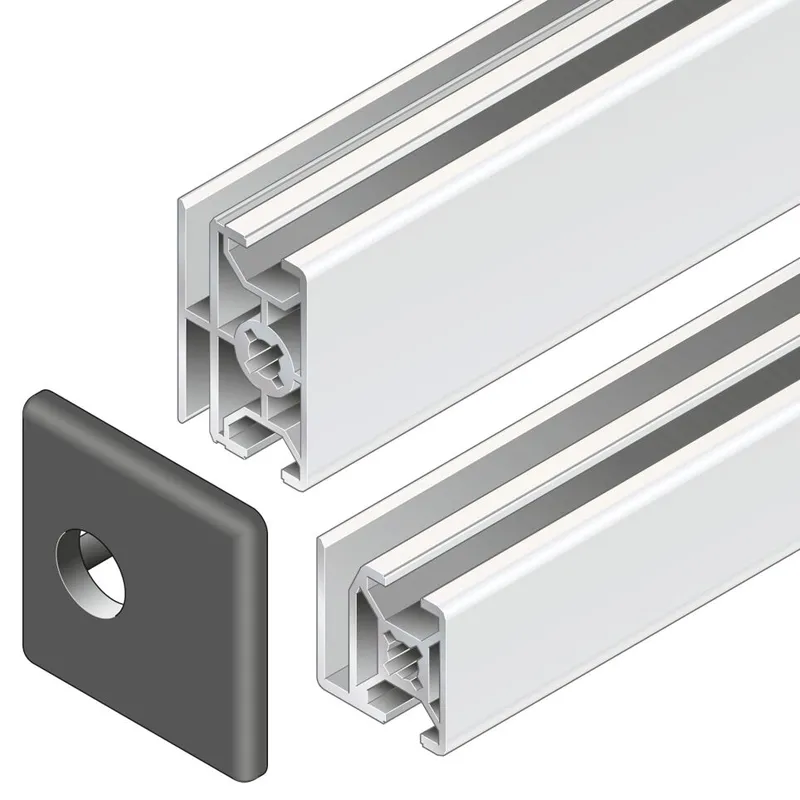

Protective grille profile 30x45 WG30, L6070

For the low-cost construction of protective equipment with woven wire grilles WG30

Fastening of woven wire grilles: directly in the special profile slot

Fastening of surface elements: in the special profile slot using spring clamping elements (accessories)

The profiles are connected using a central bolt (profile machining required)

Modular dimension "B" relates to 45x45 supports

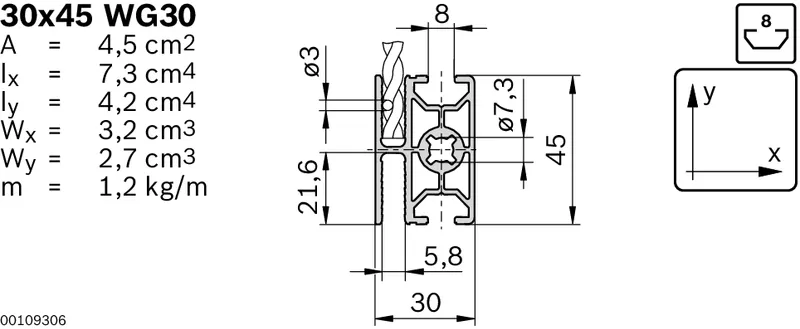

Specifications

Condition on delivery	Packaging unit in standard length
Profile slot	8
Delivery unit	20
Mass [m] [kg]	1.2
Area moment of inertia in x-direction [lx] [cm⁴]	7.3
Area moment of inertia in y-direction [ly] [cm⁴]	4.2
Profile surface [A] [cm²]	4.5
Moment of resistance in the x-direction [Wx] [cm³]	3.2
Moment of resistance in the y-direction [Wy] [cm³]	2.7
Length [L]	6070.0
Material	Aluminum, anodized
Required accessories	Central bolt; Spring clamping elements; Woven wire grille
Weight [kg]	150.5
