Bosch Rexroth 3842557209

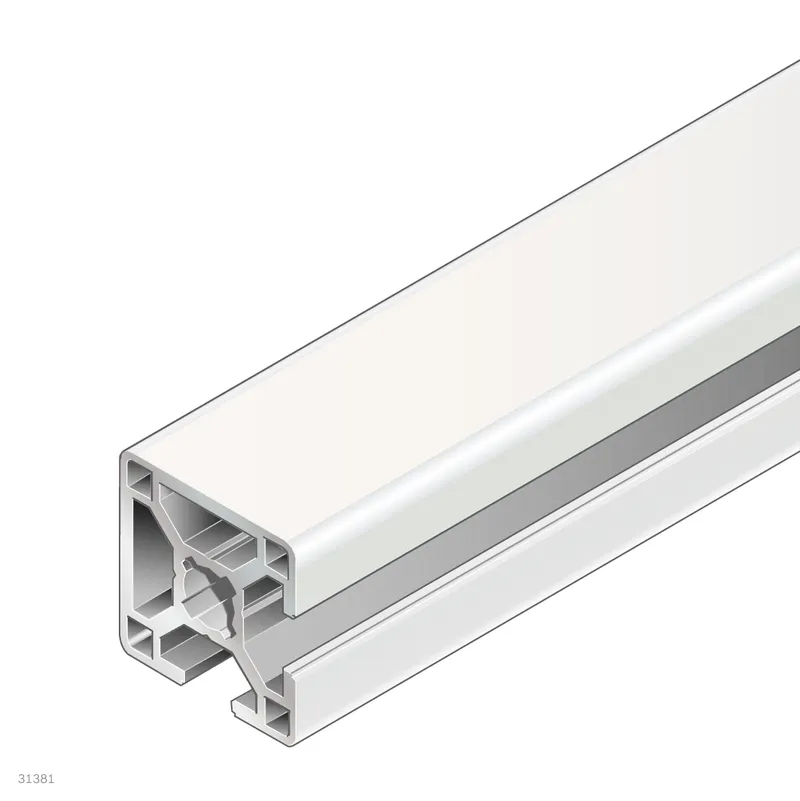

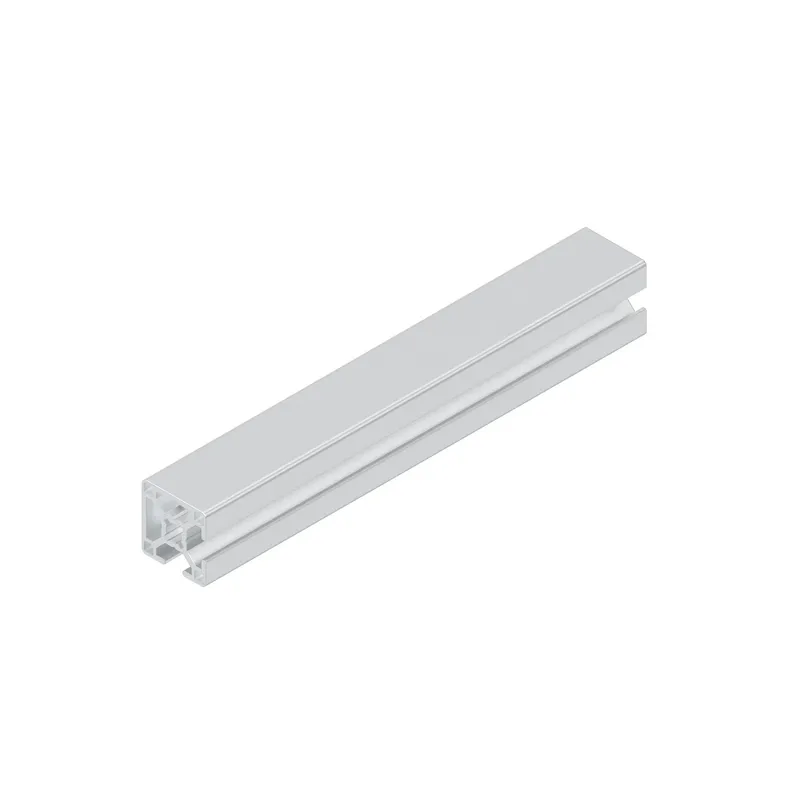

STRUT PROFILE 30X30 2NVS 20X6070MM

MPN: 3842557209
Category: Strut profile

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842557209?

Strut profile 30x30 2NVS, 20xL=6070mm

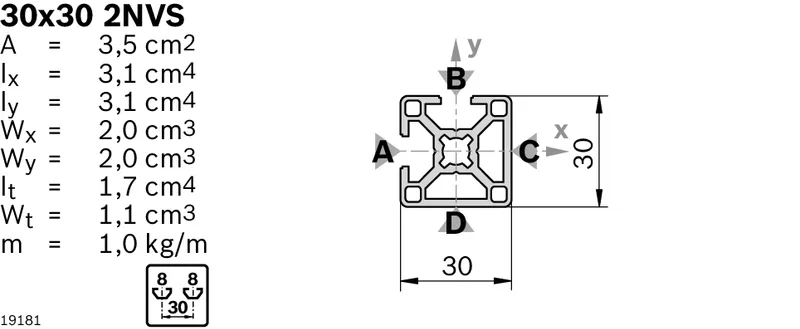

Specifications

Condition on delivery	Packaging unit in standard length
Cross-section	30x30 2NVS
Modular dimension [mm]	30
Profile slot	8
Dimensions	30x30
Open slots	2.0
Profile type	2NVS
Color	Natural
Delivery unit	20
Mass [m] [kg]	1
Area moment of inertia in x-direction [lx] [cm⁴]	3.1
Area moment of inertia in y-direction [ly] [cm⁴]	3.1
Profile surface [A] [cm²]	3.5
Moment of resistance in the x-direction [Wx] [cm³]	2
Moment of resistance in the y-direction [Wy] [cm³]	2
Torsional moment of inertia [It] [cm⁴]	1.7
Moment of torsion resistance [Wt] [cm³]	1.1
Length [L]	6070.0
Material	Aluminum, anodized
Recommended accessories	Cover cap 30x30, black; Cover cap 30x30, signal gray; Cover cap with hole 30x30, black; Cover cap with hole 30x30, signal gray
Weight [kg]	128
