Bosch Rexroth 3842557090

What is the Bosch Rexroth 3842557090?

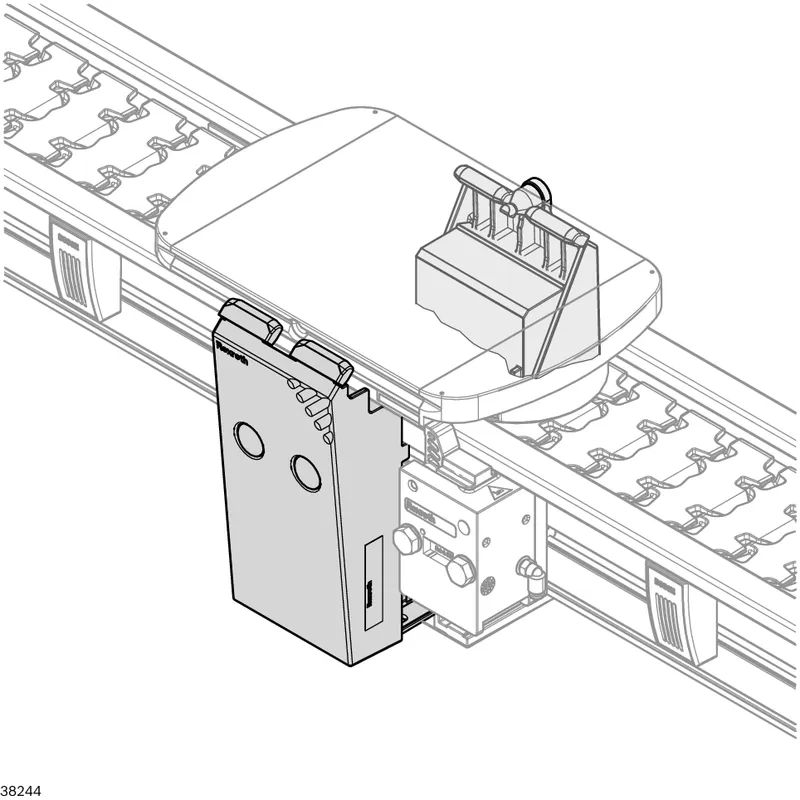

Positioning unit PE-VF/C

The positioning unit PE-VF/C is intended for use in clean ambient conditions

The WT is lifted approx. 1 mm above the transport level, thus eliminating the load on the conveyor chain during processing

For rough ambient conditions, the positioning unit PE-VF/H is available

Positioning accuracy in the direction of transport: ± 0.15 mm (transverse: ± 0.1 mm, height: ± 0.1 mm)

Maximum vertical press force (p = 4 bar): 400 N

Maximum retention force (p = 4 bar) in the direction of transport: 300 N

Maximum permissible torque in the plier area: 60 Nm

Suitable for retrofitting without disrupting the lateral guide

The switch bracket can be installed in any position

Minimum length of the workpiece pallets in order to incorporate the positioning unit:

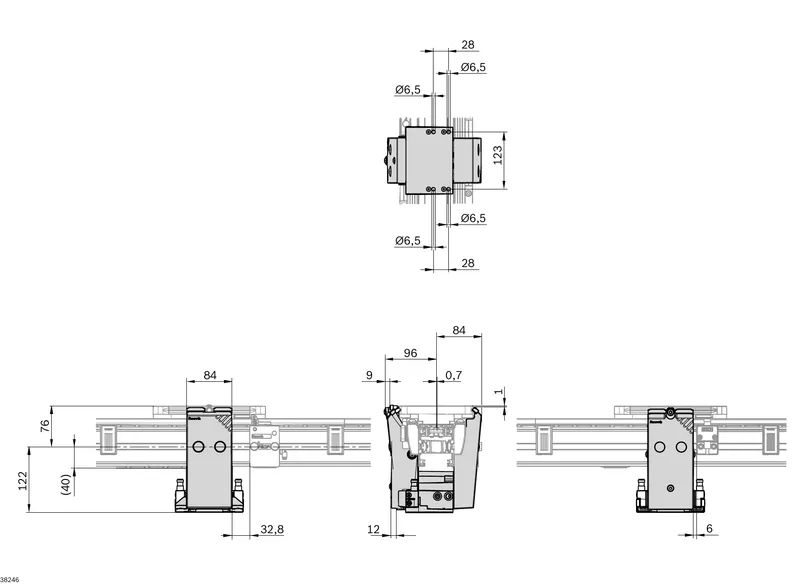

Size 65: L = 125 mm

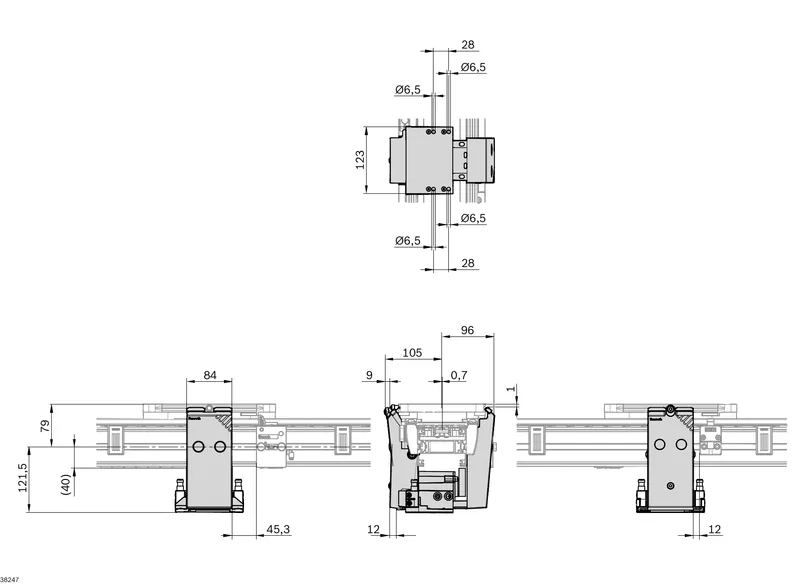

Size 90: L = 125 mm

2 positioning units can be combined for workpiece pallets with L > 250 mm. For this, the positioning mandrel is removed from one of the PEs and the workpiece pallets are fitted with eccentric centering bushings by the customer

Position inquiry (parts not included in the scope of delivery) with 2x sensor M12x45 ( 3 842 557 633 ) and 1x switch bracket each SH 2/HQ-R ( 3 842 557 606 ) and SH 2/HQ-L ( 3 842 557 607 )
