Bosch Rexroth 3842557057

CURVE 90+ HOR STS 45° R700

MPN: 3842557057
Category: Curves STS

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842557057?

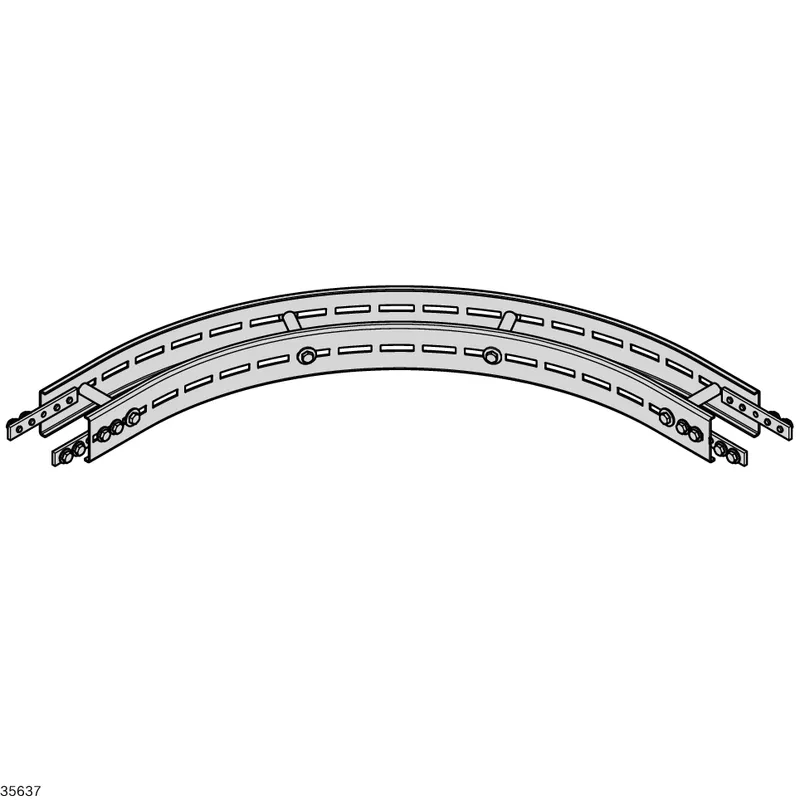

Horizontal sliding curve STS VFplus 90 45° R700

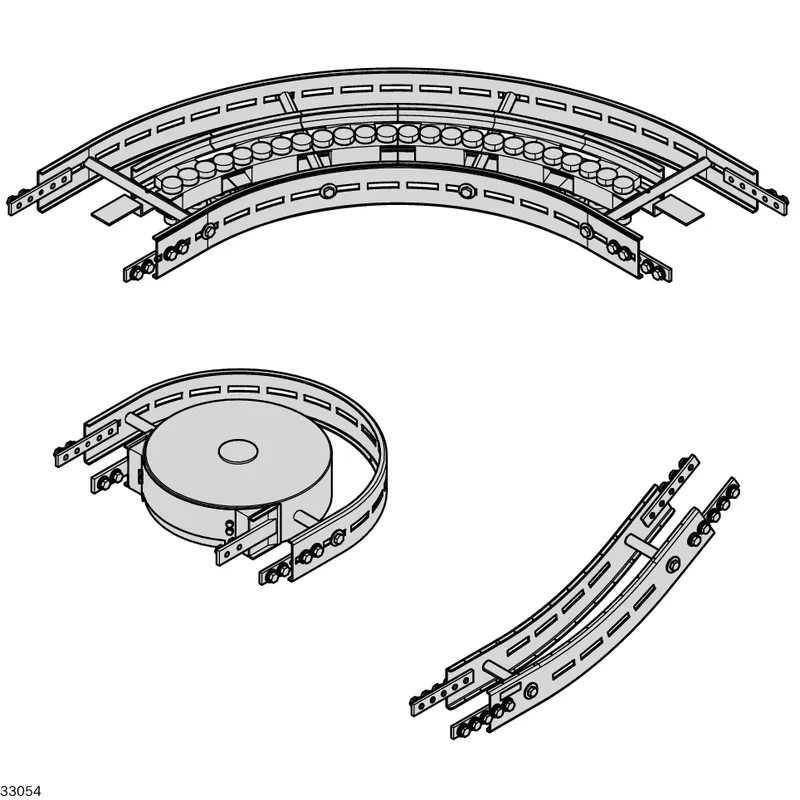

The sliding curve provides a horizontal change in direction for the chain, for when there is not enough space for a curve wheel or the speeds or product dimensions do not permit conveying over a curve wheel

Specifications

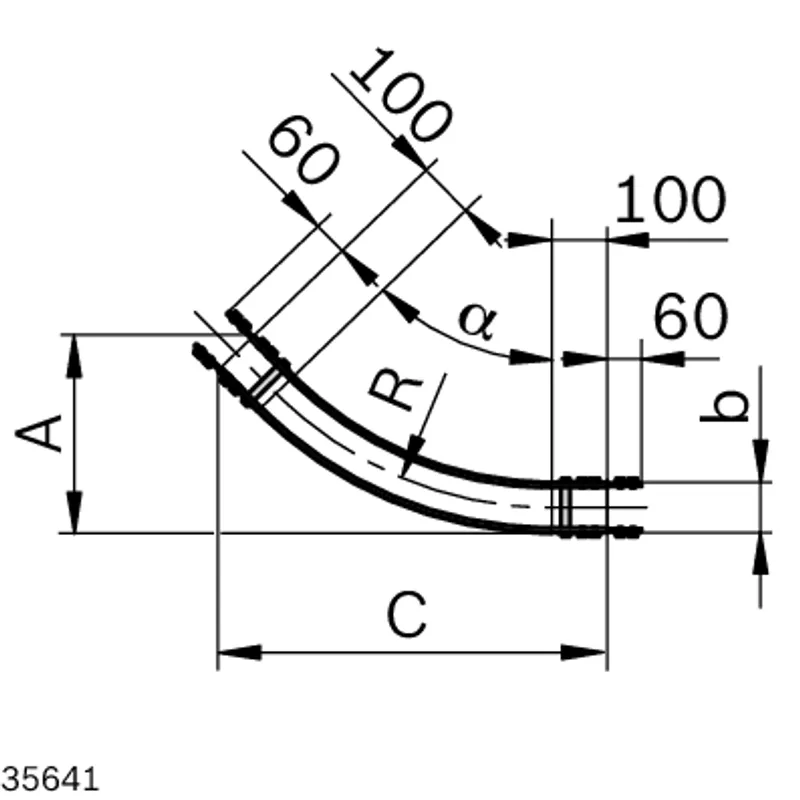

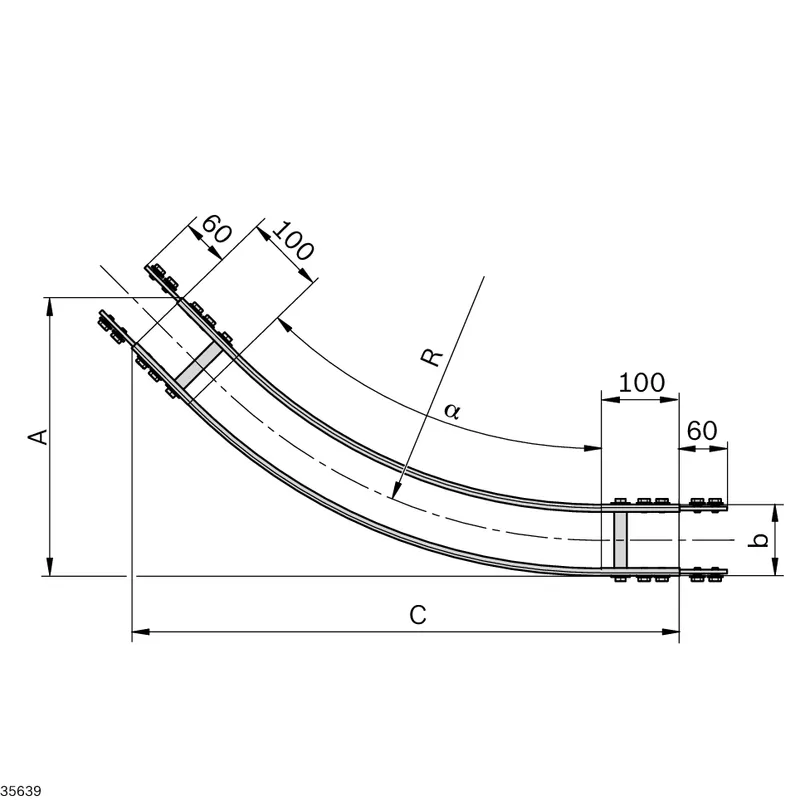

Deflection angle [α] [°]	45
Dimension A [mm] [mm]	352.6
Size [b] [mm]	90
Scope of delivery	Incl. fastening material for mounting to STS section profiles
Delivery information	Fully assembled
Modification	Additional versions are available on request from our modification department. (COS@boschrexroth.de)
Material	Non-rusting steel 1.4301
Actual chain length [m]	2x 0,75
Effective sliding rail length [m]	4x 0,75
Required accessories	Slide rail: Length calculation
Weight [kg]	2.48
