Bosch Rexroth

Bosch Rexroth 3842555566

RETURN BLOCK WEIGHT COUNTERBALANCE

MPN: 3842555566
Category: Counterbalance for lifting doors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842555566?

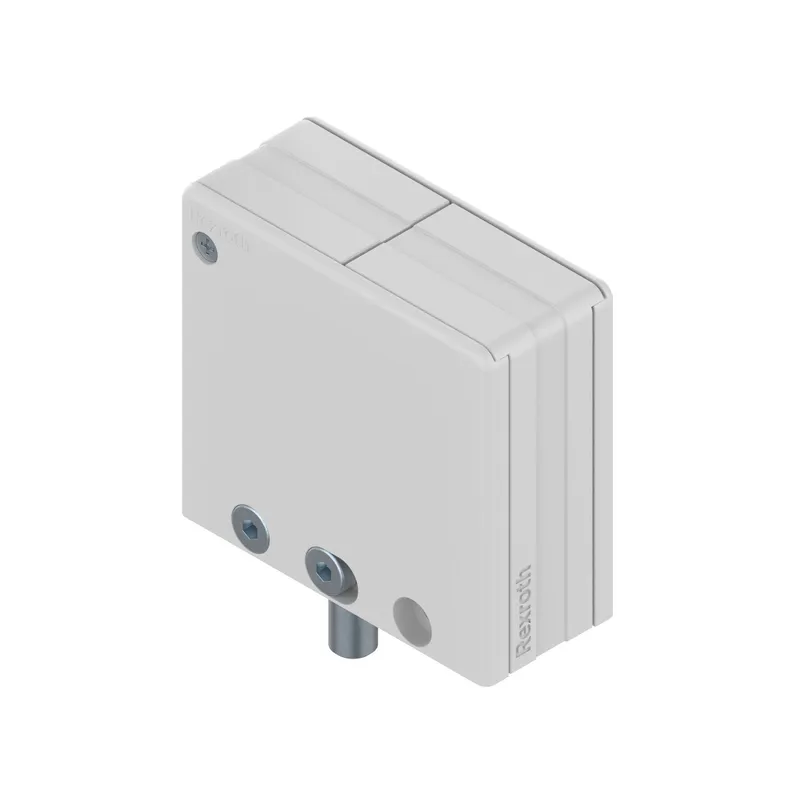

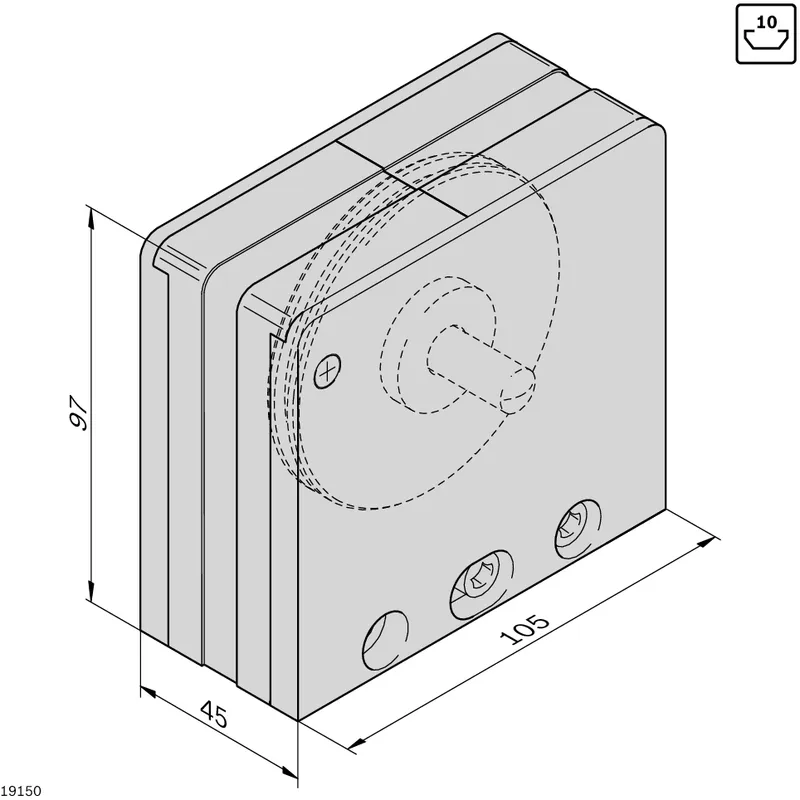

Counterbalance deflection pulley

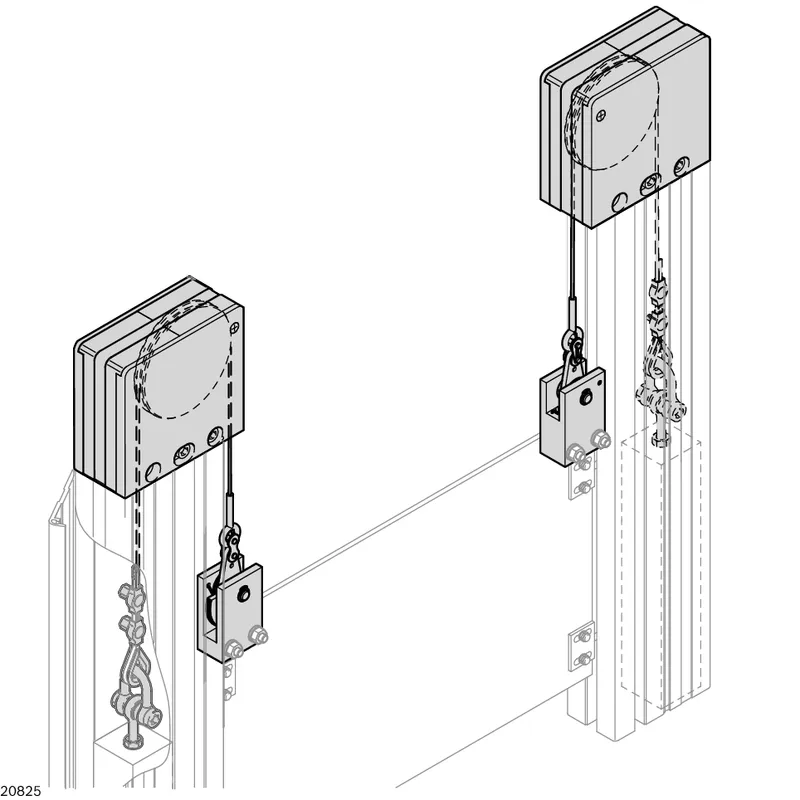

For lifting doors comprising a deflection pulley and control cable

Counterweight individually adjustable and preferably guided in a cable duct

Service life: 50,000 actuations

Profile finishes:

– M12 for fastening the deflection pulley

Fit lifting doors with a back-up fall arrestor in accordance with the Machinery Directive 2006/42/EC

Specifications

Profile slot	10
Color	Signal gray
Packaging unit	1
Scope of delivery	Incl. fastening material
Material information	Fastening material: Steel, galvanized
Fastening material	1x T-nut 10 M8; 1x cylinder head screw DIN7984-M12x40; 1x cylinder head screw DIN7984-M8x20; 1x washer DIN433-A8.4

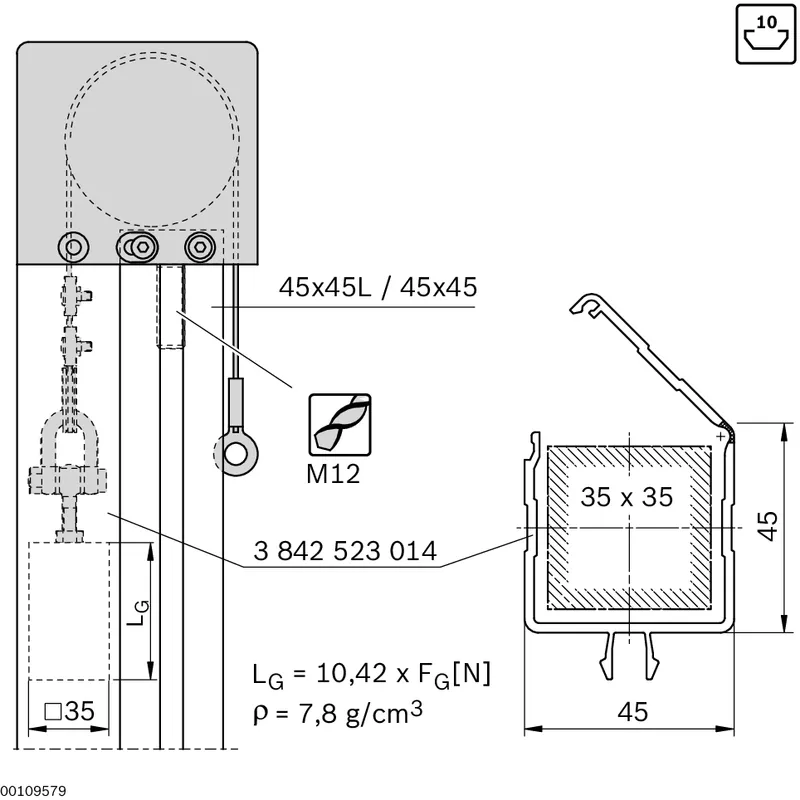

Required accessories	Counterbalance weight (square profile 35x35 mm)
Recommended accessories	Cable duct 45x45 (3842549896); Safety catch (3842546519); Slider (3842564170)
Weight [kg]	0.58
