Home / Bosch Rexroth / Curve wheel ESD / Bosch Rexroth 3842553035

Bosch Rexroth

Bosch Rexroth 3842553035

CAM WHEEL 90+ AL 90° ESD

MPN: 3842553035
Category: Curve wheel ESD

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

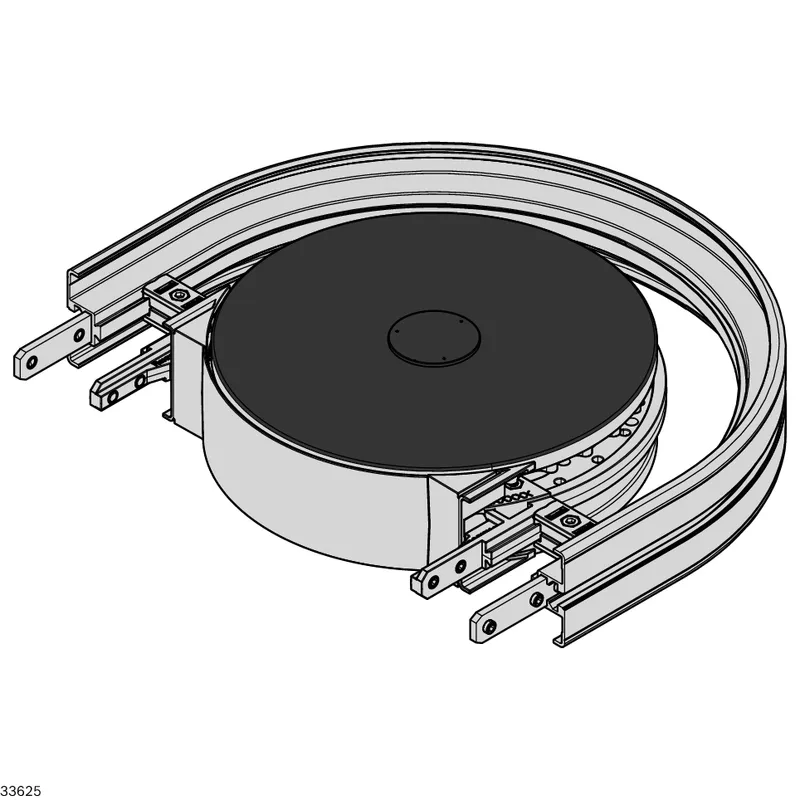

What is the Bosch Rexroth 3842553035?

Curve wheel AL ESD VFplus 90 90°

The curve wheel AL ESD provides a horizontal direction change for the conveyor chain

It enables low-friction direction changes with very small radii

No interfering contours above chain plate height

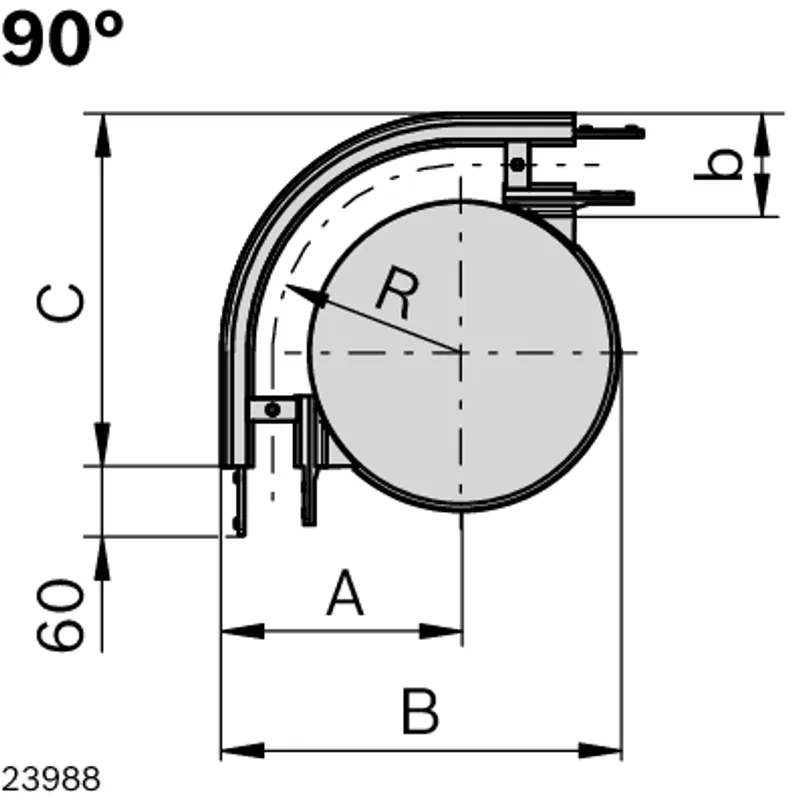

Specifications

ESD	Yes
Deflection angle [α] [°]	90
Dimension A [mm] [mm]	210.5
Size [b] [mm]	90
Dimension b [mm]	349.5
Scope of delivery	Incl. fastening material for mounting to the AL section profile
Delivery information	Fully assembled
Modification	Additional versions are available on request from our modification department. (COS@boschrexroth.de)
Material information	Ball bearing: Non-rusting steel 1.4301/FDA; Chain wheel: PA ESD, black; Housing: Diecast aluminum
Actual chain length [m]	2x 0,46
Effective sliding rail length [m]	2x 0,58
Weight [kg]	3.98
