DIVERTER 90+ CROSS 90° R
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Diverter |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 3842551074 be shipped?
3842551074 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842551074 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842551074 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842551074, subject to availability and destination.
90° cross-diverter, right, VFplus 90 The cross-diverter combines the functions of junctions and diverters in a compact length. Complete assembly kit to install on existing sections or curve wheels For problem-free section transfer, the center of gravity for the load must lie at the center of the optimal range Permissible speed range: min. 4 m/min, max. 18 m/min The support enables the workpiece pallet to move safely over the section gap with no danger of tipping. No accumulation operation against the diverter blade!
Specifications
Specifications
| Size [b] [mm] | 90 |

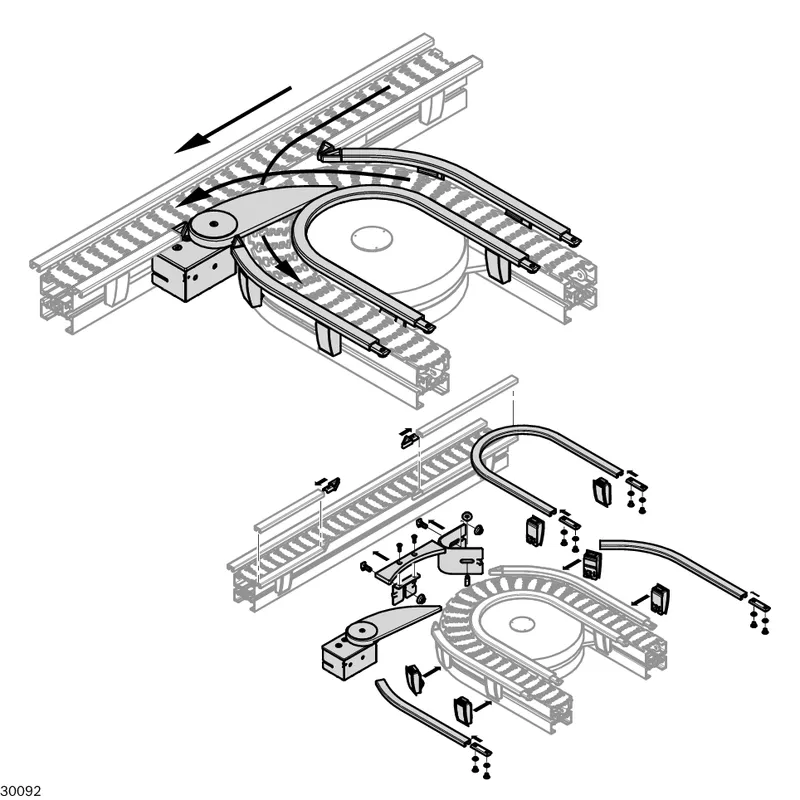

| Scope of delivery | Kit including fastening parts (as shown) |
| Material information | Diverter blade, sliding surface support: PA, black |
| Weight [kg] | 2.85 |
