Bosch Rexroth 3842549696

RETURN STOP VE 2/RS-H PN

MPN: 3842549696
Category: Return stop TS 2plus

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842549696?

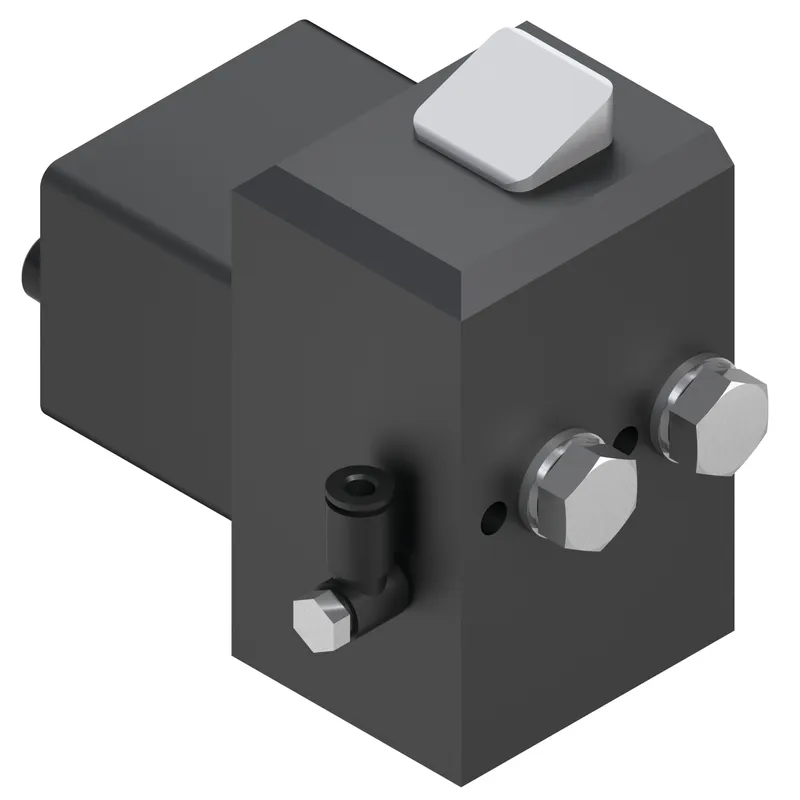

VE 2/RS-H return stop, pneumatic

Spring-loaded safety catch

Can be used on the left or right

Easy fastening in the groove of the ST 2/… or BS 2/… section profile

Pneumatic version, including pneumatic cylinder to open the safety catch. Necessary for reversible operation

Can be combined with WT 2, WT 2/F, WT 2/H and WT 2/F-H

The return stop VE 2/RS-H can be installed on the WT 2 and WT 2/F-H without spacer

Combination with WT 2/LS not possible

The return stop prevents the rebound impact of the workpiece pallet from the stop gate VE 2/D-... or damper DA 2/...

The use of the VE 2/RS-H is especially recommended for high total weights and low damping

In normal condition, the stop gate is moved into the lock position by a spring and the workpiece pallet overtravels the VE 2/RS-H in the direction of transport and is stopped against the direction of transport

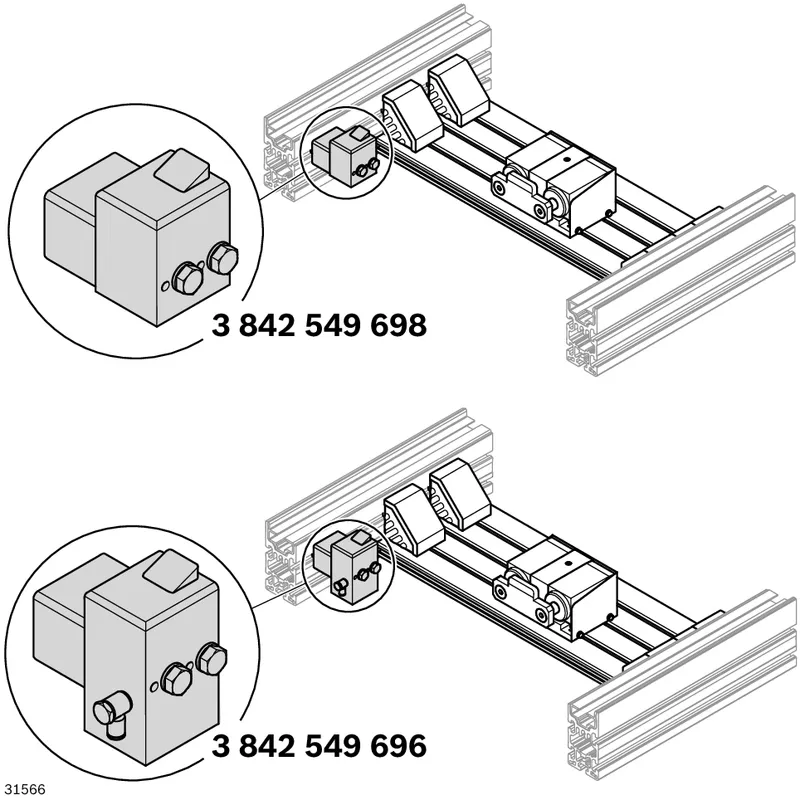

Mounted inside the tracks, directly on the conveyor section

Specifications

Operating temperature [T] max	+5 ... +60 °C
Workpiece pallet total weight [mG] [kg]	250
Delivery information	Not assembled
Notice	High-temperature stop gate on request
Material information	Housing: Aluminum, hard anodized; Stop cam: Steel, hardened
Min. workpiece pallet weight m	3 kg
Weight [kg]	0.32
