Bosch Rexroth 3842548832

VARIOFIX BLOCK 8,VARIOFIX,GREY

MPN: 3842548832
Category: Variofix block

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842548832?

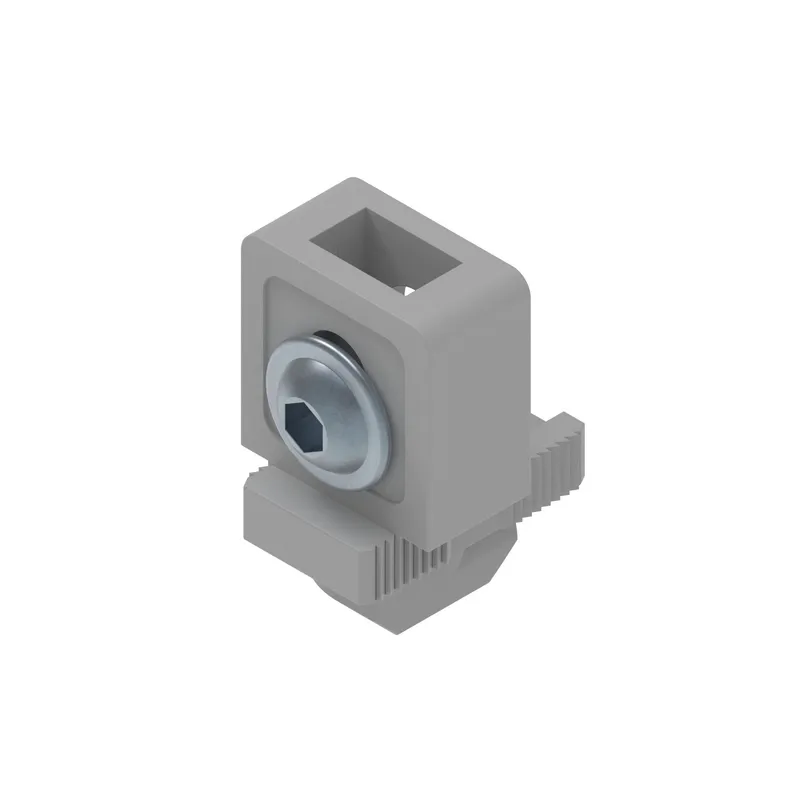

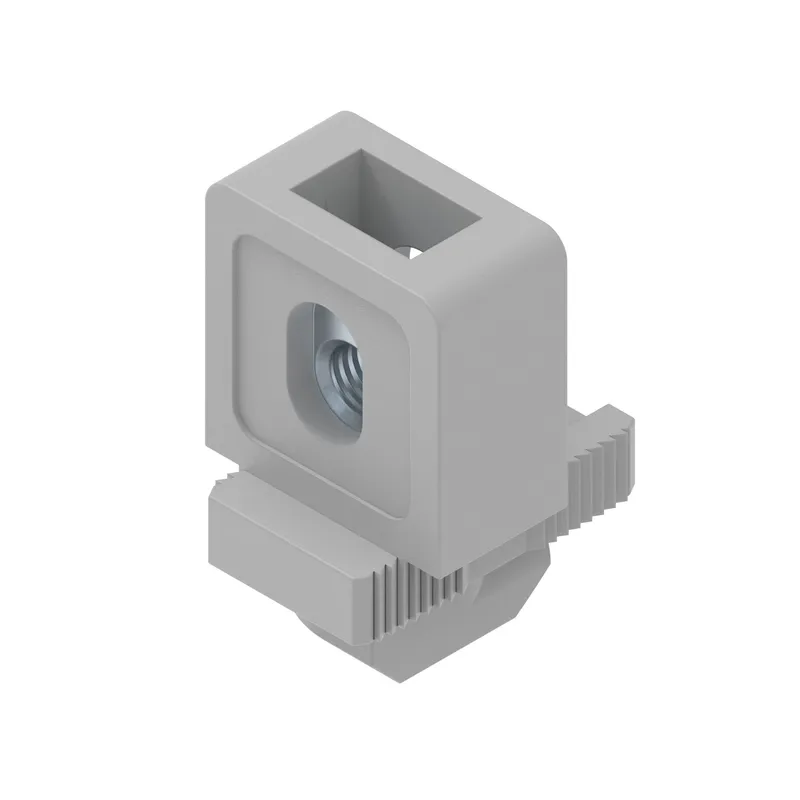

Variofix block slot 8 PP

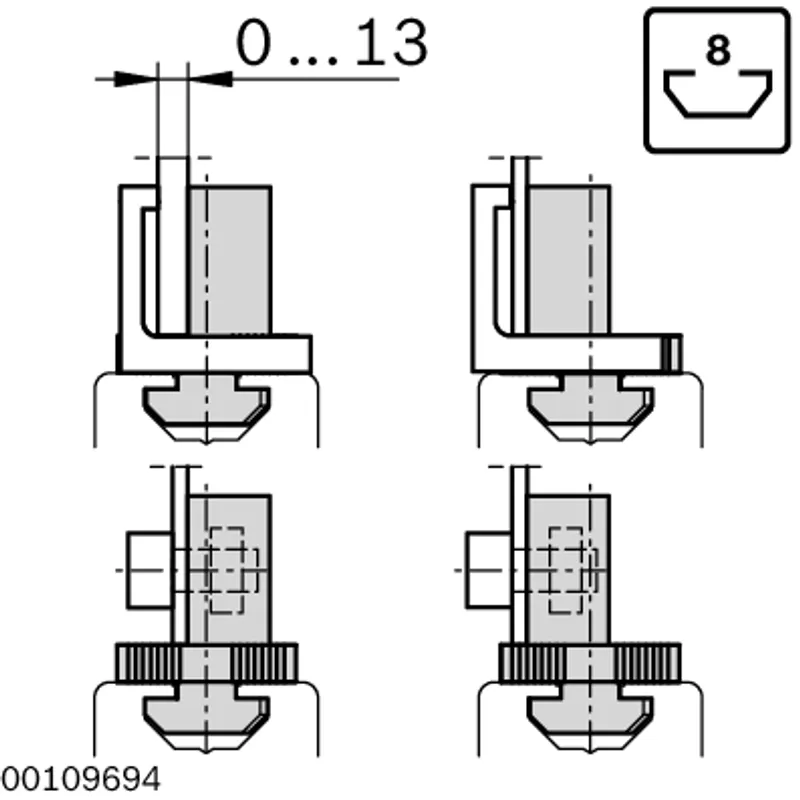

For surface elements with a thickness of up to 13 mm

For subsequent installation in closed frame constructions

Asymmetrical form enables surface elements to be fastened in two different positions

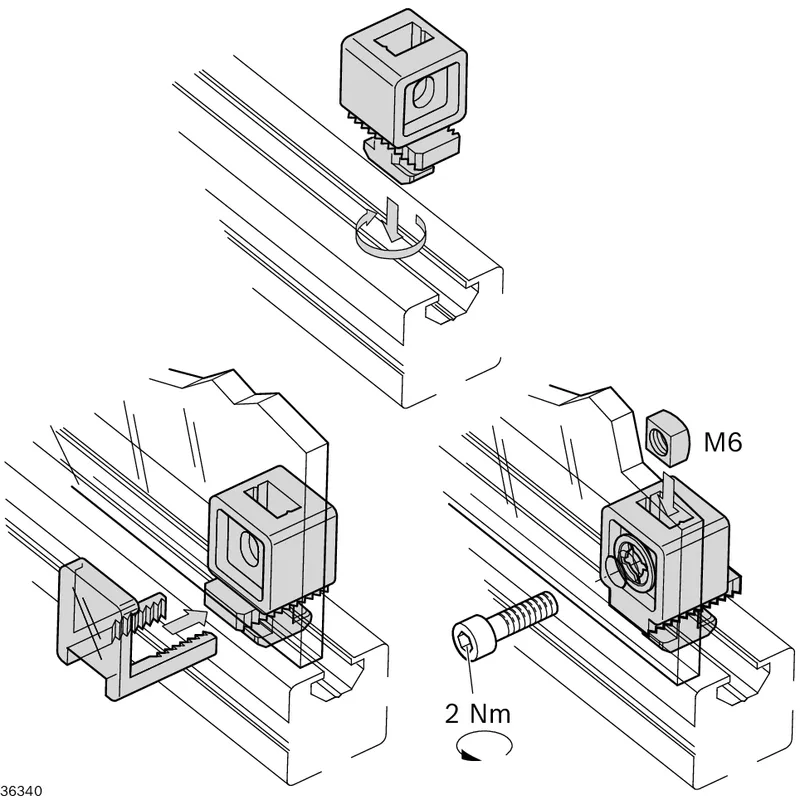

Clamping with snap-in clip or screw fitting with square nut M6 (included in scope of delivery) and screw

Retainer ring for connecting the screw to the surface element (Machinery Directive 2006/42/EC)

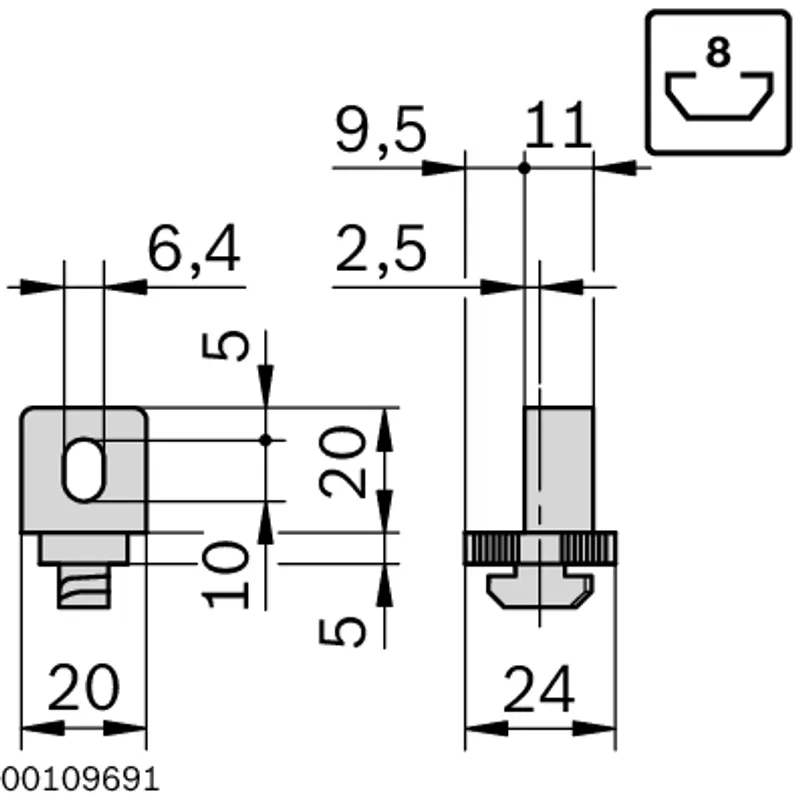

Specifications

Profile slot	8
Color	Signal gray (RAL 7004)
Mounting type	Screws; Snap-in clip
Packaging unit	10
Scope of delivery	Incl. square nut
Material information	Square nut: Steel, galvanized
Material	PP
Required accessories	Screw M6 for fitting with square nut; Variofix remover (3842526589) for snap-in clip
Weight [kg]	0.01
